Chapter 3: Configuration and Commissioning
Note: Once a chart record is cleared, the operation cannot be undone.
Configuring the chart record sample rate
To configure the chart record sampling rate:
1. Select Communications from the Main menu, and then select Log.
2. Select Chart Record Settings.
3. Select the device that you want to view or press F1 (Go To) to search for a
device by the device address.
4. Select one of the available sampling rates (1, 5, 12, 30, or 60 seconds).
5. Press F1 (Save) to save your changes and exit to the previous screen.
6. If you have no other configuration changes to make, then press F1 (Apply)
from the Main menu or the submenu to apply the changes to the system.
Access level 4 user operation and
configuration
This access level is restricted and is reserved for authorized users trained to
perform installation tasks and upgrade the detection system. The default access
code for this level is 4444.
In addition to those tasks described in Access level 3 user operation and
configuration on page 53, this level lets you:
• Upgrade device firmware
• Customize or restore device logos

The Main menu

The Main menu for this access level is shown below.

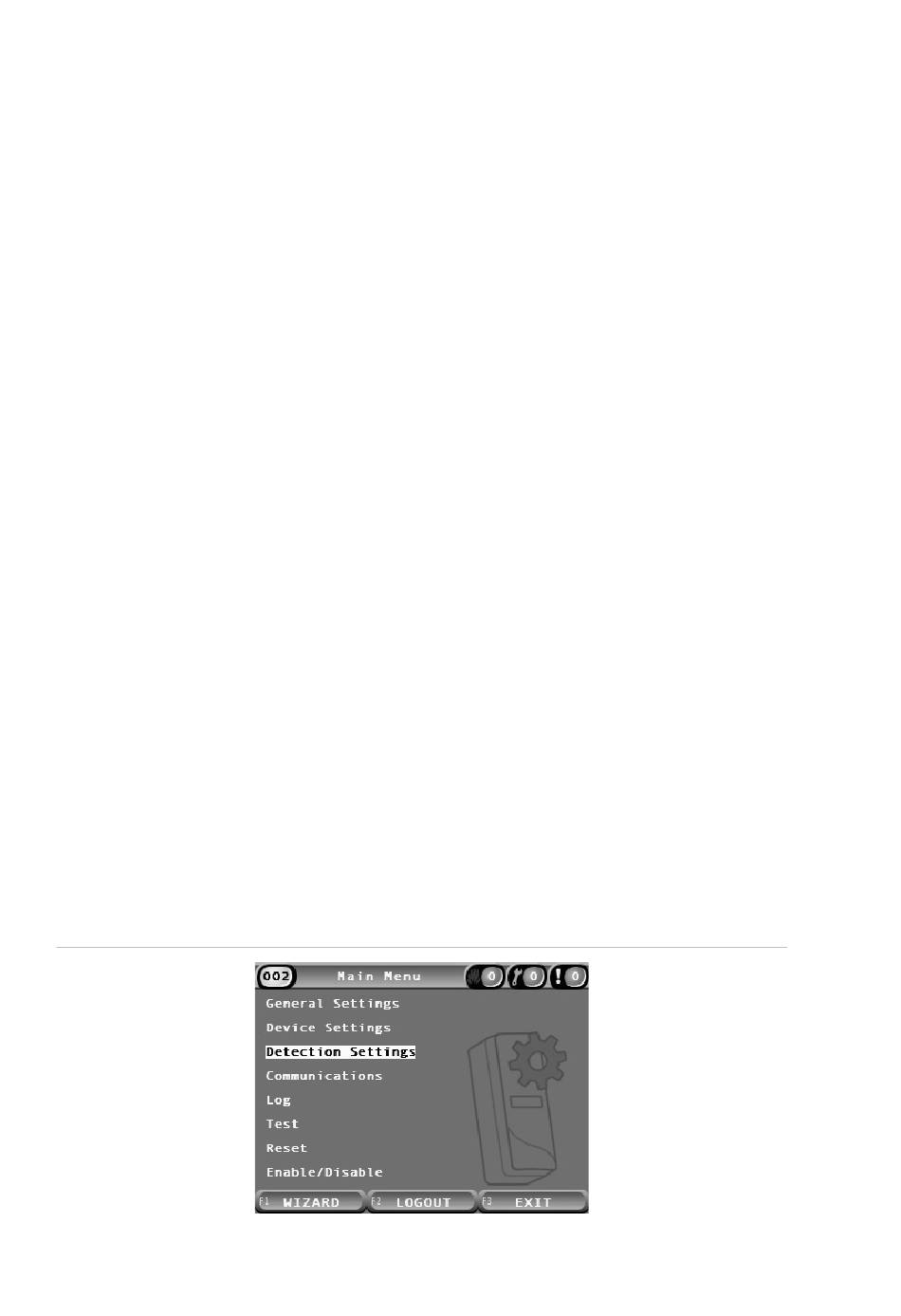

Figure 25: Access level 4 Main menu
