Chapter 3: Configuration and Commissioning
The Main menu
The Main menu for this access level is shown below.

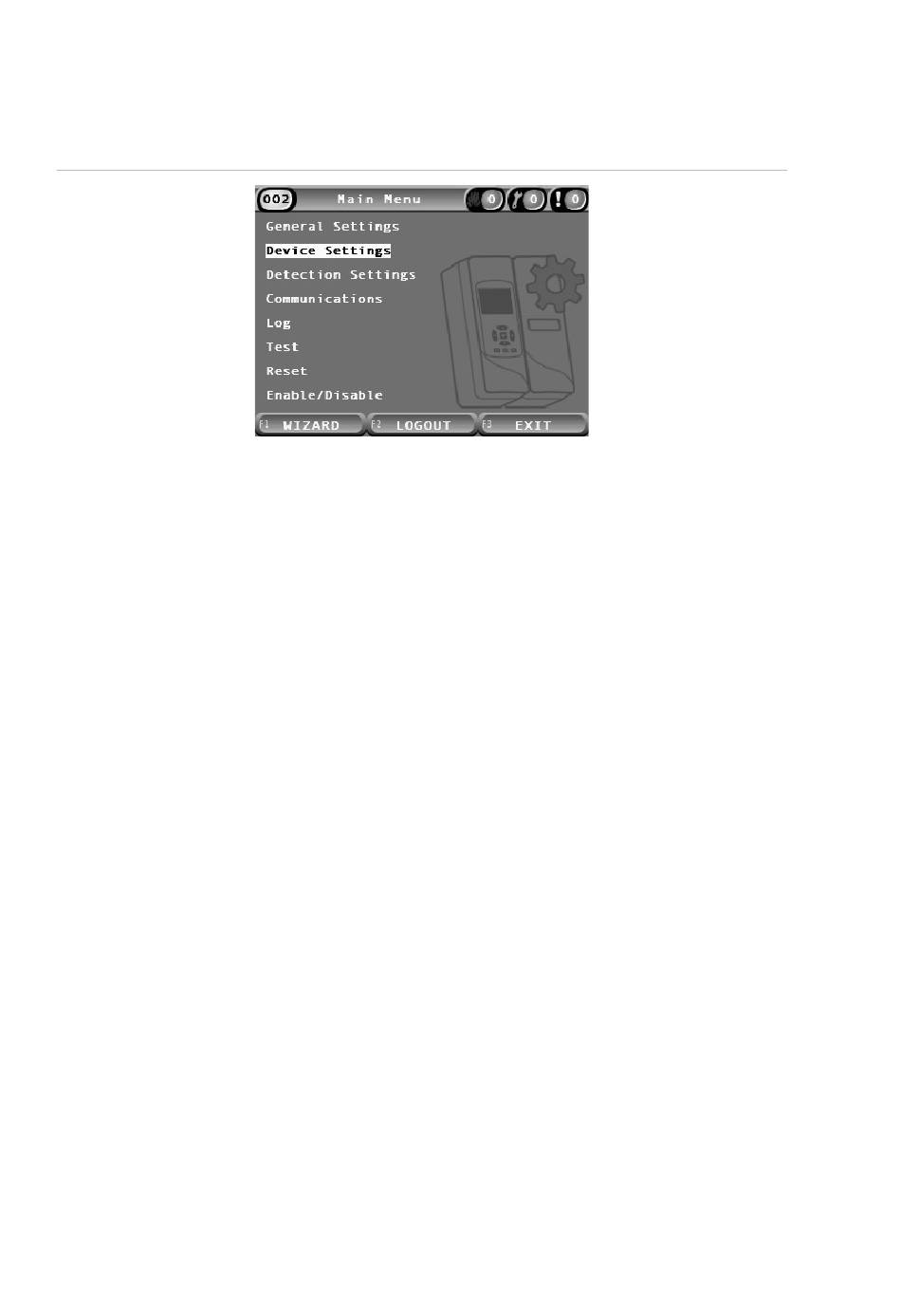

Figure 24: Access level 3 Main menu
General Settings menu
Use the General Settings menu to set the date and time.
For more information on the other options in this menu, see Access level 2 user
operation and configuration on page 41.
Changing the date and time
Use the Date and Time menu to change the date and time. When the date and
time are changed, the internal clock for all devices in the network is set to the
new values. Set these values correctly as they are used to record events in the
event log.
Note:
If the module loses power for more than 10 minutes, the last known date
and time are used the next time the module starts up.
To change the date:
1. Select General Settings from the Main menu, and then select Date and Time.
2. Select Date and enter the date in the required date format.
The configured date format is displayed above the date field but cannot be
changed from this menu. To change the date format, select General Settings
from the Main menu, and then select Localization.
3. Press F1 (Set) to save your changes and exit to the previous screen.
54
ModuLaser Modular Aspirating Smoke Detector Installation Manual
