Display module

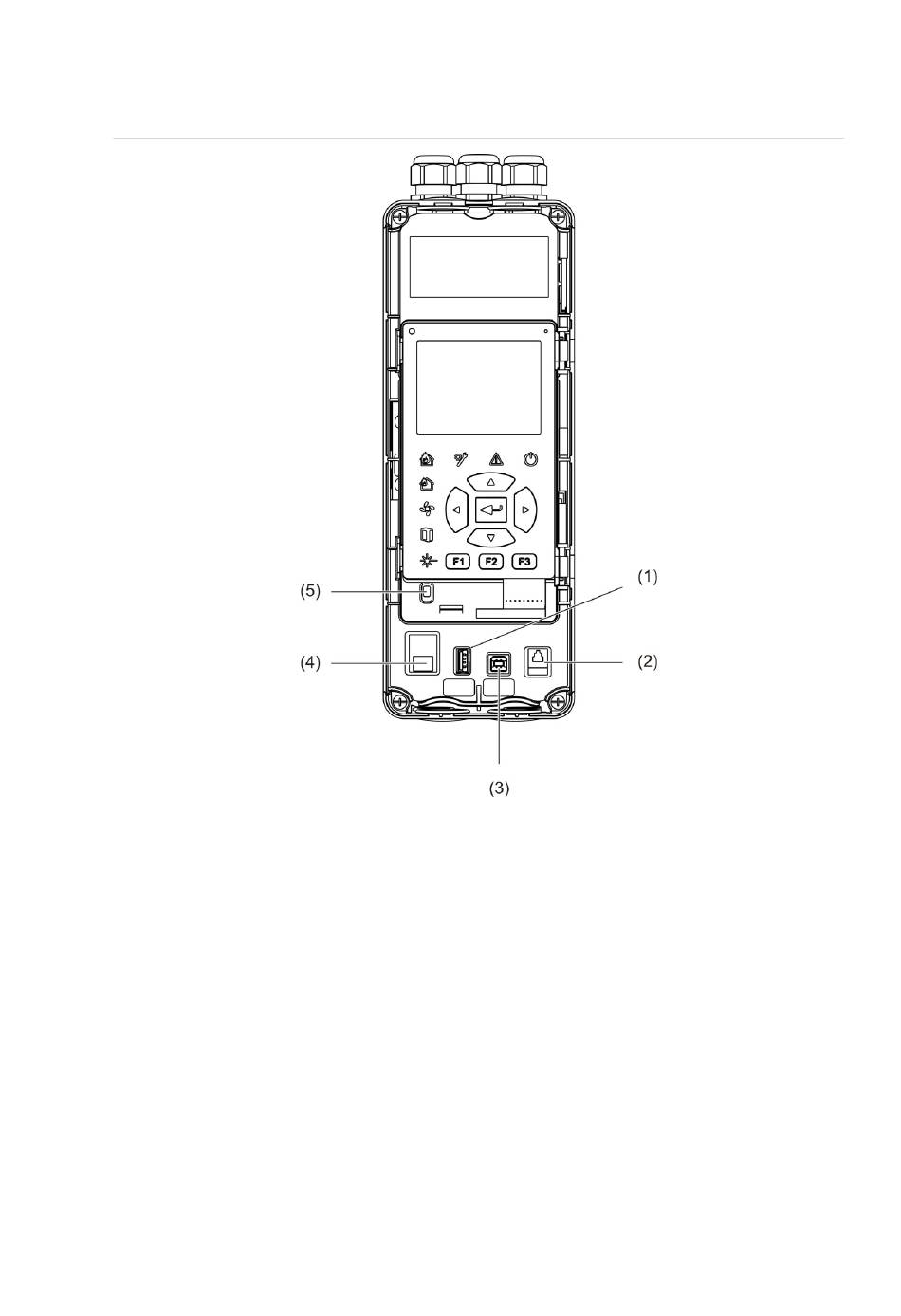

Figure 7: Display module layout
1. USB type A connector
2. RJ11 connector (see note below)
3. USB type B connector
Note:
RJ11 and Ethernet connections are not supported at this time.
ModuLaser Modular Aspirating Smoke Detector Installation Manual
4. Ethernet connector (see note below)
5. Cover sensor
Chapter 2: Installation
15
