System - TVLogic XVM-177A Operation Manual

5. Menu Operations

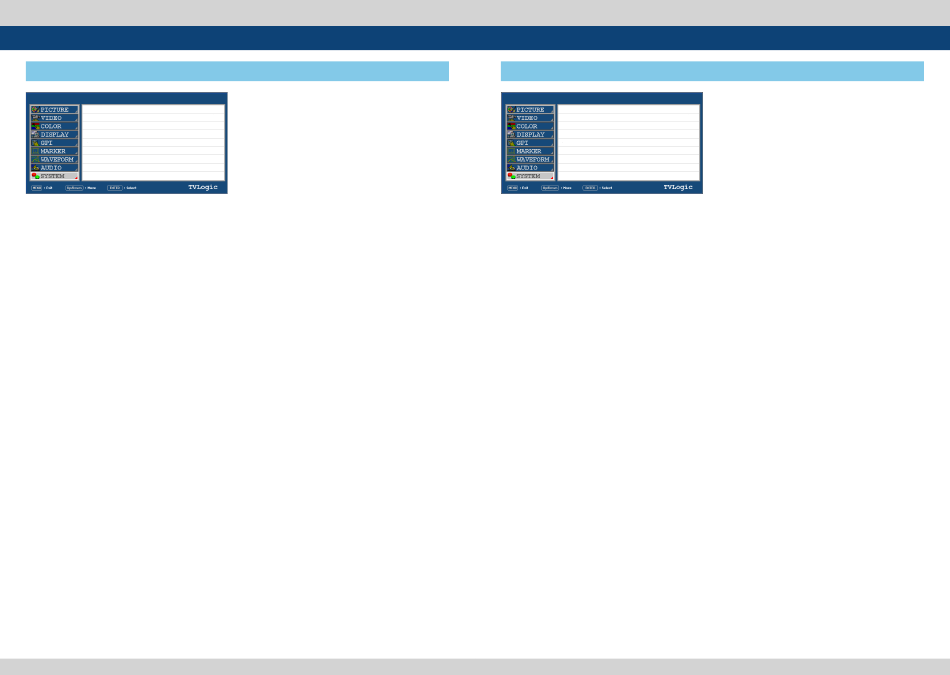

[9] SYSTEM

SDI A XVM-177A
PAGE I >> PAGE II
USER CONFIG SET USER 1
LOCK NUMBER XVM000000
LOCK ENABLE --------
OSD DISPLAY CONTINUE
OSD POSITION
INTERNAL PATTERN
SET DEFAULT
SIGNAL LOCK ENABLE
USER CONFIG SET
●
- Used to save and apply three kinds of user
configuration.
- Available modes are USER1, USER2 and
USER3.
- Assignable items for each USER1, USER2 and
USER3 settings are the [MARKER] menu of
MARKER, CENTER MARKER, SAFETY AREA,
MARKER MAT and MARKER COLOR, the
[PICTURE] menu of BRIGHT, CONTRAST,
CHROMA, PHASE and APERTURE.
LOCK NUMBER
●
- Lock number is product's serial number.
LOCK ENABLE
●
- Factory use only.
OSD DISPLAY
●
- Controls the OSD display time.
- Available values are 3 SEC, 20 SEC and
CONTINUE.
OSD POSITION
●
- Controls the OSD position.
- Available positions are Center, Right-
Top(T-R), Bottom-Right(R-B), Top-Left(L-T)
and Bottom-Left(L-B).
26 Reference Monitor
INTERNAL PATTERN
●
- This item generates internal white pattern.
- The white level select between 0% and 100%
(Per 5% increase or decrease)
L-T SET DEFAULT
●
OFF
- User can use SET DEFAULT menu to initialize
to factory setting.
- Initializes the values to 0 of BRIGHT,
CONTRAST, CHROMA, PHASE and APERTURE
of the monitor.
SIGNAL LOCK
●
- Signal Lock selects the video output by using
input signal synchronization.
- ENABLE : This function outputs the video
using input singal synchronization.
- DISABLE : This function outputs the video
using self-created synchronization.
- When the input singal or input format are
changed, the monitor will response quickly.
5. Menu Operations
[9] SYSTEM
SDI A XVM-177A
PAGE II >> PAGE III
KEY LED
KEY FUNCTION 1 ASPECT
KEY FUNCTION 2 H/V DELAY
KEY FUNCTION 3 FREEZE
KEY FUNCTION 4 WAVEFORM
KEY LOCK DISABLE
FAN CONTROL
IMAGE STICK MIN. (MIN)
KEY LED
●
- This item controls KEY LED ON/OFF.
- If the button with LED is pressed with the
KEY LED Off, LED comes on but goes off after
5 seconds later.
KEY FUNCTION 1
●
- User can select the function for [F1] button.
- Selectable functions: ASPECT, H/V DELAY,
FREEZE, WAVEFORM, TIMECODE, CC SEL,
ALM SEL., OUTPUT MODE, FAST MODE,
FILTER, FORCE Psf, UMD, COLOR TEMP, BLUE
ONLY, PAGE 801, PAGE 888 and PAGE 889.
KEY FUNCTION 2
●
- User can select the function for [F2] button.
- Selectable functions: ASPECT, H/V DELAY,
FREEZE, WAVEFORM, TIMECODE, CC SEL,
ALM SEL., OUTPUT MODE, FAST MODE,
FILTER, FORCE Psf, UMD, COLOR TEMP, BLUE
ONLY, PAGE 801, PAGE 888 and PAGE 889.
KEY FUNCTION 3
●
- User can select the function for [F3] button.
- Selectable functions: ASPECT, H/V DELAY,
FREEZE, WAVEFORM, TIMECODE, CC SEL,
ALM SEL., OUTPUT MODE, FAST MODE,
FILTER, FORCE Psf, UMD, COLOR TEMP, BLUE
ONLY, PAGE 801, PAGE 888 and PAGE 889.
KEY FUNCTION 4
●
- User can select the function for [F4] button.
- Selectable functions: ASPECT, H/V DELAY,
FREEZE, WAVEFORM, TIMECODE, CC SEL,
ALM SEL., OUTPUT MODE, FAST MODE,
FILTER, FORCE Psf, UMD, COLOR TEMP, BLUE
ONLY, PAGE 801, PAGE 888 and PAGE 889.
KEY LOCK
●
- This item locks all buttons on the front
ON
panel except power, input select, and menu
buttons.
FAN CONTROL
●
- This item toggles Fan Operation Control ON/OFF.
ON
OFF
IMAGE STICK MIN. (MIN)
●
- This item minimizes the image sticking by
reducing the screen brightness by 50% when
the video is stopped based on this set value
(in minutes).
- Value Range: Steps of 5 minutes increment
from OFF ~ 30 minutes.
Reference Monitor 27
