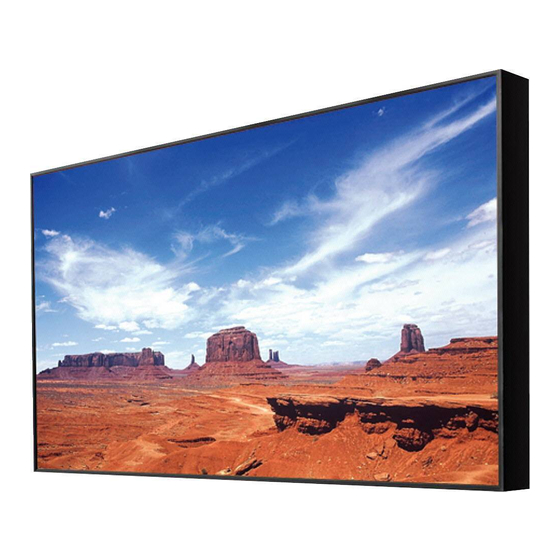

TVLogic FCM-461W Operation Manual
  1. Manuals
  2. Brands
  3. TVLogic Manuals
  4. Monitor
  5. FCM-461W
  6. Operation manual

TVLogic FCM-461W Operation Manual

Lcd flat cube display monitor dvi/hdmi lcd monitor
Hide thumbs

Advertisement

Table of Contents

LCD FLAT Cube Display Monitor
DVI/HDMI LCD Monitor
FCM-461W
FCM-462W
LHM-400W
LHM-460W
LHM-550W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FCM-461W and is the answer not in the manual?

Questions and answers

Related Manuals for TVLogic FCM-461W

Summary of Contents for TVLogic FCM-461W

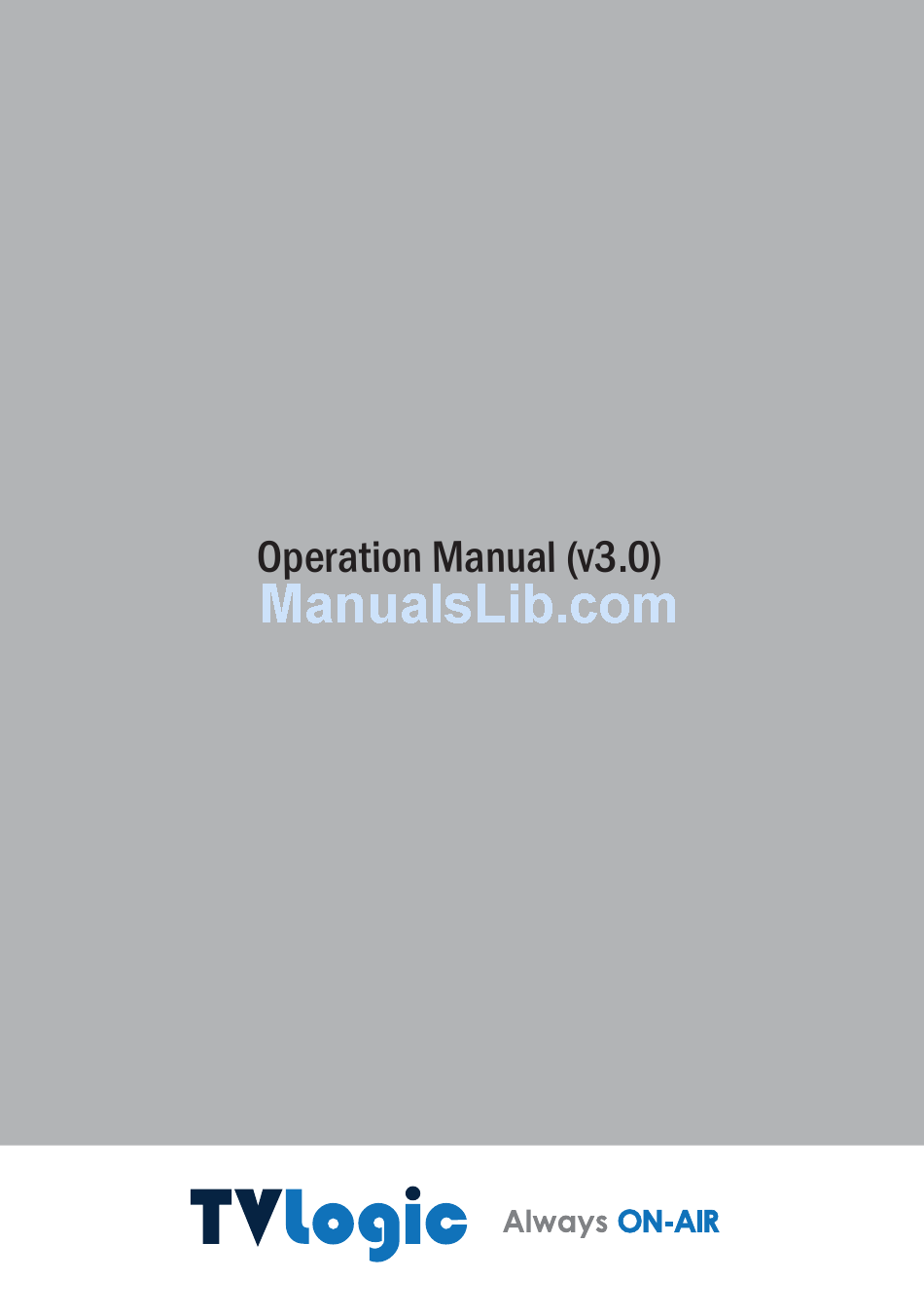

  • Page 1 LCD FLAT Cube Display Monitor DVI/HDMI LCD Monitor FCM-461W FCM-462W LHM-400W LHM-460W LHM-550W...

  • Page 3: Table Of Contents

    Contents Caution Main Features Controls & Functions Remote Controller Remote Control Box Menu Operations What is ‘PRESET’ How to set ‘PRESET’ DVI/HDMI Input Singal Format Optional Accessories...

  • Page 4: Caution

    Caution Always use set voltage. AC 100~240V If any of the following conditions occurs, unplug the power cord from the DC outlet, and request All operating instructions must be read and a qualified service person to perform repairs. understood before the product is operated. a.
  • Page 5 Caution When mounting the product on a wall or ceiling, Sudden stops, excessive force and uneven be sure to install the product according to the floor surface can cause the product to fall from method recommended by the manufacturer. the cart. Unplug the power cord from the DC outlet The vents and other openings in the before cleaning the product.

  • Page 6: Main Features

    Main Features FCM Series Monitor contains the following features: Product Highlights Each monitor undergoes an automatic FCM monitors are designed from the closed-loop color calibration in the factory ground up to be a multi panel video wall. for superb panel-to-panel color matching. However, if necessary, FCM monitors can 24/7 operation starts with an extremely be recalibrated in the field.
  • Page 7 Main Features FCM Series Monitor LHM Series Monitor Incredible Features TVLogic LHM series monitor is designed for Industry leading, high resolution broadcast multi-viewer system large-screen WXGA 1366x768(FCM-461W) & Native LCD display and digital signage solutions. The 1920x1080(FCM-462W)pixels screen. (16:9 screen performance of LHM series brings high...

  • Page 8: Controls & Functions

    Controls & Functions BUTTONS & INPUTS (FCM-461W) SILK PRINT PRODUCT - REAR RS232(DB-9) ~AC IN & S/W Input connector for FACTORY PGM allowing - Used to supply AC power & Power On/Off. for firmware updates. [STANDBY] button SDI(BNC) IN/OUT - STANDBY On/Off.
  • Page 9 Controls & Functions BUTTONS & INPUTS (FCM-462W) SILK PRINT PRODUCT - REAR SDI(BNC) IN [STANDBY] Button - Input connection for HD/SD SDI - STANDBY On/Off RS-422 IN/OUT (RJ-45) [LED] indicator - Indicating monitors current status - Input connection for RS-422Z - If the signal is normal, LED light is Green.
  • Page 10 Controls & Functions BUTTONS & INPUTS (LHM-FRONT) MENU POWER DOWN ENTER [STANDBY] button - STANDBY On/Off [LED] indicator - Indicating monitors current status - If the signal is normal, LED light is Green. - If the power is off, LED light is Red. - If No Video, LED light is Yellow.
  • Page 11 Controls & Functions BUTTONS & INPUTS (LHM-REAR) ~AC IN & S/W SDI(Option) RS-485 OUT RS-485 IN HDMI PGM (DB-9) - Input connector for FACTORY PGM allowing for firmware updates. VGA (DB-15) - Input connection for Analog VGA DVI (DVI-D) - Input connection for DVI HDMI (HDMI) - Input connection for HDMI SDI (Option)

  • Page 12: Remote Controller

    - Used to confirm a chosen value (or mode) when using OSD menu or direct mode selection. MENU ENTER - Used to select desired input modes. (FCM-461W - In the order of [DVI]-[HDMI]- DOWN [VGA]-[SDI]-[COMPOSITE]-[SVIDEO]- [COMPONENT]) (FCM-462W - In the order of [DVI]-[HDMI]- [VGA]-[SDI])

  • Page 13: Remote Control Box

    Remote Control Box BLOCK DIAGRAM [ID] 1 [ID] 2 [ID] 3 [ID] n Remote Control box Remote control box is to control the monitors with one remote control device. POWER [Setting and Connection] 1. Set the monitor ID of each monitor. ([SetUP]->[SetID] setting of OSD menu) 2.

  • Page 14: Menu Operations

    Menu Operations [1] Image Settings [1] Image Settings (VGA) Brightness Brightness - This Item controls the degree of brightness This item controls the degree of brightness between MIN(0) and MAX(100). between MIN(0) and MAX(100). - Brightness can be adjusted by using the Brightness can be adjusted by using the [DOWN]/[UP] buttons.
  • Page 15 Menu Operations [1] Image Settings (VGA) Control the position (H/V) of the image. Press the [ENTER] button to select the H/V Mode, then use [UP]/[DOWN] button to change the position of the image. Color Temp - This item controls Color Temperature with presets of 3200K, 5600K, 6500K, 9300K and User1, User2, User3 mode.
  • Page 16 Menu Operations [2] Display Settings Aspect Ratio Gap Comp. This item controls the aspect ratio. [Full Used to select the gap compensation Screen]/[One To One] mode. between the panels. ([On]-[+3mm]-[Off]) [One to One] : If the input resolution is larger [On] –...
  • Page 17 Menu Operations [2] Display Settings Landscape Mode 1x1 Mode 2x2 Mode 3x3 Mode 4x4 Mode 5x5 Mode 6x6 Mode ----------------------------------------------------------------------------------------------------- Portrait Mode 1x3 Mode 2x6 Mode * Assign the position for each monitor in Select Position Menu.
  • Page 18 MIN(0) and MAX(100). Moving Automatically detects in the order of speed is per 10 minutes. FCM-461W : VGA -> DVI -> HDMI -> SDI -> Composite -> S-Video -> Component Internal IR FCM-462W : DVI -> HDMI -> VGA -> SDI Used to activate/deactivate the internal IR LHM-Series : DVI ->...
  • Page 19 Menu Operations [4] Information Source Input Shows the current input source. (FCM-461W : DVI, HDMI, SDI, VGA, Composite, S-Video, Component) (FCM-462W : DVI, HDMI, VGA, SDI) (LHM-Series : DVI, HDMI, VGA, SDI(option)) Input Resolution Shows the resolution of current input. (H,V...
  • Page 20 Button Functions Input Select OSD (FCM-461W) Input Select OSD (FCM-462W/LHM) * LHM-Series Option Press [ENTER] button to toggle through the Press [ENTER] button to toggle through the input modes when OSD menu is inactive. input modes when OSD menu is inactive.

  • Page 21: What Is 'Preset

    - ‘PRESET’ has many kinds of information as follows : 1) Input Source FCM-462W : VGA, DVI, HDMI, SDI(OPTOION) FCM-461W : VGA, DVI, HDMI, COMPONENT, CVBS & S-VIDEO, SDI(OPTION) 2) Select Matrix Multi-Vision Selection Mode : 1x1, 2x2, 3x3 ……up to 6x6.

  • Page 22: How To Set 'Preset

    How to set 'PRESET' (1) (FCM Only) Settings [1] Image Settings (VGA) ID Setting Setting Multi-Vision for each monitors You must set ID for each monitor in order to avoid doubling the same ID. 1) Select ‘INPUT’ source. 2) Choose ‘Select Matrix’. 3) Choose ‘Select Position’.
  • Page 23 How to set 'PRESET' (2) (FCM Only) You will be able to save formation of ‘PRESET’ Occupied from 1~20. There is a information saved previously. You will be able to ‘save’ and ‘execute’ as it Empty is shown below. There is no information saved. If you press ‘Enter’...
  • Page 24 How to set 'PRESET' (3) (FCM Only) Operation Using IR Control Box Press Menu button from RCU to bring OSD menu of the monitor. Press ‘All’ button to select all monitor from the RCU then, go to ‘Display Setting’ to execute saved information.

  • Page 25: Dvi/Hdmi Input Singal Format

    DVI/HDMI Input Signal Format GRAPHIC MODE Resolution Resolution (kHz) (Hz) (kHz) (Hz) 640 x 350 60Hz 31.469 59.941 1024 x 768 70Hz 56.476 70.069 640 x 350 70Hz 31.469 70.086 1024 x 768 75Hz 60.023 75.029 640 x 350 85Hz 31.469 85.081 1024 x 768 85Hz...
  • Page 26 DVI/HDMI Input Signal Format GRAPHIC MODE Resolution Resolution (kHz) (Hz) (kHz) (Hz) 640 x 350 60Hz 31.469 59.941 1024 x 768 70Hz 56.476 70.069 640 x 350 70Hz 31.469 70.086 1024 x 768 75Hz 60.023 75.029 640 x 350 85Hz 31.469 85.081 1024 x 768 85Hz...
  • Page 27 Product Specifications LHM-400W LHM-460W LHM-550W Size 40” 46” 55” Resolution 1920 x 1080 (16 : 9) 1920 x 1080 (16 : 9) 1920 x 1080 (16 : 9) Pixel Pitch 0.461(H) X 0.461(W) mm 0.530(H) X 0.530(W) mm 0.21(H) x 0.21(W) mm Color Depth 16.7 M (True 8 bit) 1.06 Billion,10bit (FRC)
  • Page 28 Product Specifications FCM-461W FCM-462W Size 46” 46” Resolution 1366×768 1920×1080 Pixel Pitch 0.7455 mm 0.53025 mm Color Depth 16.7M (True 8bit) 16.7M (True 8bit) Viewing Angle H : 178 degrees / V : 178 degrees H : 178 degrees / V : 178 degrees...

  • Page 29: Optional Accessories

    FCM Series Optional Accessories VIDEO WALL STAND...
  • Page 30 Memo...
  • Page 31 Memo...
  • Page 32 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 345-4 Gasan-dong, Geumcheon-gu, Seoul, 153-802, KOREA TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr...
