5. Menu Operations
[6] MARKER
SDI A XVM-177A
PAGE II >> PAGE I
USER MARKER H1
USER MARKER H2
USER MARKER V1
USER MARKER V1
USER MARKER H1
●
- Used to control the position of the first user
defined horizontal marker line.
- Marker option USER needs to be selected.
USER MARKER H2
●
- Used to control the position of the second
user defined horizontal marker line.
- Marker option USER needs to be selected.
USER MARKER V1
●
- Used to control the position of the first user
defined vertical marker line.
- Marker option USER needs to be selected.
USER MARKER V2
●
- Used to control the position of the second
user defined vertical marker line.
- Marker option USER needs to be selected.
22 Reference Monitor

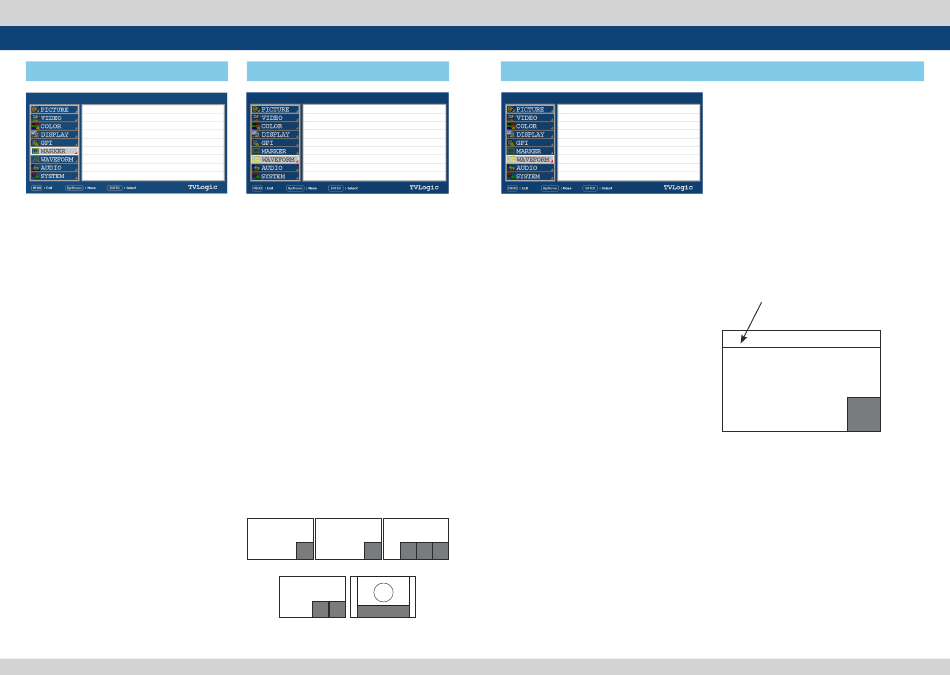

[7] WAVEFORM

SDI A XVM-177A
PAGE I >> PAGE II
MIN WAVEFORM/VECTOR
MIN WAVEFORM INTENSITY
MIN WAVEFORM TRANS
MIN WAVEFORM SIZE
LINE WAVEFORM ENABLE
LINE POSITION SELECT
LINE POSITION DRAW
WAVEFORM/VECTOR
●
- Used to set the Waveform and Vectorscope.
- This feature is available in SDI, COMPOSITE
1/2/3, S-VIDEO, COMPONENT modes.
- Selectable features: OFF, WAVEFORM,
VECTOR, YCbCr, MODE 1(WAVEFORM +
VECTORY), MODE 2(VECTOR + Y/Cb/Cr),
WIDE-Y
- Displays on the bottom right of the screen
and moves above the UMD, if UMD feature is
selected.
* WAVEFORM : Displays the shape and form of
luminance level of a signal.
* VECTOR : Displays color components B-Y and
R-Y of the input signals on the XY axis.
HD and SD inputs are classified into two
kinds, depending on the input. 100% and
75% scales indicated on a display.
* Y/Cb/Cr : Displays each Waveform for
elements of the luminance and Cb/Cr of the
input signal.
* RGB : Displays each Waveform for elements
of the Red, Green and Blue of the input
signal.
* W+V : Displays waveform and vector scope
simultaneously.
* WIDE-Y : Stretches the waveform to fit width
of the screen and displays it on the bottom
of the screen.
WAVE VEC
FORM TOR
<WAVEFORM> <VECTOR>
VEC WAVE
TOR FORM WAVEFORM
<WAVE+VECTOR> <WIDE Y>
5. Menu Operations
[7] WAVEFORM
SDI A
OFF WAVEFORM/VECTOR
OFF WAVEFORM INTENSITY
OPAQUE WAVEFORM TRANS
NORMAL VECTOR GAIN X 4
OFF LINE WAVEFORM ENABLE
0 LINE SELECT POSITION
OFF LINE SELECT DRAW
WAVEFORM COLOR
WAVEFORM INTENSITY
●
- Used to control the brightness of the
WAVEFORM/VECTOR display.
- Available values are between 0 ~ 30. The
higher the number the brighter the
Waveform will be.
WAVEFORM TRANS
●
- Used to control the transparency level of the
WAVEFORM/VECTOR.
- Available values are OPAQUE and TRANS.
* If the option is set to OPAQUE, the main OSD
will overlap with the WAVEFORM/VECTOR.
However, it will automatically display it as
transparent and goes back to opaque if the
main OSD disappears.
VECTOR GAIN X4
●
- Used to increase the value of the Vectorscope.
LINE SELECT ENABLE
●
- Used to select specific Vertical Line for
Waveform/Vectorscope.
Y/R Cb/G Cr/B
<YCbCr/RGB>
XVM-177A LINE SELECT POSITION
●
PAGE I >> PAGE II - In WAVEFORM/VECTOR, use the Up/Down
OFF
button to select User's desired line.
OFF
OPAQUE
LINE SELECT DRAW
NORMAL
●
OFF
- ON/OFF the line indication for line select
0
feature.
OFF
- Activates only when the LINE SELECT ENABLE
GREEN
feature is enabled.
- When this item is set to OFF, the Line
Waveform still displays if LINE WAVEFORM is
enabled.
WAVEFORM COLOR
●
- This item cselects the color of Waveform/
Vectorscope.
- Available options are WHITE and Green.
Position changes if the value
changes in LINE SELECT option
and the waveform of the selected
position displays.
WAVEFORM/VECTOR : WAVEFORM
LINE POSITION SELECT : ON
LINE POSITION DRAW : ON
WAVE
FORM
Reference Monitor 23
