5. Menu Operations
[5] GPI

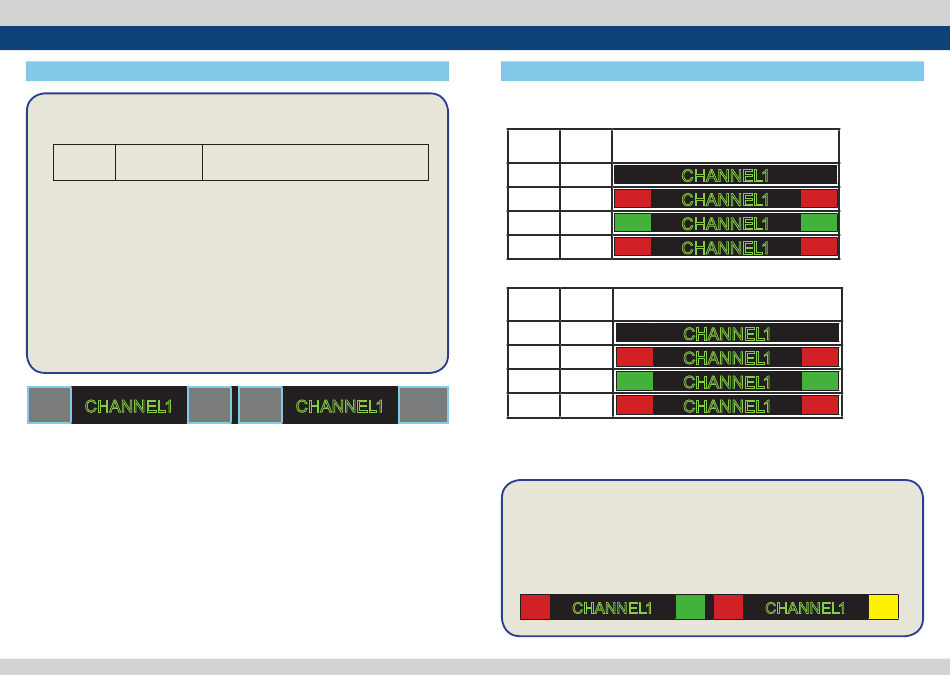

<Dynamic UMD Protocol (TSL V3.1)>
* Transmission (18 Byte) (PC or Device -> Monitor)
HEADER CONTROL
(1 BYTE) BYTE(1 BYTE)
* [HEADER] : Display address (0~126) + 80 hex.
* [CONTROL BYTE]
bit 0 : Tally 1 (1=on, 0=off)
bit 1 : Tally 2 (1=on, 0=off)
bit 2 : Tally 3 (1=on, 0=off)
bit 3 : Tally 4 (1=on, 0=off)
bit 4 : bright data (Not used)
bit 5 : bright data (Not used)
bit 6 : reserved (Not used)
bit 7 : cleared to 0 (Not used)
* [DISPLAY DATA] : 16 displayable ASCII characters.
CHANNEL1
Tally1 Tally2
18 Reference Monitor
DISPLAY DATA
(16 BYTE)
CHANNEL1
Tally3 Tally4
5. Menu Operations
[5] GPI
Tally Type - Default
●
- S-8C(Single 8 Character) & S-16C(Single 16 Character)
Bit 1 Bit 1
(Tally2) (Tally1)
0 0
0 1
1 0
1 1
- D-8C(Dual 8 Character)
Bit 1 Bit 1
(Tally4) (Tally3)
0 0
0 1
1 0
1 1
D-UMD TALLY TPYE – USER COLOR
●
- Color selections between TALLY1 ~ TALLY4.
The following appearance of UMD DISPLAY is set as D-UMD(D-8C), D-UMD TALLY TYPE
and TALLY1 ~ TALLY4 COLOR.
D-UMD TALLY TYPE
TALLY1 COLOR
TALLY2 COLOR
TALLY3 COLOR
TALLY4 COLOR
CHANNEL1
Operation
CHANNEL1
CHANNEL1
CHANNEL1
CHANNEL1
Operation
CHANNEL1
CHANNEL1
CHANNEL1
CHANNEL1
USER COLOR
RED
GREEN
RED
YELLOW
CHANNEL1
