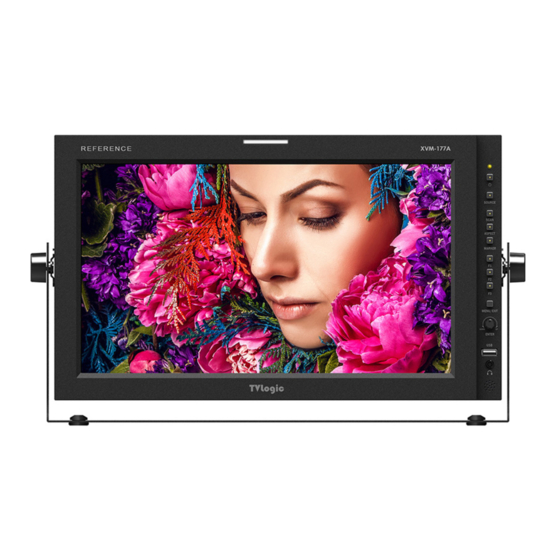

TVLogic XVM-177A Operation Manual

Multi format fhd lcd reference monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Multi Format
LCD Monitor
FHD LCD Reference Monitor
XVM-177A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XVM-177A and is the answer not in the manual?

Questions and answers

Related Manuals for TVLogic XVM-177A

Summary of Contents for TVLogic XVM-177A

  • Page 1 Multi Format LCD Monitor FHD LCD Reference Monitor XVM-177A...

  • Page 2: Table Of Contents

    Contents ................1. Caution ..............2. Main Features .............. 3. Controls & Functions ............4. Menu Tree & Adjustment ..............5. Menu Operations ................. [1] PICTURE ................[2] VIDEO ................[3] COLOR ................. [4] DISPLAY ................[5] GPI ................. [6] MARKER ..............

  • Page 3: Caution

    1. Caution 1. Caution Always use set voltage. • If any of the following conditions occurs, unplug • When mounting the product on a wall or ceiling, • Sudden stops, excessive force and uneven ● the power cord from the DC outlet, and request be sure to install the product according to the floor surface can cause the product to fall from AC 100 ~ 240V (1.6A/50~60Hz)

  • Page 4: Main Features

    2. Main Features 3. Controls & Functions POWER SOURCE SCAN XVM-177A Monitor contains the following features : XVM-177A : FRONT ASPECT MARKER Compatible with various SDI signals AC/DC Compatible ● ● formats - Essentially, this product is powered by a...
  • Page 5 TVLogic. - Used to change the various display ratio COMPONENT Pr and RGB R signals. - Used to control the monitor with protocol between 4:3 and 16:9. provided by TVLogic or to support TSL [AUDIO OUT] protocol. [HDMI(HDCP)] (HDMI) ●...

  • Page 6: Menu Tree & Adjustment

    - Used to adjust the BLUE value from 0 to 255. VGA H POSITION ● - Activates only when the FOCUSS ASSIST B. Model name(XVM-177A). - Used to control the horizontal position of C. Current input signal. COLOR is set to USER.

  • Page 7: Menu Operations

    5. Menu Operations 5. Menu Operations [3] COLOR [2] VIDEO SDI A XVM-177A SDI FORMAT SDI A XVM-177A BIAS RED ● ● - Used to select the SDI input format between - Used to adjust black level to control red FILTER PAGE I >>...

  • Page 8: Color

    5. Menu Operations 5. Menu Operations [3] COLOR [4] DISPLAY SDI A XVM-177A SD COLOR SPACE SDI A XVM-177A SDI A XVM-177A ● - Used to set the color space for the SD video PAGE II >> PAGE I PAGE I >> PAGE II PAGE II >>...

  • Page 9: Gpi

    TALLY G, CONTROL mode. The user may connect - Used to control several monitors in a group UNDER SCAN, for the TVLogic control protocol using RS- RJ-45 jack to the REMOTE terminal on the REMOTE CONTROL 1:1 SCAN, ASPECT, ●...
  • Page 10 5. Menu Operations 5. Menu Operations [5] GPI [5] GPI Tally Type - Default ● <Dynamic UMD Protocol (TSL V3.1)> - S-8C(Single 8 Character) & S-16C(Single 16 Character) * Transmission (18 Byte) (PC or Device -> Monitor) Bit 1 Bit 1 Operation (Tally2) (Tally1)

  • Page 11: Marker

    Aspect ratio signal ● ● - This item controls the thickness of the - Used to set the IP address of TVLogic’s in the video signal will be extracted and UMD FONT TYPE MARKER lines. The degrees of thickness are Controller (RMU Series).

  • Page 12: Waveform

    5. Menu Operations 5. Menu Operations [6] MARKER [7] WAVEFORM [7] WAVEFORM SDI A XVM-177A SDI A XVM-177A SDI A XVM-177A LINE SELECT POSITION ● PAGE II >> PAGE I PAGE I >> PAGE II PAGE I >> PAGE II...

  • Page 13: Audio

    5. Menu Operations 5. Menu Operations [7] WAVEFORM [8] AUDIO SDI A XVM-177A Y PICTURE BLINK LEVEL METER POSITION SDI A XVM-177A ● ● PAGE II >> PAGE I - Used to trigger selections of image that LEVEL METER SELECT...

  • Page 14: System

    5. Menu Operations 5. Menu Operations [9] SYSTEM [9] SYSTEM INTERNAL PATTERN KEY LOCK SDI A XVM-177A SDI A XVM-177A ● ● PAGE I >> PAGE II - This item generates internal white pattern. PAGE II >> PAGE III - This item locks all buttons on the front...
  • Page 15 5. Menu Operations 5. Menu Operations [9] SYSTEM [9] SYSTEM SDI A XVM-177A SDI A XVM-177A SDI A XVM-177A PAGE III >> PAGE IV PAGE IV >> PAGE V PAGE V >> PAGE I DEVICE COPY DATA BOARD VERSION 0101 1306 4.00 9...

  • Page 16: Firmware Upgrade & Color Calibration

    2. Set the [DEVICE] as the Color Probe which PBP MODE <Warning!!> will be connected. SDI-A When using SOURCE mode, always check SDI A XVM-177A SDI A XVM-177A the input method and modify the setting as SDI-B PAGE IV >> PAGE V PAGE III >> PAGE IV needed for optimized output results.
  • Page 17 7. Other Functions 7. Other Functions [2] ASPECT [3] SCAN [3] SCAN 1. Four different aspect modes are available. This product supports various scan modes. 3. The following represents the different - 1:1 SCAN : 1:1 pixel mapping of original ●...

  • Page 18: Dvi / Hdmi Support Resolution

    ● ● function. Then the two images will be Function Key. displayed in the monitor. In Normal Screen - XVM-177A has 4 functions keys(F1~F4). Resolution Frequency (when an individual screen is not selected in PBP mode), key function and OSD 1.

  • Page 19: Product Specifications

    9. Product Specifications 10. Optional Accessories Size 16.5” Resolution 1920 X 1080 Pixel Pitch 0.1905(H) X 0.1905(W) mm Color Depth 10-bit 1.07B color Viewing Angle R/L, U/D 178degrees Luminance of white 450 cd/ m Contrast Ratio 1400 : 1 Display Area 365.8(H) X 205.7(V) mm 1 X DVI-I DVI IN...
  • Page 20 MEMO 38 Reference Monitor...
