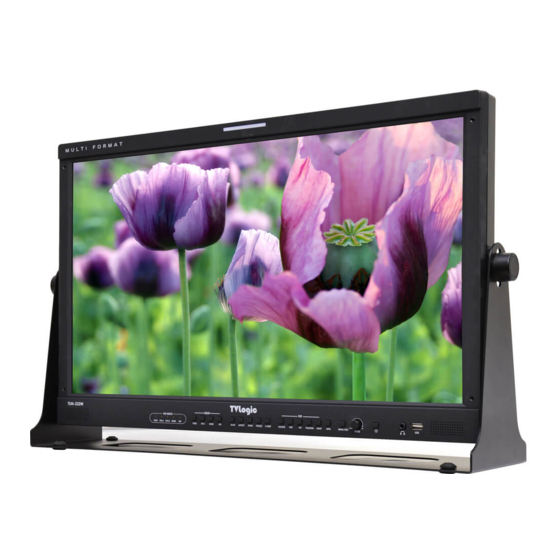

TVLogic LQM-241W Operation Manual

24” integrated multi format hd quad input monitors
Hide thumbs Also See for LQM-241W:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
Multi Format

LCD MONITOR

Operation Manual

24" Integrated multi format HD Quad input monitors
LQM-241W
MULTI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LQM-241W and is the answer not in the manual?

Questions and answers

Related Manuals for TVLogic LQM-241W

Summary of Contents for TVLogic LQM-241W

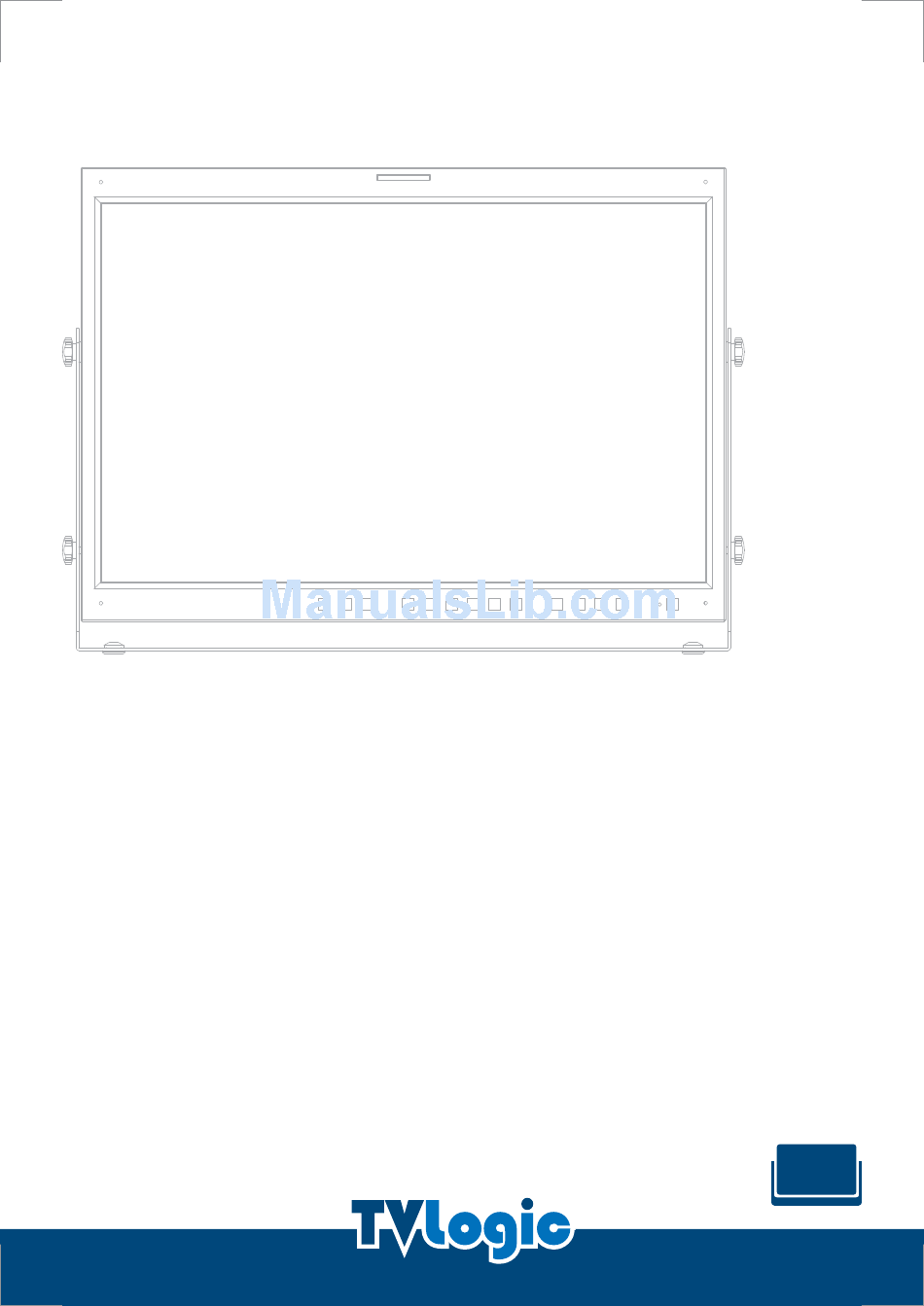

  • Page 1: Lcd Monitor

    Multi Format LCD MONITOR Operation Manual 24” Integrated multi format HD Quad input monitors LQM-241W MULTI...

  • Page 3: Table Of Contents

    Contents CAUTION FEATURES NAME & FUNCTION OF EACH PART MENU ORGANIZATION & ADJUSTMENT MENU CONTENTS OTHER FUNCTIONS PRODUCT SPECIFICATION PRODUCT LINEUP OPTIONAL ACCESSORIES FCC (Federal Communications Commission) This equipment has been tested and found to comply with the limits for class A digital device, pursuant to part 15 of the FCC Rules.

  • Page 4: Caution

    QM-241W Caution ALWAYS USE SET VOLTAGE. AC 100 ~ 240V (1.6A/50~60HZ), DC 24V (TYP 3.2A) [ONLY LQM-241W] All operating instructions must be read and understood before the product is operated. These safety and operating instructions must be kept in safe place for future reference.
  • Page 5 LQM-241W Caution In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

  • Page 6: Features

    Slim and all-in-one type monitor that requires no other accessory, for optimized space utilization. Wide Screen compatible Wide Screen for easier monitoring conditions. AC/DC compatible The product may be powered by normal AC source, but also 24V DC(LQM-241W) Remote control function Remote-controlled simply with cable connection without additional peripheral equipment attached to unit.

  • Page 7: Name & Function Of Each Part

    LQM-241W QM-241W Name & Function of Each Part FRONT TALLY L L MENU DOWN/BRIGHT UP/CONTRAST ENTER/VOLUME POWER CHROMA/PHASE/SCREEN SEL BLUE ONLY/MONO H/D DELAY ANALOG MARKER MODE ASPECT QUAD SCAN [ANALOG] button/lamp - Used when ANALOG INPUT is selected. Sub Menu for analog input menu-selection appears.
  • Page 8 LQM-241W QM-241W Name & Function of Each Part [BLUE ONLY / MONO] button/lamp - You may remove R(red) and G(green) from the input signal and play the screen only in B(blue) signal. And if the button hit twice, it will turn to MONO mode. (This mode use only luminance value.) [CHROMA/PHASE/SCREEN SEL] (In Single Mode) button - Used when changing the CHROMINCE and PHASE values during menu in-activation.
  • Page 9 LQM-241W Name & Function of Each Part REAR REMOTE Factory PGM 1 RS422 IN Factory PGM 2 RS422 OUT CVBS1/Y/G/S-Y CVBS2/Pb/B CVBS3/Pr/R-S-C DVI-I HDMI(HDCP) SDI-A SDI-B SDI-C AUDIO IN SDI-D AUDIO OUT DC 24V IN ~AC IN [REMOTE] (RJ-45) - It provides connector to build connection with extra equipment for monitor control.
  • Page 10 LQM-241W Name & Function of Each Part [SDI-IN A] (BNC) - SDI signal input terminal that provides A signal. [SDI-OUT A] (BNC) - SDI signal output terminal used for SDI A output. [SDI-IN B] (BNC) - SDI signal input terminal that provides B signal.

  • Page 11: Menu Organization & Adjustment

    LQM-241W Menu Organization & Adjustment The product may be controlled and set system-wise through OSD displayed on the screen. 1) Menu Organization - Below is the organization of the product’s menu. 2) Menu Control - You may control various functions using MENU, UP/DOWN and ENTER buttons on the bottom front of the monitor.

  • Page 12: Menu Contents

    LQM-241W Menu Contents [1] PICTURE PART BRIGHT This item controls the degree of brightness between MAX(50) and MIN (-50) range. CONTRAST This item controls the contrast ratio between MAX(100) and MIN(-100). CHROMA This item controls saturation between MAX(50) and MIN(-50).
  • Page 13 LQM-241W Menu Contents APERTURE This item controls the picture sharpness. Sharpness select between MIN(-1) and MAX(5). NTSC SETUP This item sets IRE value in NTSC mode between 0 IRE and 7.5 IRE. FILTER This item selects set the filter ON for smoother transitions between colors.
  • Page 14 LQM-241W Menu Contents [2] COLOR PART COLOR TEMP - This item controls COLOR TEMPERATURE and is basically compatible with 5000K, 5600K, 6500K, 9300K and USER modes. On user mode, the user may select among R,G and B values. GAIN RED - This item controls red color.
  • Page 15 LQM-241W Menu Contents [3] MARKER PART MARKER This selects the marker type when the MARKER is displayed on the screen. MARKER may only be activated by pressing the MARKER button on the front of the monitor. Compatible MARKER types are as follows:...
  • Page 16 LQM-241W Menu Contents MARKER THICKNESS This item controls the width of marker. The degrees of width are between 1 and 7. USER MARKER H1 / H2 This item controls the marker of horizontal value. USER MARKER V1 / V2 This item controls the marker of vertical value.

  • Page 17: Multi Mode

    LQM-241W Menu Contents [5] LAYOUT PART <Multi Mode> SCREEN SELECT - By using Chroma/Phase Hot-Key, user can select and control the ind dividual display in Multi Mode. - ALL SCREEN -> SCREEN 1 -> SCREEN 2 -> SCREEN 3 -> SCREEN 4.
  • Page 18 LQM-241W Menu Contents WAVEFORM/VECTOR - This item set waveform and vector scope. - When set the waveform, displays the shape and form of luminance level of a signal. And Vector scope mode, displays an X-Y plot of color signal. WAVEFORM TYPE - This item sets display type of waveform(User can’t touch this item.)
  • Page 19 LQM-241W Menu Contents AUDIO VOLUME - This item controls embedded audio volume between MIN (0) and MAX (30). AUDIO CHANNEL - This item sets embedded audio channel selects CH 1 ~ CH 16 and Off. - When multi screen mode, AUDIO outputs for SCREEN 1.
  • Page 20 LQM-241W Menu Contents CLOSED CAPTION - This item controls closed caption ON/OFF. (708, 608(LINE21), 608(ANC)) TIME CODE ENABLE - This item displays the time code.(VITC, LTC) * When multi screen mode, if the same input is displayed onto 2 or more screens, TIME CODE will be only seen on the first screen displaying the same input.
  • Page 21 LQM-241W Menu Contents AUDIO LV METER THICKNESS - This item selects the thickness of the AUDIO LEVEL METER.

  • Page 22: Other Functions

    LQM-241W Other Functions [1] ANALOG MODE USAGE This product is capable of processing all input signals usable in ANALOG mode. The ANALOG input settings are as follows: 1. Press ANALOG button on the front of the product and activate the menu below.
  • Page 23 LQM-241W Other Functions [3] DVI SUPPORT RESOLUTION DVI-ANA mode supports the following modes: Resolution Frequency 640 x 480 800 x 600 1024 x 768 720 x 400 DVI-DIG mode is separated into Graphic mode and Video mode. Graphic mode supports the below resolutions and frequencies.
  • Page 24 LQM-241W Other Functions [4] MULTI MODE USAGE 1. Use Quad key to change into Multi Screen. Then the last displayed multi screen appears. In Normal Screen(when an individual screen is not selected in multi mode), key function and OSD function apply for all display simultaneously.
  • Page 25 LQM-241W Other Functions [5] INPUT LIMIT FOR ANALOG (MULTI MODE) 1. There is a limitation for Analog input in Multi Mode. (No limitation for SDI signals) 2. There are 3xBNC for the Analog inputs. So, if the BNCs or one of the BNCs are used for an Analog already, it cannot be used for another Analog input with the same BNC.

  • Page 26: Product Specification

    LQM-241W Product Specification 1 x DVI- I DVI IN 3 x BNC Analog Input Input 4 x BNC SDI A/B/C/D Channel Input 1 x HDMI HDMI Input 3 x BNC Analog Output Output 4 x BNC SDI A/B/C/D Channel (Active Through Out)

  • Page 27: Product Lineup

    LQM-241W Product Lineup LVM-071W 1. LCD Resolution : 800 x 480 (15:9) 2. Color : 16.7M(true), 24bit 3. Contrast - 300 :1 4. Viewing Angle : H (130) / V (115) 5. Weight : 1Kg (2.2 lb) LVM-084 1. LCD Resolution : 1024 x 768 (4:3) 2.
  • Page 28 LQM-241W Product Lineup LVM-322W 1. LCD Resolution : 1366 x 768 (16:9) 2. Color : 1 Billion(true), 30bit 3. Contrast - 1100 :1 4. Viewing Angle : 178 5. Weight : 26Kg (57.3 lb) LVM-401W 1. LCD Resolution : 1920 x 1080 (16:9) 2.
  • Page 29 LQM-241W Product Lineup LQM SERIES LQM-071W 1. LCD Resolution : 800 x 480 2. Color : 16.7M(true), 24bit 3. Contrast - 300 : 1 4. Viewing Angle : H (130) / V (115) 5. Weight : 1Kg (2.2 Ib) LQM-241W 1.

  • Page 31: Optional Accessories

    Optional Accessory 7” 9” ND Filter 17” 24” 40” 7” 9” 17” 24” External Filter Rack-Mountable Kit 46” 57” 7” 9” 17” 17” 7” 9” Tripod Head V-Mount Hood-&-Handle 17” 24” 32” 40” 46” 57” Carrying Case RACK MOUNT ANY DISPLAY UP TO 24” 7 inch 9 inch 17 inch...
  • Page 32 Developed by FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.co.kr #914 Ace Techno Tower 9, 345-30 Gasan-dong, Geumcheon-gu, Seoul, 153-782, KOREA : +82 - 2 - 2026 - 1333 Fax : +82 - 2 - 2026 - 1339 Email: support@tvlogic.co.kr...
