Color; Display - TVLogic XVM-177A Operation Manual

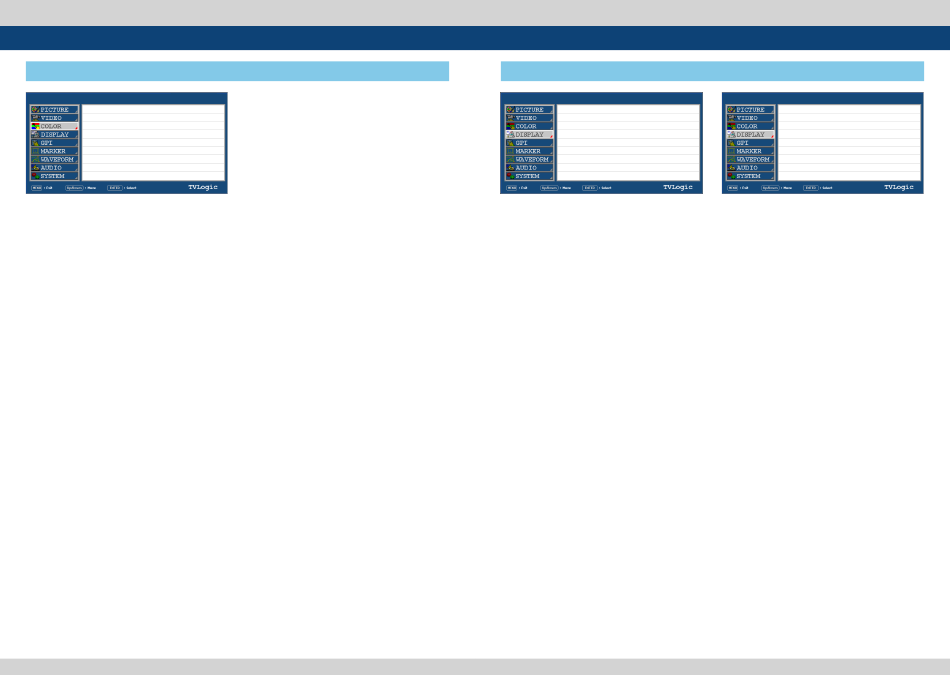

5. Menu Operations

[3] COLOR

SDI A XVM-177A
PAGE II >> PAGE I
BACKLIGHT
COLOR SPACE REC-709(sRGB)
HD COLOR SPACE REC-709(sRGB)
SD COLOR SPACE REC-709(sRGB)
GAMMA CURVE
Back Light
●
- Used to control the backlight level of the LCD
panel.
- Available values are between MIN(0) and
MAX(100). Higher value means brighter
screen.
COLOR SPACE
●
- Used to select color space and the mode will
be changed as the following sequence :
NATIVE COLOR -> LUT REC-709 -> LUT
SMPTE-C -> LUT EBU -> LUT D-CINEMA -> LUT
USER -> AUTO
HD COLOR SPACE
●
- Auto Color space selection mode for HD
Signal input.
14 Reference Monitor
SD COLOR SPACE
●
- Used to set the color space for the SD video
100
signal
GAMMA CURVE
●
2.2
- This item is used when the user want to
change the Gamma curve as wished
between 1.0 and 3.0. (0.1 step increament)
5. Menu Operations

[4] DISPLAY

SDI A XVM-177A
PAGE I >> PAGE II
HD DISPLAY MODE 16:9
TIME CODE ENABLE
ORBITER CIRCUIT
CLOSED CAPTION
608 CHANNEL SELECT CHANNEL 1
708 SERVICE SELECT SERVICE 1
TELETEXT PAGE
HD DISPLAY MODE
●
- Used to control the display ratio of HD mode.
- Available values are 16:9,1.85:1 and 2.35:1.
TIME CODE ENABLE
●
- Used to display the Time Code.
- Available modes are VITC, LTC and OFF.
ORBITER CIRCUIT
●
- Used to prevent the image sticking effect on
OLED Panels when signal input is used. The
user can decide the number of pixels to
move.
- The number of pixels should be within range
between MIN(0) and MAX(100). Moving
speed is 10 minutes per one pixel line.
CLOSED CAPTION
●
- Used to select Closed Caption.
- Available modes are OFF, 708, 608(LINE21),
608(ANC), OP47 and OP42.
* 608 : CEA-608-B, 708 : CEA-708-C standard
display only
608 CHANNEL SELECT
●
- Used to select Closed Caption 608 channel.
- Supports CC1~CC4.
708 CHANNEL SELECT
●
- Used to select Closed Caption 708 channel.
- Supports SERVICE 1~SERVICE 6.
TELETEXT PAGE
●
- Used to control OP47/42 pages.
SDI A XVM-177A
PAGE II >> PAGE I
SCREEN SELECT
OFF BORDER COLOR
OFF BORDER THICKNESS
OFF EXT. SYNC POSITION H
EXT. SYNC POSITION V
801
SCREEN SELECT
●
- Enables control for individual screens (1 or 2)
or full screen (both) in PBP mode.
- Screen selection order : ALL SCREEN ->
SCREEN 1 -> SCREEN 2.
- For easy screen selection, use the [F1] button
in the front panel.
BORDER COLOR
●
- Used to select the border line color between
the displays in PBP Mode.
- Available values are WHITE, GRAY, BLACK,
RED, GREEN and BLUE.
BORDER THICKNESS
●
- Used to adjust border line thickness between
displays in PBP Mode.
- Sets value range in pixel 0 ~ 7.
EXT. SYNC POSITION H
●
- Used to set the horizontal position of screen
in EXT. SYNC mode.
- Available values are -200 ~ 200.
EXT. SYNC POSITION V
●
- Used to set the vertical position of screen in
EXT. SYNC mode.
- Available values are -50 ~ 50.
Reference Monitor 15
ALL SCREEN
WHITE
1
0
0
