7. Other Functions

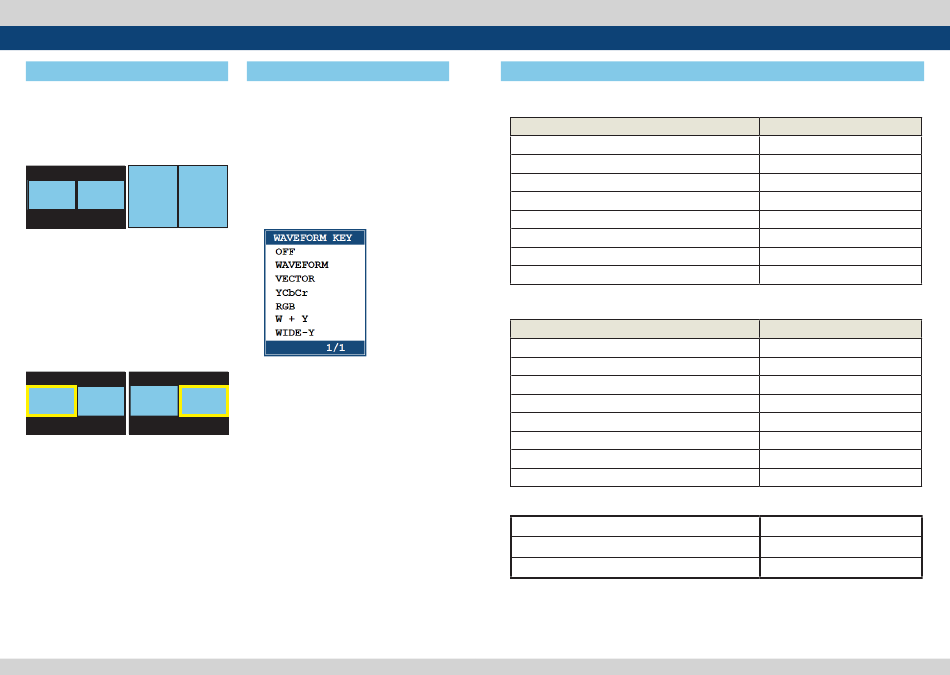

[4] PBP MODE USAGE
1. Press PBP button to activate the PBP
function. Then the two images will be
displayed in the monitor. In Normal Screen
(when an individual screen is not selected
in PBP mode), key function and OSD
function apply for two images simultaneously.
<PBP> <1:1(FULL PICTURE)>
** PBP: Picture-by-Picture TWO different multi
screen formations are available. Press the
PBP button to change the screen formation
as shown in the above picture.
2. To control the individual image in multi
screen, use the Screen F1 key to select the
desired display then control the desired
function. Selected image will be
highlighted.
<Screen 1selected> <Screen 2selected>
34 Reference Monitor
[5] FUNCTION KEY SET
Used to make a quick setting of the
●
Function Key.
- XVM-177A has 4 functions keys(F1~F4).
1. Press the function button on the front of the
monitor for more than 2 seconds and
activate the OSD menu as follows.
2. Move to a desired function with the[UP/
DOWN] button and press the [ENTER]
button to select.

8. DVI / HDMI Support Resolution

DVI ANALOG / DVI DIGITAL / HDMI SUPPORT RESOLUTION
DVI-ANALOG mode supports the following modes :
●
Resolution
640 X 480
720 X 400
800 X 600
1024 X 768
1366 X 768
1280 X 1024
1600 X 1200
1920 X 1080
DVI DIGITAL Graphic mode supports the following modes :
●
Resolution
640 X 480
800 X 600
1024 X 768
1366 X 768
1280 X 1024
1600 X 1200
1920 X 1080
1920 X 1200
DVI DIGITAL Video mode supports the following input signals :
●
SMPTE-274M
SMPTE-296M
SMPTE-125M
DVI DIGITAL mode is separated into Graphic mode and Video mode.
●
In DVI ANALOG/DIGITAL mode, ZERO scan must be selected for normal function.
●
If the input image is in non-wide mode, press ASPECT button to change to wide display.
●
Frequency
60Hz, 75Hz
70Hz
60Hz, 72Hz, 75Hz
60Hz, 70Hz, 75Hz
60Hz / 75Hz
60Hz / 75Hz
60Hz
60Hz
Frequency
60Hz, 75Hz
60Hz, 72Hz, 75Hz
60Hz, 70Hz, 75Hz
60Hz / 75Hz
60Hz / 75Hz
60Hz
60Hz
60Hz
1080i (60 / 59.94)
720i (60 / 59.94)
480i (59.94), 480p (59.94)
Reference Monitor 35
