Marker - TVLogic XVM-177A Operation Manual

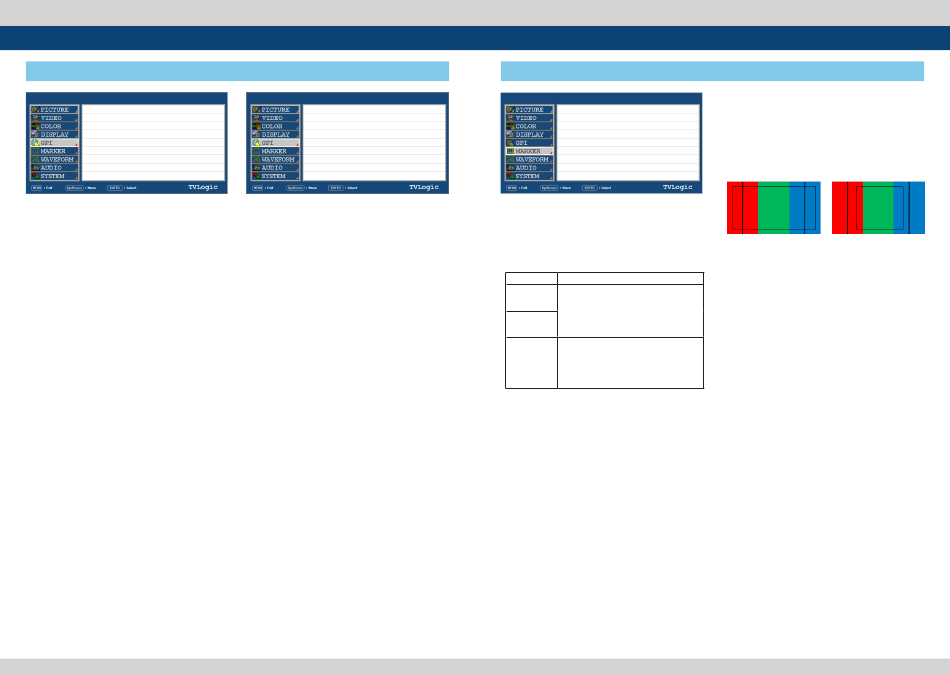

5. Menu Operations
[5] GPI
SDI A XVM-177A
PAGE III >> PAGE IV
DHCP
IP ADDRESS 192.168.123.
SUBNET MASK 255.255.128.
GATEWAY 0. 0.
PORT NO
SERVER IP ADDR 255.255.128.
SERVER PORT NO
NETWORK SETTINGS APPLY
DHCP
●
- Used to control the DHCP function.
IP ADDRESS
●
- Used to set the IP address connected to the
Monitor.
SUBNET MASK
●
- Used to set the SUBNET MASK connected to
the Monitor.
GATEWAY
●
- Used to set the GATEWAY connected to the
Monitor.
PORT NO
●
- Used to set the port number. Default port
number is 10262.
SERVER IP ADDR
●
- Used to set the IP address of TVLogic's
Controller (RMU Series).
SERVER PORT NO
●
- Used to set the port number of TVLogic's
Controller (RMU Series).
NETWORK SETTING APPLY
●
- Use to apply changed value of IP ADDRESS,
SUBNET MASK, GATEWAY, PORT NO and so
on.
20 Reference Monitor
SDI A XVM-177A
PAGE IV >> PAGE I
OFF D-UMD TALLY TYPE
0 TALLY1 COLOR
0 TALLY2 COLOR
0. 0 TALLY3 COLOR
10262 TALLY4 COLOR
0 UMD FONT SIZE
10262 UMD FONT TYPE
OFF
D-UMD TALLY TYPE
●
- Tally type configuration setting in D-UMD(D-
8C), UMD Display.
- Configuration values are DEFAULT, USER
COLOR, CHARCTER, BG .COLOR, USER TALLY,
USER CHAR and USER BG.
- TALLY1 COLOR ~ TALLY4 COLOR are activated
when USER COLOR is selected.
TALLY1 COLOR / TALLY2 COLOR / TALLY3
●
COLOR / TALLY4 COLOR
- Used to set the color of each TALLY 1, TALLY
2, TALLY 3 and TALLY 4.
- Available colors are RED, GREEN and
YELLOW.
UMD FONT SIZE
●
- This function adjusts the size of UMD FONT.
- Available modes are SMALL, NORMAL and
LARGE.
UMD FONT TYPE
●
- This function sets the Type of UMD FONT.
- Available font types are FONT 1, FONT 2 and
FONT 3.
5. Menu Operations

[6] MARKER

SDI A XVM-177A
PAGE I >> PAGE II
NORMAL
MARKER
FONT 1 CENTER MARKER
SAFETY AREA
FIT MARKER
MARKER MAT
MARKER COLOR
MARKER THICKNESS
MARKER
●
- Used to select the marker type when the
MARKER is displayed on the screen.
- Activates only by pressing the MARKER
button on the front of the monitor.
- Compatible MARKER types are as follows:
MODE
16:9, 4:3, 4:3 ON AIR, 15:9, 14:9,
HD
13:9, 1.85:1, 2.35:1, 1.85:1 & 4:3,
4:3 ALT 16:9, 16:9 ALT 14:9, 16:9 ALT
SD 16:9
4:3, AFD, USER
16:9, 4:3, 4:3 ON AIR, 15:9, 14:9,
13:9, 1.85:1, 2.35:1, 1.85:1 & 4:3,
SD 4:3
4:3 ALT 16:9, 16:9 ALT 14:9, 16:9 ALT
4:3, AFD, USER
* AFD(Active Format Description) : If AFD is
selected, the embedded Aspect ratio signal
in the video signal will be extracted and
displayed as a marker.
CENTER MARKER
●
- Used to display the CENTER MARKER on
the screen. This function operates only
after activating the MARKER function by
pressing the MARKER button on the front of
the monitor.
SAFETY AREA
●
- Used to select to display and control the size
of the SAFETY AREA.
- Available types are 80%, 88%, 90%, 93%,
100%, EBU ACTION 16:9, EBU GRAPHIC 16:9,
EBU ACTION 14:9, EBU GRAPHIC 14:9, EBU
ACTION 4:3 and EBU GRAPHIC 4:3.
- This function operates only after activating
the MARKER function by pressing the
MARKER button on the front of the monitor.
FIT MARKER
●
- Used to activate the FIT MARKER function.
OFF
- With FIT MARKER "ON", the safety area is
OFF
displayed relative to the marker in use.
OFF
With FIT MARKER "OFF", the safety area is
OFF
OFF displayed relative to the incoming source.
WHITE
- FIT MARKER ON/OFF displays as shown
4
below.
MARKER
●
SAFETY AREA : 90%
●
FIT MARKER
●
MARKER CLASS
MARKER MAT
●
- This item darkens the area of the outside
of MARKER setting area. The degree of
darkness is between OFF(Transparency) and
7(Black). The higher the number, the darker
MARKER border becomes.
MARKER COLOR
●
- Used to control the color of MARKER lines.
- Available colors are WHITE, gray, black, red,
green and blue.
MARKER THICKNESS
●
- This item controls the thickness of the
MARKER lines. The degrees of thickness are
between 1 and 7.
: 4:3 MARKER : 4:3
●
SAFETY AREA : 90%
●
: OFF FIT MARKER : ON
●
Reference Monitor 21
