5. Menu Operations

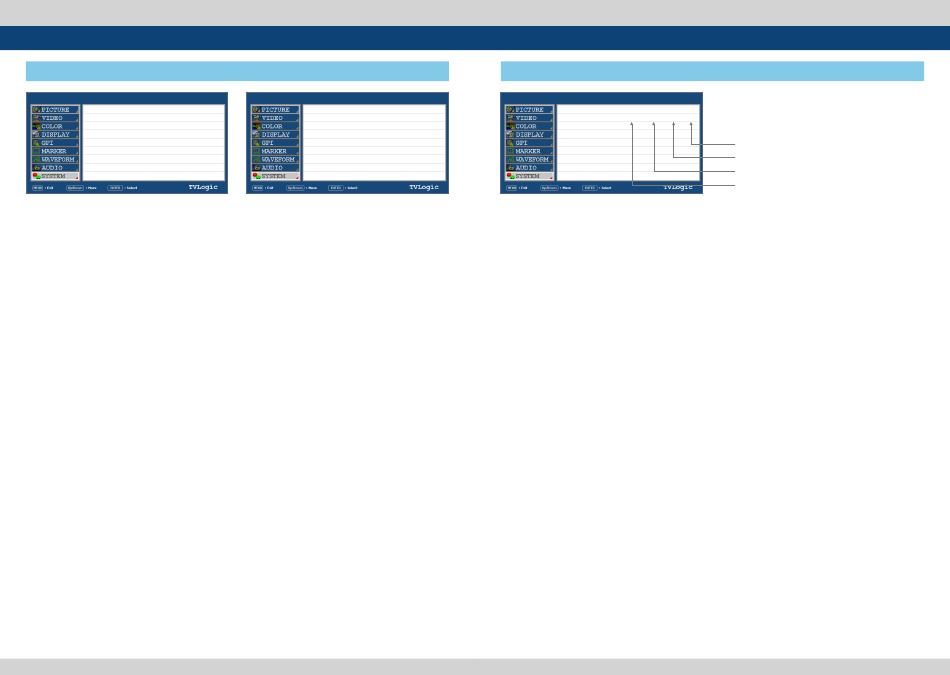

[9] SYSTEM
SDI A XVM-177A
PAGE III >> PAGE IV
DEVICE
COLOR CALIBRATION
TARGET LUMINANCE 80 cd/m2
K-10 CHANNEL 00:
COLORSPACE REC-709
CALIBRATION START
MEASUREMENT START
Y:000.00 x:0.000 y:0.000
DEVICE
●
-Used to select the device for color calibration.
COLOR CALIBRATION
●
- Connect the COLOR PROBE(e.g. K-10) to the
USB port to calibrate the monitor without a
PC.
* Refer to the section "Firmware Upgrade &
Color Calibration" for more information.
TARGET LUMINANCE
●
- Used to set the luminance.
K-10 CHANNEL
●
- Used to select the channel of COLOR
PROBE(K-10)
COLORSPACE
●
- Used to select the color space which will be
calibrated.
CALIBRATION START
●
- Used to start the calibration.
- Set the Color Calibration as [On]. The Color
calibration start menu will activate after
the USB connection is completed.
MEASUREMENT START
●
- Used to start the measurement.
- Set the Color Calibration as [On]. The Color
calibration start menu will activate after
the probe connection is completed.
28 Reference Monitor
SDI A XVM-177A
PAGE IV >> PAGE V
ON COPY DATA
OFF CAL. LOG COPY START
S/W UPGRADE
S/W UPGRADE START
COPY DATA
●
- Used to copy the files related to the
calibration.
CAL. LOG COPY START
●
- Used to save the CALIBRATION LOG file on a
USB drive.
* Set the COPY DATA as [On]. Activates only
when the USB drive(Thumb drive) is
connected.
S/W UPGRADE
●
- Used to upgrade the firmware using the USB
(Thumb drive).
* See section "Firmware Upgrade & Color
Calibration" for more information.
S/W UPGRADE START
●
- Used to start S/W upgrade. If the USB drive
is detected, the firmware upgrade becomes
activated.
5. Menu Operations
[9] SYSTEM
SDI A XVM-177A
PAGE V >> PAGE I
OFF BOARD VERSION 0101
SUB VERSION 01.03.02.05
OFF MAIN
BRIG :
CONT :
COLOR : 6500K
SCAN : ZERO
ALM : OFF
INFOMATION
●
- Displays board version and current status
information.
1306 4.00 9
PBP1 PBP2
0 0 0
KEYPAD VERSION
0 0 0
MCU VERSION
6500K 6500K
OVER OVER FPGA VERSION
OFF OFF
GPU VERSION
