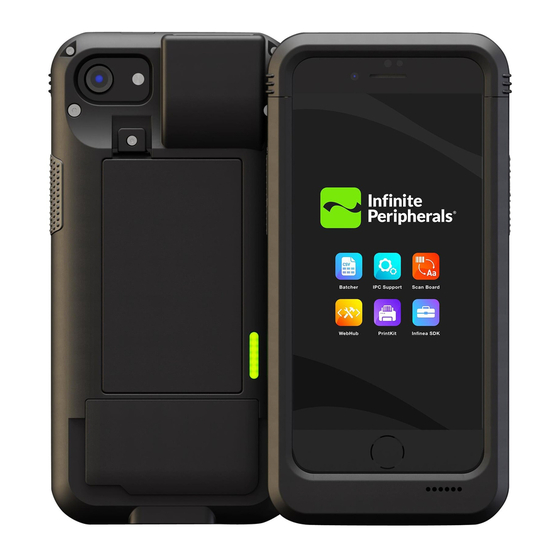

Infinite Peripherals Linea Pro 7 User Manual
  1. Manuals
  2. Brands
  3. Infinite Peripherals Manuals
  4. Barcode Reader
  5. Linea Pro 7
  6. User manual

Infinite Peripherals Linea Pro 7 User Manual

Hide thumbs Also See for Linea Pro 7:
Table of Contents

Advertisement

Quick Links

Linea Pro
7
®

Advertisement

Table of Contents
loading

Related Manuals for Infinite Peripherals Linea Pro 7

Summary of Contents for Infinite Peripherals Linea Pro 7

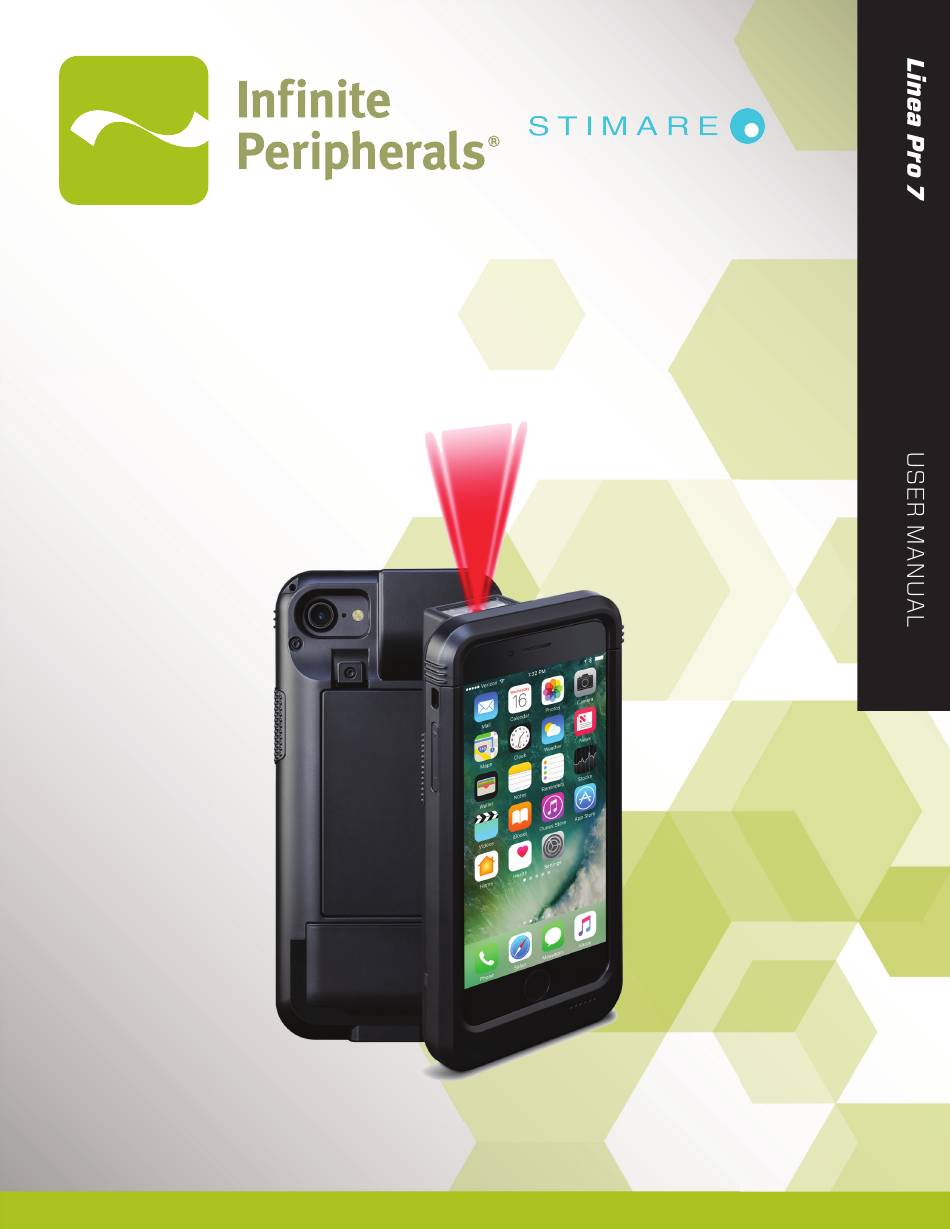

  • Page 1 Linea Pro ®...

  • Page 2: Contact Information

    CONTACT INFORMATION Note: iOS device and other items shown sold separately. Linea Pro 7 User Manual Page 1 of 30 UM-00028 Version: A...

  • Page 3: Legal Notice

    Infinite Periperhals, Mobilize Your Enterprise, Linea Pro, Infinea, Infinea Tab and Infinea Omni are trademarks of Infinite Peripheral, Inc. All other trademarks are the property of their respective owners. Linea Pro 7 User Manual Page 2 of 30 UM-00028 Version: A...

  • Page 4: Table Of Contents

    ..................................................Figure 6: Linea Pro 7 Assembly CHARGING YOUR LINEA PRO 7 ..........................Charging the Linea Pro 7 through the USB Port ....................11 ......................... Figure 7: USB Type-C Sync/Charge Port Battery Status Indicators .............................. 12 .......................... Figure 8: Battery Status Indicators DEVELOPING APPLICATIONS FOR YOUR LINEA PRO 7 ................
  • Page 5 Contactless Card Reader (RFID) ..........................19 ............................... Figure 13: RFID Reader Syncing ....................................20 ........................Figure 14: Syncing through USB Port RESETTING YOUR LINEA PRO 7 ......................................................Figure 15: Reset Function SERVICING YOUR LINEA PRO 7 ..........................Battery Replacement ..............................22 ..........................

  • Page 6: Box Contents

    USB Type-C™ Charge/Sync Cable (1) Note: Box contents may vary based on ordered configuration. ACCESSORIES Contact your Infinite Peripherals (IPC) account representative for information related to current and future product availability. Linea Pro 7 User Manual Page 5 of 30...

  • Page 7: Getting Started

    Important points and tips about the product are being provided. First Steps The Linea Pro 7 allows users to scan barcodes and read magnetic stripe data and pass that data into compatible iOS applications. Before using your Linea Pro 7, the battery should be properly charged.

  • Page 8: Linea Pro 7 Features

    LINEA PRO 7 FEATURES The Linea Pro 7 allows mobile employees to convert their iPhone into a powerful solution for the retail, warehousing, supply chain, ticketing and hospitality industries. The Linea Pro 7 includes an encrypted or unencrypted 3-track magnetic stripe reader, optional 1D or 2D barcode scanner, optional Bluetooth®, and optional RFID.

  • Page 9: Linea Pro 7 Product Overview

    LINEA PRO 7 PRODUCT OVERVIEW iOS Camera Opening Top Cover Volume Controls Audio Pass-through 9-pin Lightning™ Connector Figure 1: Front View Figure 2: Side View Reset Button USB Sync/Charge Port Scan Engine Figure 3: Top View Figure 4: Bottom View...

  • Page 10: Figure 5: Back View

    Top Cover Torx Screw Top Cover Torx Screw Scan Scan Button Button Battery Compartment Battery Status Button & Indicators RFID Antenna Magnetic Stripe Reader Figure 5: Back View Linea Pro 7 User Manual Page 9 of 30 UM-00028 Version: A...

  • Page 11: Assembling Your Linea Pro 7

    3. Tilt the top cover down and slide it back until it clicks into place. To secure the Linea Pro 7 insert the (2) torx screws, provided with the device, on the backside side of the unit near the top.

  • Page 12: Charging Your Linea Pro 7

    The Linea Pro 7 also supports pass through charging to the iOS device. The iPhone and Linea Pro 7 may be charged together via the USB Type-C port or by placing it in a Linea Pro 7 Single or 5-Unit Charging Station.

  • Page 13: Battery Status Indicators

    51% - 75% charge 4 LED 76% - 100% charge The iPhone 7 is not required to be connected to the Linea Pro device to check the battery status. Linea Pro 7 User Manual Page 12 of 30 UM-00028 Version: A...

  • Page 14: Developing Applications For Your Linea Pro 7

    DEVELOPING APPLICATIONS FOR YOUR LINEA PRO 7 Software is not provided with your Linea Pro 7. Please contact your reseller or Infinite Peripherals for Third Party software solutions. Integrating the Linea Pro 7 into your iOS application requires the use of the Infinite Peripherals Universal SDK.

  • Page 15: Powering On Your Linea Pro 7

    POWERING ON YOUR LINEA PRO 7 Dual Purpose Scan Buttons The Linea Pro 7 has two Scan Buttons located on each side of the unit. Both Scan Buttons are set up as a dual-purpose button that can both power on the unit and scan barcodes.

  • Page 16: Linea Pro 7 Status And Operational Modes

    LINEA PRO 7 STATUS AND OPERATIONAL MODES The Linea Pro 7 additionally uses the battery indicator LEDs to indicate various modes of operation. LED lighting indicators provide information regarding connection status, charging and/or low battery conditions. The following table explains these conditions and their corresponding LED indication.

  • Page 17: Using Your Linea Pro 7

    USING YOUR LINEA PRO 7 Barcode Scanner - 1D Barcodes The Linea Pro 7 1D model uses a scan engine that supports one-dimensional (1D) barcode symbols. The effective reading distance of the barcode reader varies depending on the barcode size.

  • Page 18: Barcode Scanner - 2D Barcodes

    Barcode Scanner - 2D Barcodes The Linea Pro 7 2D model uses a scan engine that supports one-dimensional (1D) and two- dimensional (2D) barcode symbols. The effective reading distance of the barcode reader varies depending on the barcode size. To Scan a 2D Barcode: Activate the Linea Pro 7 by pressing either Scan Button.

  • Page 19: Magnetic Stripe Reader (Msr)

    Magnetic Stripe Reader (MSR) The Linea Pro 7 has a built-in magnetic stripe reader. The MSR incorporates a 3-track, bi-directional, encryption-capable magnetic read head. A single swipe can read field data from all three tracks. The MSR will function as an unencrypted MSR until an encryption key is injected into the MSR head by a designated Infinite Peripherals key injection facility.

  • Page 20: Contactless Card Reader (Rfid)

    Contactless Card Reader (RFID) The Linea Pro 7 has a built-in RFID tag/card reader. The RFID reader incorporates several RFID format depending on the model of your Linea Pro 7. To Use the RFID Reader: Activate the Linea Pro 7 by pressing either Scan Button.

  • Page 21: Syncing

    To sync your iPhone with iTunes through the Linea Pro 7, connect the Linea Pro 7 to a computer by plugging a USB Type-C cable into the USB port. The Linea Pro 7 should now be in Sync mode.

  • Page 22: Resetting Your Linea Pro 7

    RESETTING YOUR LINEA PRO 7 The Linea Pro 7 can perform a soft reset without requiring the removal of the iOS device. The soft- reset feature cycles the power, allowing the firmware of the Linea Pro 7 to restart. To Reset the Linea Pro 7: Locate the small pinhole near the USB port.

  • Page 23: Servicing Your Linea Pro 7

    Figure 16: Battery Replacement T5 x 40mm Torx Driver not included. Linea Pro 7 with encrypted functionality has special key protection features. If battery is removed from the unit for more than one (1) hour, it may result in the erasure of the encryption key and disabling of the card reading features.

  • Page 24: Sred Encrypted Msr Information

    Integrating the PCI PTS 3.x SRED-certified Linea Pro 7 into your solution requires proper maintenance of the Linea Pro 7 to ensure long and trouble free operation of the product. This includes maintaining proper battery charge to prevent the Linea Pro 7 from entering Tamper Detect mode.

  • Page 25: Troubleshooting > Card Reading

    TROUBLESHOOTING Troubleshooting > Card Reading If the Linea Pro 7 is not reading the magnetic strip properly, refer to the table below for possible causes: Problem Possible Cause • Card is inserted incorrectly No card data returned during • Swipe method is incorrect swiping •...

  • Page 26: Troubleshooting > Contactless Card Reading

    Troubleshooting > Contactless Card Reading If the Linea Pro 7 is not reading RFID Tags/Cards properly refer to the table below for possible causes: Problem Possible Cause • Linea Pro 7 battery is too low RFID does not power on •...

  • Page 27: Technical Data

    (Optional) ISO 15693: - Supports most cards JIS X 6319-4: - Compatible with FeliCa ISO/IEC 18000-3 mode 3: - NFC Encryption and 3DES, AES 128/256, DUKPT Key Management Linea Pro 7 User Manual Page 26 of 30 UM-00028 Version: A...
  • Page 28 Temperature: -10°C to +40°C (14°F to +104°F) Operating Environment Humidity: 5% to 90% RH Temperature: -20°C to +50°C (-4°F to +122°F) Storage Environment Humidity: 5% to 90% RH Linea Pro 7 User Manual Page 27 of 30 UM-00028 Version: A...

  • Page 29: Warranty

    WARRANTY Infinite Peripherals (IPC) does not warrant, and is not responsible for, any damage to the Linea Pro 7 (“Product”) or the assembled iOS device as a result of liquid or solid particle intrusion into the Product, or damaged caused by dropping the Product with the assembled iOS device. If a material or workmanship defect arises with regard to any IPC product, and a valid claim is received within the Warranty Period, IPC (at IPC’s sole discretion) will repair the Product using new or refurbished parts,...

  • Page 30: Symbols For Use

    SYMBOLS FOR USE Symbol Definition Consult Instructions for Use Manufacturer Manufacture Date Caution Serial Number Part Number Waste Electrical and Electric Equipment Complies with part 15 of the FCC rules Linea Pro 7 User Manual Page 29 of 30 UM-00028 Version: A...

  • Page 31: Federal Communications Commission

    End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter Linea Pro 7 User Manual Page 30 of 30 UM-00028 Version: A...
