Infinite Peripherals Linea Pro 7 Quick Start Manual

QUICK START GUIDE

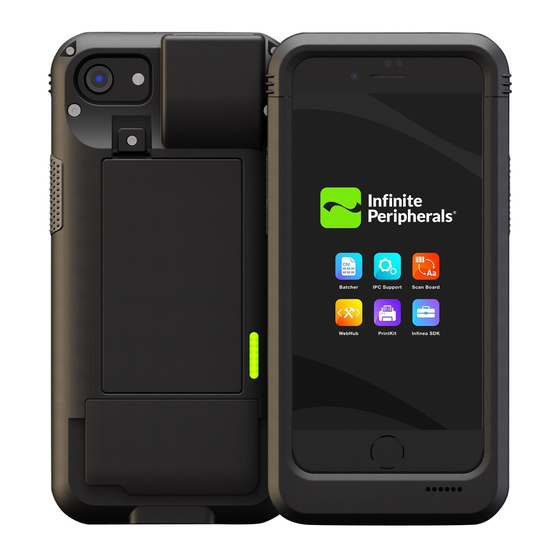

Linea Pro® 7
For iPhone® 6/6s/7

Assemble Your Linea Pro 7

To secure the top cover, insert the two (2) Torx screws provided into the back of the
unit, near the top.
1. Push the top cover forward, then up to insert the iOS device.
Top Cover
2. Firmly connect your iOS device by sliding it onto the Lightning™ connector.
3. Tilt the top cover down, and then slide it back until it clicks into place.

Charge Your Linea Pro 7

1. Connect a USB Type-C™ Cable into the USB port on the Linea Pro 7.
2. Plug the USB end of the cable into a suitable AC wall adapter.
Note:
The AC adapter must support at lease 2.1 amps.

Battery Status

1. To view the LEDs, press the battery status button on the back of the unit.
2. If the unit is fully discharged and enters the Tamper Defect mode, it may only be
reactivated at Infinite Peripherals.
Status %
Description
100-76 Solid green (4 LEDs)
75-51 Blink green (3 LEDs)
50-26 Blink green (2 LEDs)
25-1 Blink green (1 LED)
Emergency low battery

Sync with iTunes

®
The portable barcode scanner is designed specifically to use with iOS devices by
allowing your device to sync with iTunes through the Linea Pro 7 while connected.
1. Ensure the Pass-Through Sync option is enabled in the SDK.
2. Connect the Linea Pro 7 to a computer using a USB Type-C cable.
