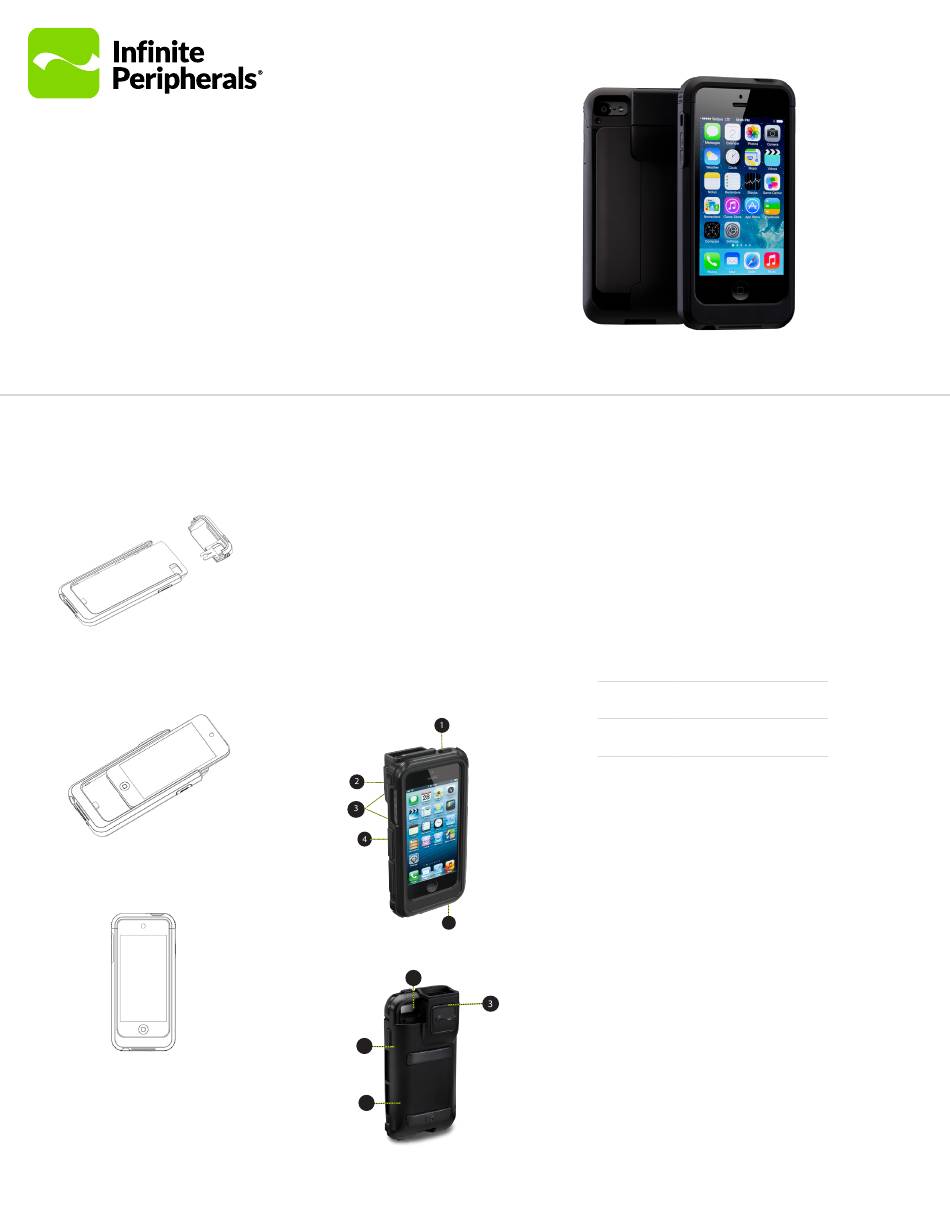

QUICK START GUIDE

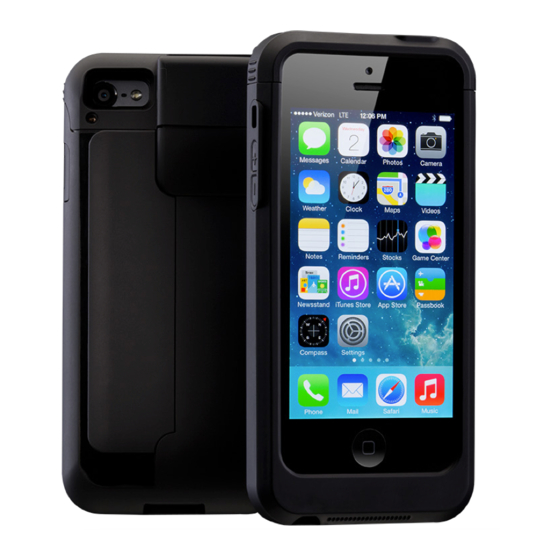

Linea Pro
Barcode Scanner
For iPhone 5/5S/SE or
®
iPod® Touch 5th/6th Generation
Assemble
1. Remove the top piece of the Linea Pro 5,
and then gently insert your iOS device.
2. Connect the iOS device by firmly sliding
it onto the Lightning™ connector.
3. Guide the top piece back onto the unit
until it snaps into place.
4. Press the top piece firmly onto the body
of the unit until it is secure.
5
®
Sync with iTunes®
You can sync the Linea Pro 5 with iTunes
while connected to your iOS device.
1. Enable the Pass-through sync option in
the SDK.
2. Connect the unit to a computer using
the mini USB cable.
3. After the sync is successful, refer to
the iTunes user instructions for syncing
with your iOS device.
To disable sync mode:
• Exit iTunes, and then unplug the unit
from the mini USB cable.
6
1
2
4
Charge Your Linea Pro 5
1.
2.
LED Battery Status
Press the battery status button to view the LEDs.
Status %
100-76
75-51
50-26
25-1
When the unit is fully discharged and enters Tamper Detect
mode, it can only be reactivated by Infinite Peripherals.
Pass-through charging is supported for your iOS device. An
iPod and Linea Pro 5 combination may be charged using a
USB cable to a computer, USB to AC adapter, or by a station
charger.
5
Note:
Due to requirements, the unit and iPhone combination cannot be
charged with a USB cable to computer.
Front of Linea Pro 5:
1. iOS device On/Off button
2. Linea Pro 5 Scan/On button
3. Scan engine
4. Volume buttons
5. USB sync/charge port
Back of Linea Pro 5:
1. iOS device On/Off button
2. Linea Pro 5 Scan/On button
3. Scan engine
4. Magnetic strip reader (MSR)
Connect the mini USB cable to the USB port
on the botton of the unit.
Determine the battery charge status based on
the number of LEDs illuminated.
Description
Solid green (4 LEDs)
Blink green (3 LEDs)
Blink green (2 LEDs)
Blink green (1 LED)
Emergency low battery
