QUICK START GUIDE

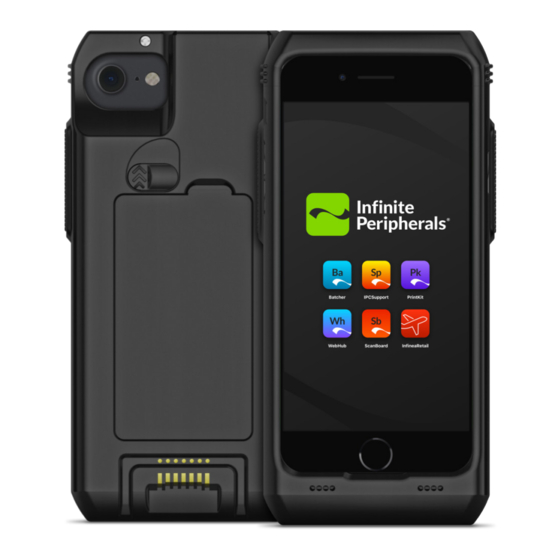

Linea Pro® 7i
Barcode Scanner For iPhone® 7/8

Getting Started

1. Before first use, ensure the battery is
fully charged.
Note:
If fully discharged, the charging time is
approximately 4 hours and 30 minutes.
2. Attach your iOS device to the unit.
3. Plug the USB Type-C end of the
included charging cable into the unit,
and then connect the USB Type-A end
of the cable to any USB-A power supply
rated 5V 2.1A.
4. Check the battery charge status in
the unit's mobile application. If using
a charge station, verify the battery
charge status LED on the charging
station.
Note:
When an USB Type-C cable is
plugged in, the Pavss-Through
sync functionality is enabled in the
application's Settings menu.

Product Specifications

Combatibility
Mechanical
Weight
Dimensions
Barcode scanner
Electrical
(Optional) Contactless card
reader
Connectivity
Power input
Power port
Battery
Environmental
Operating Temperature
Storage Temperature
Relative Humidity
iPhone 7/8
160g (5.6 oz) without iOS device
76mm x 25mm x 157mm (3.00" x 1.08" x 6.29")
Supports all 1D/2D high-speed imagers
MiFARE Mini, Classic 1K/4K, Ultra-Light/Ultra-
Light-C, DESFire; ISO/IEC 1443 Type B, 15693;
JIS X 6319-4 (compatible with FeliCA), 18000-3
mide 3; NFC
• Lightning™ connector
• Pass-through sync through USB Type-C
• Bluetooth 2.0 Class 2
• Serial Port Profile (SPP)
Use only original USB-A to USB-C cable for charging
iOS device and use only UL approved USB adapters. The
minimum requirements for USB adapters is 5V 2.1A
• DC 5V through USB Type-C
• DC 5V charging station
• DC 5V through dual charging station
USB Type-C
3.7V 2400mAH
10°C – +40°C (14°F – 104°F)
-20°C – +50°C (-4°F + 122°F)
5%-90%
