- Page 1 Linea Pro 7 Plus ® for iPhone® 7 and 8 Plus...
-
Page 2: Contact Information
CONTACT INFORMATION Web: www.stimare.net General enquiries: info@stimare.net Support: support@stimare.net United States: 4730 Tejon Street Denver CO 80211 Phone: +1-720-257-7070 United Kingdom: Unit 4, Bramber Court, Bramber Road, London,W14 9PW, United Kingdom Phone: +44 208 099 8071 Ireland: 46A Patrick Street Dun Laoghaire Co. -
Page 3: Legal Notice
7 Plus • iPhone 8 Plus TRADEMARK CREDITS Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea, Infinea Tab and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners. Page 3... -
Page 4: Table Of Contents
FEATURES ....................PRODUCT OVERVIEW ..............ASSEMBLING YOUR LINEA PRO 7 PLUS ........................Getting Started ........... Charging the Linea Pro 7 Plus through the USB Port ....................... Battery Status ..................DEVELOPING APPLICATIONS ................... PROGRAMMABLE OPTIONS ..............POWERING ON YOUR LINEA PRO 7 PLUS ................... - Page 5 ........................WARRANTY ........................DISCLAIMER ............... PRODUCT RETURNS AND SERVICING ......................SYMBOLS FOR USE ............FEDERAL COMMUNICATIONS COMMISSION Page 5...
-
Page 6: Box Contents
Before initial use, ensure the battery is fully charged. If fully discharged, the charging time is approximately 3 hours and 30 minutes. You’ll find a Linea Pro 7 Plus and these items in the box: Linea Pro 7 Plus (1) Standard Battery (1) USB Type-C™... -
Page 7: Accessories
ACCESSORIES Contact your Infinite Peripherals account representative for information related to current and future product availability. Page 7... -
Page 8: Getting Started
Note provided. First Steps The Linea Pro 7 Plus allows you to scan barcodes and pass that data into compatible iOS applications. In addition, this form-fitted solution offers the IP54 rating for protection against dust and moisture. The following table will help you get the Linea Pro 7 Plus ready for use:... -
Page 9: Features
The Linea Pro 7 Plus allows mobile employees to convert their iPhones into a powerful solution for the retail, warehousing, supply chain, ticketing and hospitality industries. The Linea Pro 7 Plus includes an optional 1D or 2D barcode scanner, optional Bluetooth® and optional RFID. -

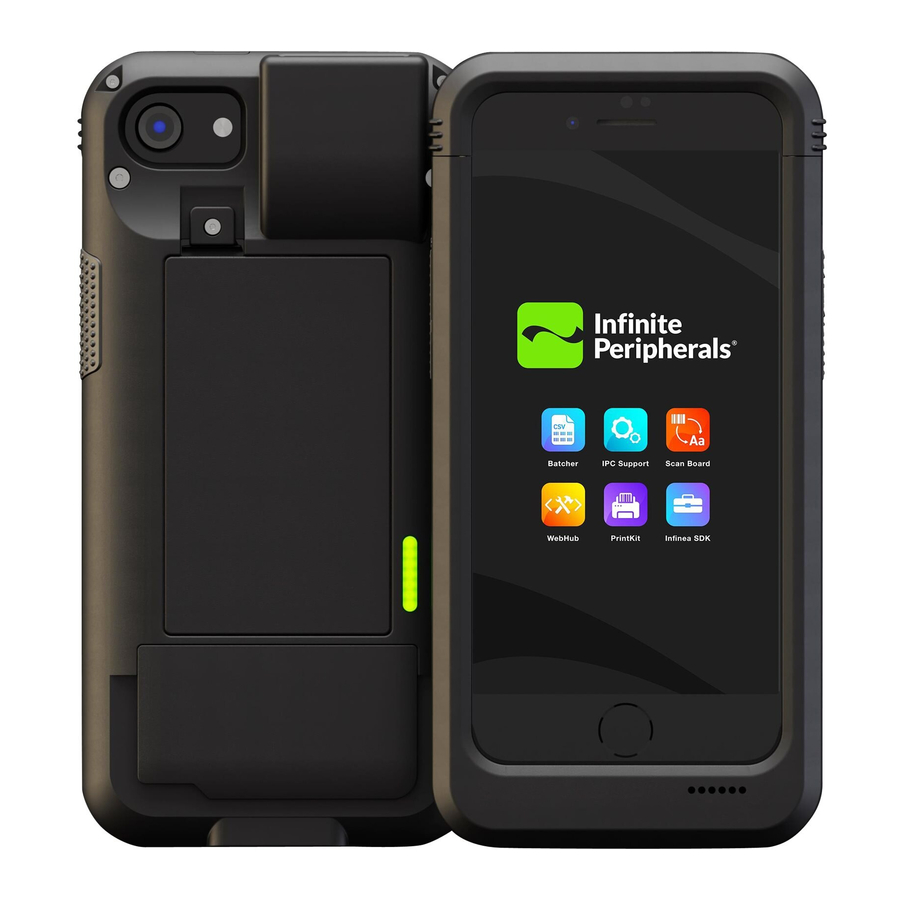

Page 10: Product Overview
PRODUCT OVERVIEW Scan Engine iOS Volume Button LED Indicator for Battery Status Charging Pads iOS Power Button Device Reset Button Battery Cover and Latch USB Type-C Connector Left and Right Scan Buttons Front Cover Screws Strap Openings Page 10... -
Page 11: Assembling Your Linea Pro 7 Plus
ASSEMBLING YOUR LINEA PRO 7 PLUS Remove the top cover by unscrewing 4 screws, and then slide the unit forward and lift it up. Attach the iOS device to the Lightning™ connector by firmly sliding it into place. Align the front cover with the two hooks, and slide it down and then back until it clicks into place. -
Page 12: Getting Started
The iPhone and Linea Pro 7 Plus may be charged together using the USB Type-C port or by placing it in a Linea Pro 7 Plus charging pad or USB port. To charge the unit through the USB port: •... -
Page 13: Battery Status
To check the battery status, open the mobile application on the iPhone to see device information. The iPhone is required to be connected to the Linea Pro 7 Plus unit to check the battery status. When the status is above 20%, you can set the Automated Charge functionality to automatically charge the iPhone battery. -
Page 14: Developing Applications
Software is not provided with your Linea Pro 7 Plus. Please contact your reseller or Infinite Peripherals for third-party software solutions. Integrating the Linea Pro 7 Plus into your iOS application requires the use of the Infinite Peripherals Universal SDK. The SDK incorporates an API specifically for developing applications to use barcode scanning and payment functionality of the unit. -
Page 15: Programmable Options
PROGRAMMABLE OPTIONS Below are optional settings for the Linea Pro 7 Plus, which can be configured via the SDK. Description Programmable Options Charging current may be set to 500mA (default) or Charging Current 1000mA. The Linea Pro 7 Plus can charge the iPhone using its internal battery by enabling the “setCharging”... -
Page 16: Powering On Your Linea Pro 7 Plus
Press either Scan button a second time to activate the scanner for normal barcode scanning. When the Linea Pro 7 Plus is left idling for an extended period, the power is automatically turned off to preserve the charge on the internal battery pack. -
Page 17: Using Your Linea Pro 7 Plus
USING YOUR LINEA PRO 7 PLUS Barcode Scanner—1D or 2D Barcodes The scan engine in the Linea Pro 7 Plus 1D model supports one-dimensional (1D) barcode symbols. The 2D model scan engine supports one-dimensional (1D) and two-dimensional (2D) barcode symbols. The effective reading distance of the barcode reader varies based on the barcode size. -
Page 18: Contactless Card Reader (Rfid)
To use the RFID reader: Press the Scan button to activate the unit. Place the RFID tag/card over the receiver/transmitter as indicated by the RFID label. Note: Data is sent from the Linea Pro 7 Plus contactless reader to the iOS device. Page 18... -
Page 19: Servicing Your Linea Pro 7 Plus
SERVICING YOUR LINEA PRO 7 PLUS Battery Replacement The Linea Pro 7 Plus is designed with a 2400mAh battery, which you can replace. Note: Replace battery only with a new, original battery, using part number, PL-15-110. Slide the battery latch, and then pull the battery cover up. -
Page 20: Troubleshooting
TROUBLESHOOTING Troubleshooting—Barcode Scanning If the Linea Pro 7 Plus is not scanning barcodes properly, refer to the table below for possible causes: Problem Possible Cause • Linea Pro 7 Plus battery is too low Scanner does not power • Linea Pro 7 Plus is not powered on by the software •... -
Page 21: Troubleshooting-Contactless Card Reading
Troubleshooting—Contactless Card Reading If the Linea Pro 7 Plus is not reading the RFID Tags/Cards properly refer to the table below for possible causes: Problem Possible Cause • Battery is too low RFID does not power • Unit is not powered on by the software •... -
Page 22: Technical Data
TECHNICAL DATA MECHANICAL Processor 32-bit ARM™ Cortex™ - M3 MCU Compatibility iPhone 7 Plus and iPhone 8 Plus Lightning™ connector Pass-through sync via USB Type-C charge/sync cable (Optional) Bluetooth 2.0 Class 2 -SPP Serial Port Profile Connectivity Note: Use only original USB-A to USB-C cable for charging iPhone. Use only UL approved USB adapters. - Page 23 Visual—2 LEDs for battery status Indicators Audio—Electromagnetic Buzzer CERTIFICATIONS General ENVIRONMENT Temperature: -10°C to +40°C (14°F to +104°F) Operating Environment Humidity: 5% to 90% RH Temperature: -20°C to +50°C (-4°F to +122°F) Storage Environment Humidity: 5% to 90% RH Page 23...
-
Page 24: Warranty
Infinite Peripherals does not warrant, and is not responsible for, any damage to the Linea Pro 7 Plus (“Product”) or the assembled iOS device as a result of liquid or solid particle intrusion into the Product, or damaged caused by dropping the Product with the assembled iOS device. -
Page 25: Product Returns And Servicing
PRODUCT RETURNS AND SERVICING Use the link provided to create an account and gain access to our Knowledge Base and online support services. Through our online support center, you’ll be able to download files, open a Support Ticket, manage your RMAs, view your account Profile and subscribe to Alerts. -
Page 26: Symbols For Use
SYMBOLS FOR USE Symbol Definition Consult Instructions for Use Manufacturer Manufacture Date Caution Serial Number Part Number Waste Electrical and Electric Equipment Complies with part 15 of the FCC rules Page 26... -
Page 27: Federal Communications Commission
FEDERAL COMMUNICATIONS COMMISSION Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
