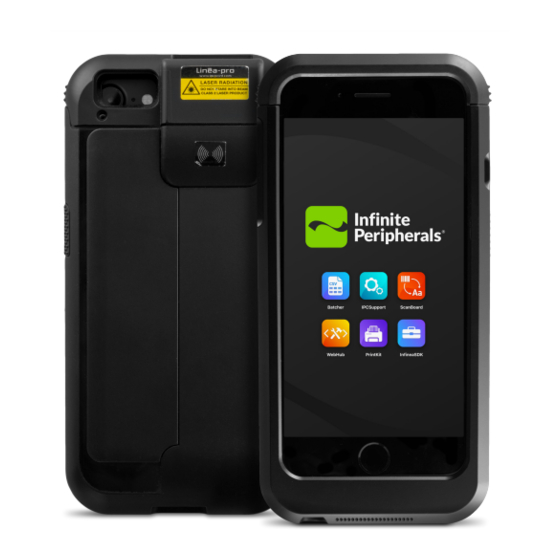

Infinite Peripherals Linea Pro 6 User Manual
For iphone 6/6s
Hide thumbs
Also See for Linea Pro 6:
- User manual (32 pages) ,
- How to use (4 pages) ,
- Quick start manual (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Infinite Peripherals Linea Pro 6
Summary of Contents for Infinite Peripherals Linea Pro 6
- Page 1 USER MANUAL Linea Pro 6 ® For iPhone 6/6s ®...
- Page 2 Compatible Devices iPhone 6/6s Trademarks Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea, Infinea Tab, and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
USER MANUAL — LINEA PRO 6 Table of Contents Overview Scan Barcodes Technical Data Magnetic Stripe Reader (MSR) Box Contents Contactless Card Reader Getting Started Servicing the Linea Pro 6 Product Description SRED Encrypted MSR Information Assemble Your Linea Pro 6... -
Page 4: Overview
Overview The Linea Pro 6 allows mobile employees to convert their iPhones into a powerful solution for the retail, warehousing, supply chain, ticketing and hospitality industries. The Linea Pro 6 includes an 1D/2D barcode scanner, magnetic stripe reader, Bluetooth®, and optional RFID. - Page 5 USER MANUAL — LINEA PRO 6 Connectivity Connectivity (Optional) Contactless Card Reader (RFID) Apple 9-pin connector ISO/IEC 14443 Type-A/MIFARE: MIFARE MINI Barcode Scanner MIFARE CLASSIC-1K, MIFARE CLASSIC-4K MIFARE ULTRALIGHT, ULTRALIGHT-C 1D/2D high-speed imager, which supports all major barcodes MIFARE PLUS 2K/4K...
-
Page 6: Box Contents
Box contents and part numbers vary based on your order configuration. Getting Started The Linea Pro 6 allows you to scan barcodes and capture magnetic stripe data to pass into compatible iOS applications. Ensure the battery is fully charged before first use. -
Page 7: Product Description
USER MANUAL — LINEA PRO 6 Product Description Volume 9-pin Lightning™ Controls connector Scan Engine Magnetic Stripe Reader Scan Button iPhone On/Off Button... -
Page 8: Assemble Your Linea Pro
The Linea Pro 6 uses a Lithium-ion rechargeable battery, which must be fully charged before first use and supports pass through charging to the iOS device. The iPhone and Linea Pro 6 may be charged together via the mini USB port or by placing it in a Linea Pro 6 Single or 5-Unit Charging Station. -
Page 9: Battery Status
Develop Linea Pro 6 Applications Software is not provided with your Linea Pro 6. Please contact your reseller or Infinite Peripherals for Third Party software solutions. Integrating the Linea Pro 6 into your iOS application requires the use of the Infinite Peripherals Universal Software Developers Kit (SDK). -
Page 10: Programmable Options
Charging current may be set to 500mA (default) or 1000mA. Set Charging The Linea Pro 6 can charge the iPhone using its internal battery by enabling the “setCharging” setting. When the Linea Pro 6 battery is above 20%, it will then start to charge the iOS device battery. -
Page 11: Turn On The Linea Pro 6
When turned off, the unit is in sleep mode immediately. Scan Barcodes The scan engine in the Linea Pro 6 supports one-dimensional (1D) and two-dimensional (2D) barcode symbols. The effective reading distance of the barcode reader varies based on the barcode size. For example, 15-20 cm (5.9-7.9 inches). -
Page 12: Magnetic Stripe Reader (Msr)
The built-in magnetic stripe reader incorporates a 3-track, bi-directional, encryption-capable read head. A single swipe reads data from all three tracks. Note: The MSR functions as an unencrypted MSR until an encryption key is injected into the MSR head by a designated Infinite Peripherals key injection facility. https://ipcmobile.com/support/technical-services#key-injection Refer to for details. -
Page 13: Servicing The Linea Pro 6
SRED Encrypted MSR Information Integrating the PCI PTS 3.x SRED-certified Linea Pro 6 into your solution requires proper maintenance of the Linea Pro 6 to ensure long and trouble free operation of the product. This includes maintaining proper battery charge to prevent the Linea Pro 6 from entering Tamper Detect mode. When the Linea Pro 6 battery is depleted or removed, the magnetic read head security feature becomes disabled and renders the unit unusable. -
Page 14: Troubleshooting
Full card data/partial card • Card is inserted incorrectly data is not returned during • Swipe method is incorrect swiping • Faulty read head/ • Unreadable magnetic strip. Note: https://ipcmobile.com/devices/ If problems persist with your Linea Pro 6, contact a Mobility Expert at... -
Page 15: Warranty
Warranty Infinite Peripherals does not warrant, and is not responsible for, any damage to the Linea Pro 6 (“Product”) or the assembled iOS device as a result of liquid or solid particle intrusion into the Product, or damaged caused by dropping the Product with the assembled iOS device. If a material or workmanship defect arises with regard to any Infinite Peripherals product, and a valid claim is received within the Warranty Period, Infinite Peripherals (at our sole discretion) will repair the Product using new or refurbished parts, or replace the Product with a new or refurbished Product. - Page 16 USER MANUAL — LINEA PRO 6...
