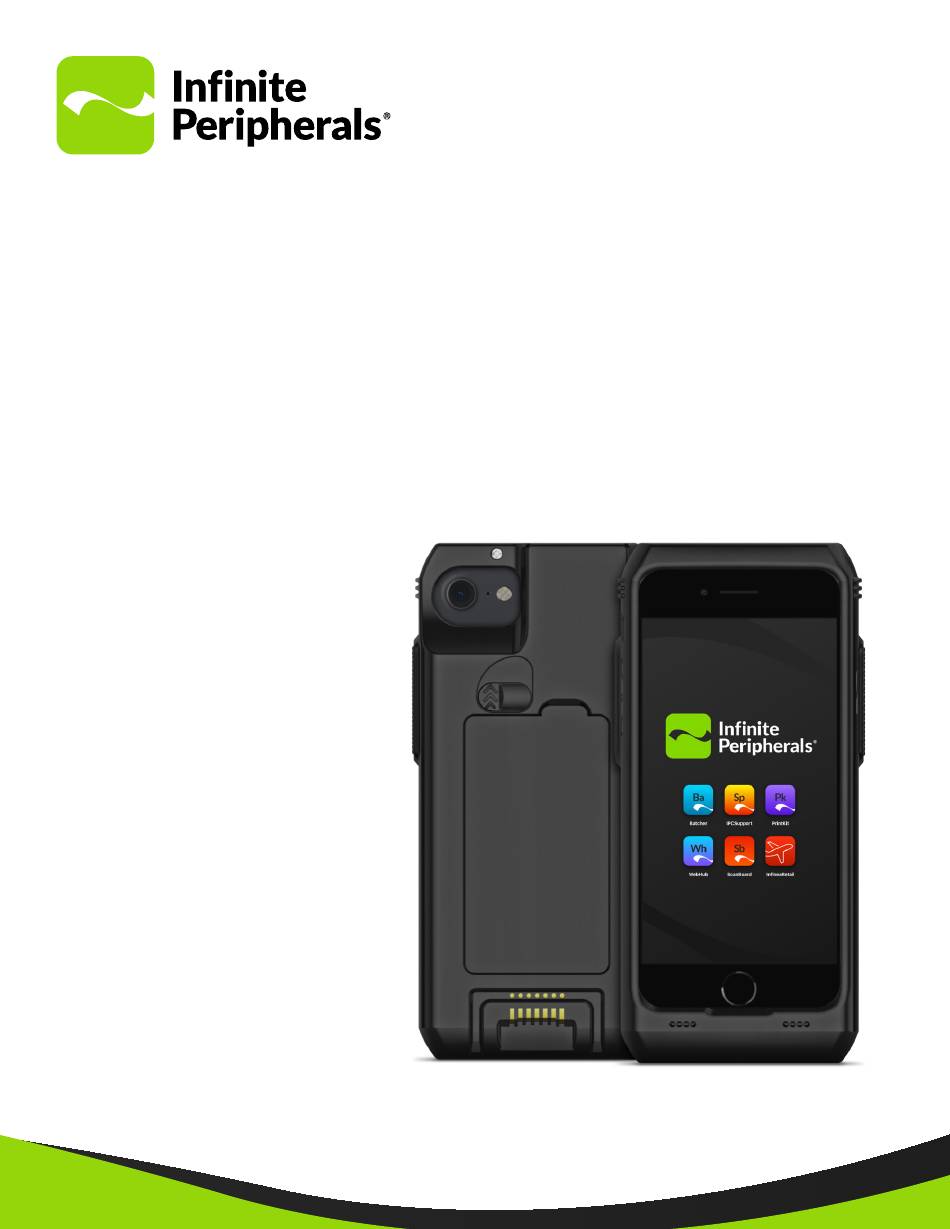

- Page 1 USER MANUAL Linea Pro 7i ® For iPhone 6/6s/7/8 ®...
- Page 2 Compatibility iPhone 6 iPhone 6s iPhone 7 iPhone 8 Trademarks Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea, Infinea Tab, and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
USER MANUAL- LINEA PRO 7i Table of Contents Overview Turn on the Linea Pro 7i Technical Data Scan Barcodes Box Contents Using the RFID Reader Getting Started Servicing the Linea Pro 7i Product Description Troubleshooting Assembling Your Linea Pro 7i... -
Page 4: Overview

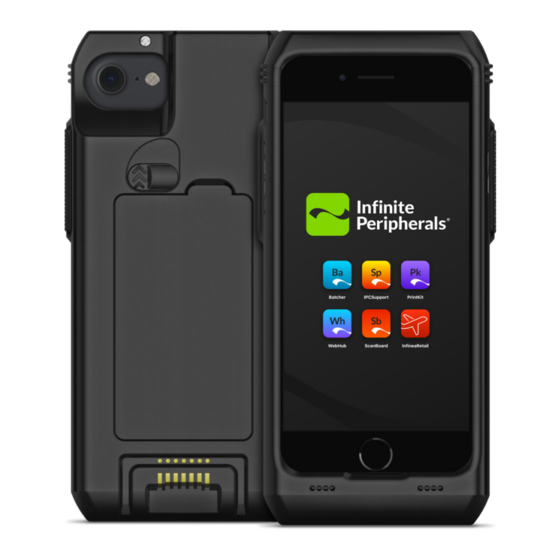

USER MANUAL- LINEA PRO 7i Overview The Linea Pro 7i allows mobile employees to convert their iPhones into a powerful solution for the retail, warehousing, supply chain, ticketing and hospitality industries. The Linea Pro 7i includes an 1D/2D barcode scanner, Bluetooth®, and optional RFID. - Page 5 USER MANUAL- LINEA PRO 7i Connectivity Connectivity Barcode Types Supported Lightning™ Connector 1D/2D high-speed imagers Pass-through sync via USB Type-C charge/sync cable Battery (Optional) Bluetooth 2.0 Class 2 -SPP Serial Port Profile Rechargeable Lithium-Polymer battery 3.7V/2400 mAH Precise battery management by Fuel Gauge...
-
Page 6: Box Contents
Box contents and part numbers vary based on your order configuration. Getting Started The Linea Pro 7i allows you to scan barcodes and pass that data into compatible iOS applications. In addition, this form-fitted solution offers the IP66 rating for protection against dust and moisture. -
Page 7: Product Description
USER MANUAL- LINEA PRO 7i Product Description Scan engine Volume control buttons for iOS device Back cover iOS device ring/silent switch On/Off button for iOS device Battery cover latch Left/right Scan button Battery cover USB Type-C connection 10. External features connection... -
Page 8: Assembling Your Linea Pro 7I
USER MANUAL- LINEA PRO 7i Assembling Your Linea Pro 7i Remove the top cover by loosening the screw, and then slide the Align the top cover with the two hooks, and then slide it down until it clicks into place. -
Page 9: Battery Charging
Connect the USB Type-C charging cable to the USB port. Battery Status To check the battery status, open the application on your iOS device and view the device data. Your iOS device must be connected to the Linea Pro 7i before you can check the battery status. -
Page 10: Programmable Options
Charging current may be set to 500mA (default) or 1000mA. Set Charging The Linea Pro 7i can charge the iPhone using its internal battery by enabling the “setCharging” setting. When the Linea Pro 7i battery is above 20%, it will then start to charge the iOS device battery. -
Page 11: Turn On The Linea Pro 7I
Scan Barcodes The scan engine in the Linea Pro 7i supports one-dimensional (1D) and two-dimensional (2D) barcode symbols. The effective reading distance of the barcode reader varies based on the barcode size. For example, 15-20 cm (5.9-7.9 inches). These types of scanning modes are supported: •... -
Page 12: Using The Rfid Reader
Servicing the Linea Pro 7i The Linea Pro 7i is designed with a 2400Ah battery, which can be replaced. Ensure you use only a new battery with part number PL-15-110. How to Replace the Battery Insert the side of the new battery with the contacting pads, and then press it down. -
Page 13: Troubleshooting
Unable to scan specific • RFID type not enabled. tags or cards • RFID type not supported. • Refer to Technical Specifications for additional information. Note: If problems persist with your Linea Pro 7i, contact a Mobility Expert at https://ipcmobile.com/devices/linea-pro-7i. -
Page 14: Warranty
Warranty Infinite Peripherals does not warrant, and is not responsible for, any damage to the Linea Pro 7i (“Product”) or the assembled iOS device as a result of liquid or solid particle intrusion into the Product, or damaged caused by dropping the Product with the assembled iOS device. If a material or workmanship defect arises with regard to any Infinite Peripherals product, and a valid claim is received within the Warranty Period, Infinite Peripherals (at our sole discretion) will repair the Product using new or refurbished parts, or replace the Product with a new or refurbished Product. -
Page 15: Federal Communications Commissions
USER MANUAL- LINEA PRO 7i...
