Infinite Peripherals Linea Pro 7 Plus Quick Start Manual

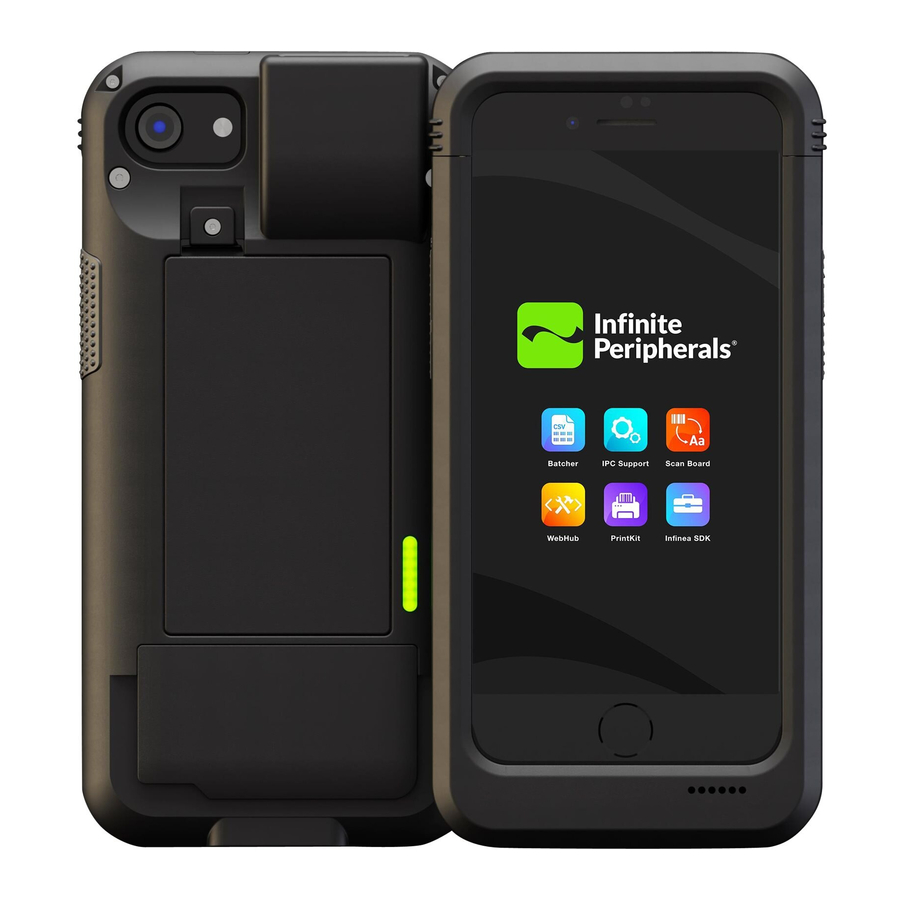

Linea® Pro 7 Plus
Barcode Scanner
iPhone 7 Plus/8 Plus
QUICK START GUIDE

GETTING STARTED

1. Before using for the first time, ensure the
battery is fully charged. LED battery status is on
the top of the device.
Note: If fully discharged, the charging
time is approximately 3 hours and 30
minutes.
2. Attach your iOS device to the unit.
3. Plug the USB Type-C end of the included charging
cable into the Linea Pro 7 Plus and then connect
the USB Type-A end of the cable to any USB-A
power supply that is rated 5V 2.4A.
4. Confirm the LED is green (battery level is above
20%). See battery statuses on page 2.
Note: When an USB Type-C cable
is plugged in, the Pass-Through
Sync functionality can be enabled
in the application's Settings menu.

PRODUCT SPECIFICATIONS

Compatibility
Weight
Dimensions
Barcode Scanner Only
(Optional) Contactless
Card Reader (RFID)
Connectivity
Power Input
Power Port
Battery
Operating Temperature
Storage Temperature
Relative Humidity
Rating
ABOUT YOUR
Mechanical
iPhone 7 Plus and 8 Plus
250g (8.81 oz.) without iOS device
93.5mm x 36.5mm x 186.5mm (3.68" x 1.44" x 7.34")
Electrical
Supports all 1D laser and 2D high-speed imagers
MiFARE Mini, Classic 1K/4K, Ultra-Light/Ulta-Light-C, Plus 2K/4K, DESFire; ISO/
IEC 1443 TypeA/B, 15693; JIS X 6319-4 (compatible with FeliCA); Bluetooth 3.0/
Class 2
Lightning™ connector
Pass-through sync through USB Type-C
Bluetooth 2.0 Class 2
- SPP Serial Port Profile
Note: Use only original USB-A to USB-C cable for charging iP-
hone. Use only UL approved USB adapters. The minimum require-
ments of USB adapters 5V 2.21A.
DC 5V through USB Type-C
DC 5V through charging station
DC 5V through dual charging station
USB Type-C
3.7V 2400mAh
Environmental
-10°C to +40°C (14°F to +104°F)
-20°C to +50°C (-4°F to +122°F)
5% to 90% Relative Humidity
Meets IP54 rating protection against dust and moisture
SCANNER
