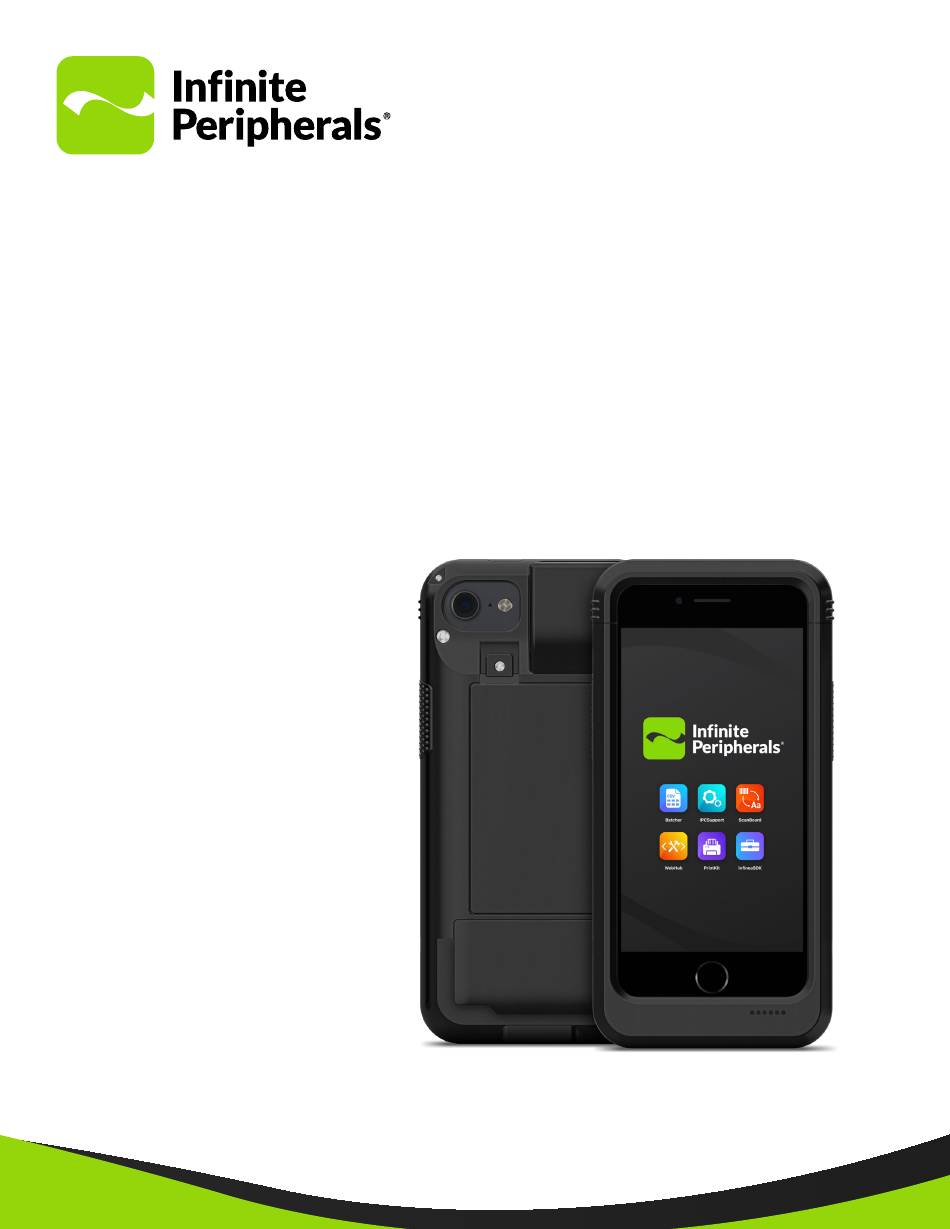

- Page 1 USER MANUAL Linea Pro 7 ® For iPhone 6/6s/7/8 ®...
-
Page 2: Contact Information
Compatibility iPhone 6 iPhone 6s iPhone 7 iPhone 8 Trademarks Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea, Infinea Tab, and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners. -
Page 3: Table Of Contents
Reset Your Linea Pro 7 Assembling Your Linea Pro 7 SRED Encrypted MSR Information Battery Charging Troubleshooting Battery Status Warranty Developing Linea Pro 7 Apps Disclaimer Operational Status Product Returns and Servicing Programmable Options Symbols Turn on the Linea Pro 7 Federal Communications Commissions... -
Page 4: Overview
USER MANUAL- LINEA PRO 7 Overview The Linea Pro 7 allows mobile employees to convert their iOS devices into powerful solutions for the retail, warehousing, supply chain, ticketing, and hospitality industries. The Linea Pro 7 includes 1D or 2D barcode scanner, Bluetooth, and RFID. -
Page 5: Power Supply
USER MANUAL- LINEA PRO 7 Connectivity Barcode Scanner (Optional) RFID Reader 1D/2D laser, high-speed imager, which supports all major 1D/2D ISO/IEC 14443 Type-A/MIFARE: barcodes MIFARE MINI Battery Capacity MIFARE CLASSIC-1K, MIFARE CLASSIC-4K MIFARE ULTRALIGHT, ULTRALIGHT-C Rechargeable Li-ion Battery 3.7V /2400 mAh... -
Page 6: Box Contents
Box Contents • Before using your Linea Pro 7, remove the unit and any included accessories from the shipping carton and verify the contents against the packing list. • Retain all packing materials, invoice, and bill of lading. These may be required to return the device for servicing later, or to process a claim with the shipping carrier. -
Page 7: Product Description
USER MANUAL- LINEA PRO 7 Product Description iOS Camera Opening Top Cover Volume Controls Audio Pass-through 9-pin Lightning™ Connector Top Cover Torx Screw Top Cover Torx Screw Scan Scan Button Button Battery Compartment Battery Status Button & Indicators Scan Engine... -
Page 8: Assembling Your Linea Pro
The unit disconnects from the iOS device if the battery is depleted below 3.6V. The Linea Pro 7 supports pass through charging to the iOS device. The iOS device and Linea Pro 7 may be charged together via the USB Type-C port or by placing it in a Linea Pro 7 Single or 5-Unit Charging Station. -
Page 9: Battery Status
Developing Linea Pro 7 Apps Software is not provided with your Linea Pro 7. Please contact your reseller or Infinite Peripherals for Third Party software solutions. Integrating the Linea Pro 7 into your iOS application requires the use of the Infinite Peripherals Universal Software Developers Kit (SDK). -
Page 10: Programmable Options
Charging current may be set to 500mA (default) or 1000mA. Set Charging The Linea Pro 7 can charge the iPhone using its internal battery by enabling the “setCharging” setting. When the Linea Pro 7 battery is above 20%, it will then start to charge the iOS device battery. -
Page 11: Turn On The Linea Pro
Scan Barcodes The Linea Pro 7 supports scanning 1D/2D barcode symbols. The effective reading distance of the barcode reader varies based on the barcode size. Press and hold the scan button to activate the Linea Pro 7. -
Page 12: Magnetic Stripe Reader (Msr)
The built-in magnetic stripe reader (MSR) has a three-track bi-directional encryption-capable magnetic read head. A single swipe reads information from all three tracks. MSR functions as an unencrypted MSR until an encryption key is injected into the read head by a designated Infinite Peripherals key injection facility. Contact your Infinite Peripherals account representative for information. -
Page 13: Servicing The Linea Pro 7
To prevent downtime, do not allow the battery to fully deplete, or remove the battery from the unit, and always place it on a charging station when not in use for extended periods. Note: If the security features are disabled or the battery is fully discharged and is in Tamper Detect mode, the unit must be sent back to Infinite Peripherals for servicing. -
Page 14: Troubleshooting
Warranty Infinite Peripherals does not warrant, and is not responsible for, any damage to the Linea Pro 7 (“Product”) or the assembled iOS device as a result of liquid or solid particle intrusion into the Product, or damaged caused by dropping the Product with the assembled iOS device. If a material or workmanship defect arises with regard to any Infinite Peripherals product, and a valid claim is received within the Warranty Period, Infinite Peripherals (at our sole discretion) will repair the Product using new or refurbished parts, or replace the Product with a new or refurbished Product. -
Page 15: Disclaimer
Infinite Peripherals, Inc does not assume any product liability arising out of or in connection with the application or use of any product or application described herein. -
Page 16: Federal Communications Commissions
USER MANUAL- LINEA PRO 7...
