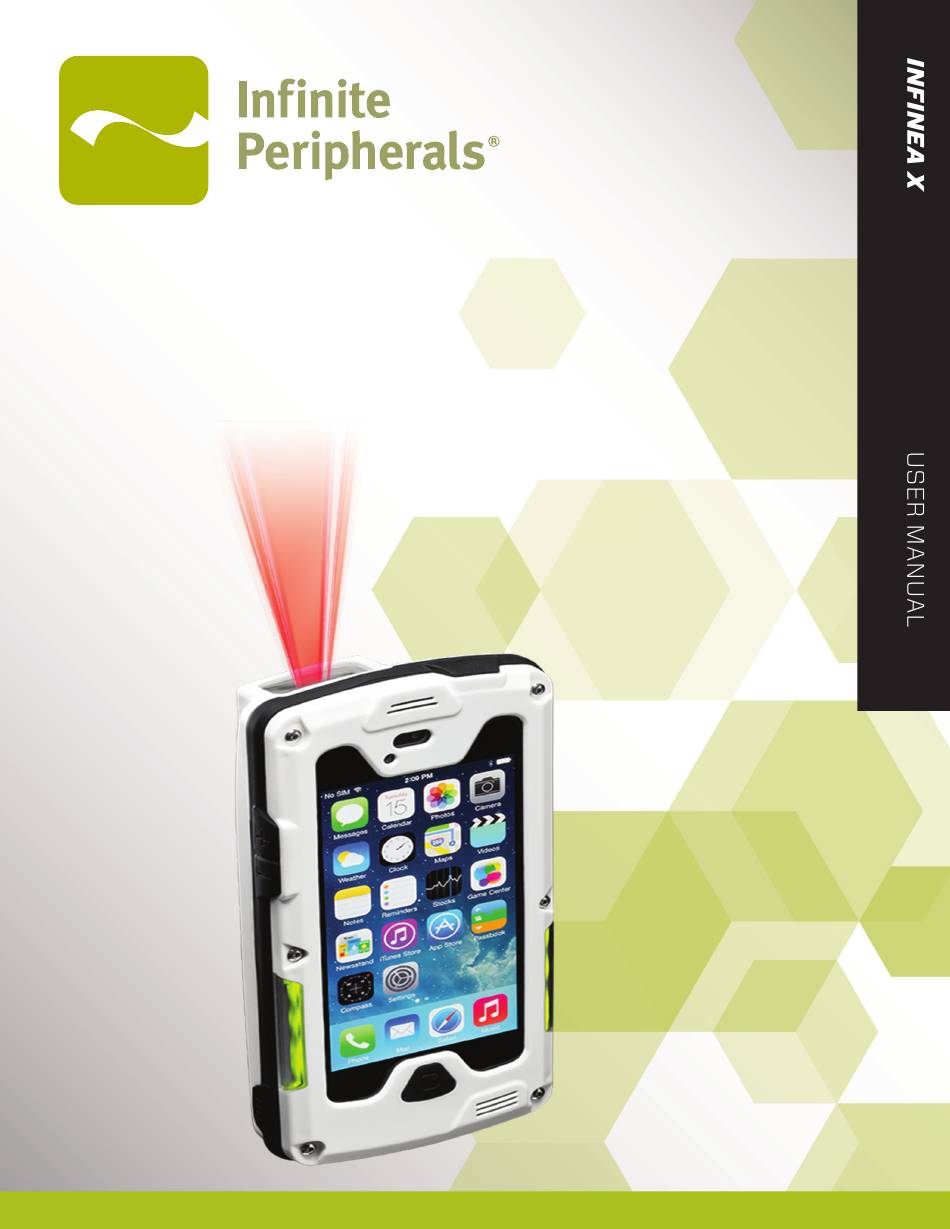

- Page 1 INFINEA ® Infinea X User Manual Page 1 of 1 UM-00001 Version: C...
-
Page 2: Contact Information
Elk Grove Village, IL 60007 Toll Free: (800) 278-7860 Office: (847) 818-1260 Fax: (847) 818-1287 info@ipcmobile.com ipcmobile.com Note: iOS device and other additional items shown on cover page sold separately. Infinea X User Manual Page 2 of 34 UM-00001 Version: C... -
Page 3: Legal Notice
5 mobile digital device TRADEMARK CREDITS Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea, Infinea Tab and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners. Infinea X User Manual Page 3 of 34... -
Page 4: Table Of Contents
ACCESSORIES ....................................6 FEATURES ....................................7 GETTING STARTED ...................................8 ............................Warnings, Cautions, and Notes ....................................First Steps DEVELOPING APPLICATIONS FOR YOUR INFINEA X ....................9 PRODUCT OVERVIEW................................10 ....................................Infinea X ..........................Figures 1a and 1b: Front and Back ..........................Figure 2a and 2b: Top and Bottom ........................ - Page 5 Figure 11: Programmable LED Status ............................ Rear Speaker/Microphone Status ........................Figure 12: Speaker/Microphone Status .......................... Manually Enable/Disable Rear Speaker RESETTING YOUR INFINEA X ............................23 .............................. Figure 13: Reset Feature SYNCING YOUR INFINEA X ............................... 24 ..............................Figure 14: Sync Feature TROUBLESHOOTING ................................25 ..............................
-
Page 6: Box Contents
*Note: Box contents and part numbers may vary based on order configuration. ACCESSORIES Please visit our website at ipcmobile.com, or contact your Infinite Peripherals account representative, for additional information about our current and future product accessory offerings. Infinea X User Manual... -
Page 7: Features
FEATURES The Infinea X allows you to scan barcodes into an iPod touch or iPhone. Before using the Infinea X, the battery should be fully charged. The following table will help you get your Infinea X ready for use. Feature... -
Page 8: Getting Started
Purpose Additional Information See manual section: Install the Battery INSTALLING THE INFINEA X The Infinea X battery is shipped with BATTERY PACK approximately 50% of full charge capacity and should be fully charged before initial use. See manual section: Charge the Infinea X... -
Page 9: Developing Applications For Your Infinea X
DEVELOPING APPLICATIONS FOR YOUR INFINEA X Software is not provided with your Infinea X. Please contact your reseller or Infinite Peripherals for Third Party software solutions. Integrating the Infinea X into your iOS application requires the use of the Infinite Peripherals Universal SDK. -
Page 10: Product Overview
Notification LEDs LEDs iOS Home Button Torx Torx Microphone Screw Screw Barcode Scanner iOS Camera Hole RFID Rear Speaker Battery Latch Battery Figures 1a and 1b: Front and Back Infinea X User Manual Page 10 of 34 UM-00001 Version: C... -
Page 11: Figure 2A And 2B: Top And Bottom
Figure 2a and 2b: Top and Bottom Scan Button Volume Buttons Mini USB Connector Notification Notification LEDs LEDs Battery Front/Rear Status Speaker Toggle Button Figure 3a and 3b: Left and Right Sides Infinea X User Manual Page 11 of 34 UM-00001 Version: C... -
Page 12: Infinea X
Infinea X Infinea X User Manual Page 12 of 34 UM-00001 Version: C... -
Page 13: Assembling Your Infinea X
Take care that the rubber bumper is properly aligned between the top and bottom covers. Failure to do so will compromise the liquid protection features of the Infinea X. Infinea X User Manual Page 13 of 34... -
Page 14: Installing The Battery Pack
Standard and Extended Battery Installation The Infinea X is designed to support Standard and Extended external swappable battery packs. The swappable battery pack design reduces down time of the Infinea X. Follow the steps below to install or replace your Infinea X battery pack. -
Page 15: Charging Your Infinea X
Charging Cup to the bottom of the Infinea X and USB end into an AC wall adapter or by station charger. Due to charging requirements, the Infinea X and iPod or iPhone combination cannot be charged with a USB cable to a PC. -
Page 16: Charging Using An Electrical Outlet
Refer to the table on pg. 15 to determine the battery life in relation to the LEDs. To prevent electrical damage to the Infinea X and/or battery, please use the approved Charging Cup shipped with device. Infinea X User Manual... -
Page 17: Charging The User Replaceable Battery
5 hours for an extended capacity battery. Figure 7: Multi-bay Battery Charger This Battery Charger is intended for use in charging only Infinite Peripherals Infinea X Standard and Extended Battery Packs. Do not use this Battery Charger with any other battery types. -
Page 18: Powering On Your Infinea X
Dual Purpose Scan Button The Infinea X uses a dual-purpose Scan/Power button to power on the Infinea X unit, as well as to scan barcodes. When the Infinea X is left idling for an extended period, the unit automatically goes into sleep mode to preserve the charge of the battery. -
Page 19: Barcode Scanning
Barcode Scanning To scan a barcode: Turn on the Infinea X by pressing the scan button. 2. Position the scan head so that the red target is aimed at the barcode, and the barcode is within the width of the red illumination cross hairs. -
Page 20: Audio
LED will be off when the front speaker is enabled. The rear speaker is now disabled. 2. To enable the rear speaker on the Infinea X, momentarily press the lower right-side button. The blue LED will be lit when the rear speaker is enabled. The front speaker is now disabled. -
Page 21: Status And Operational Modes
STATUS AND OPERATIONAL MODES Programmable LED Status The Infinea X provides application developers with programmable, multi-color LEDs, as shown in the figure below. Supported Colors: • • Blue • Green • Orange Figure 11: Programmable LED Status For information on programming the Infinea X LEDs, refer to the SDK documentation. -
Page 22: Rear Speaker/Microphone Status
Rear Speaker/Microphone Status The Infinea X provides application developers with a programmable feature to Enable/Disable the Infinea X rear speaker and microphone. When the speaker is enabled, a single blue LED is lit on the right side of the unit, as shown in the figure below. -
Page 23: Resetting Your Infinea X
RESETTING YOUR INFINEA X The Infinea X uses the Battery Status indicator button and the Scan button to perform a soft-reset without removing the iOS device. The soft-reset feature cycles the power, allowing the Infinea X to restart. Figure 13: Reset Feature To reset the Infinea X: Press the Scan button and Battery Status indicator buttons simultaneously for about 3 seconds. -
Page 24: Syncing Your Infinea X
SYNCING YOUR INFINEA X To sync an iPod/iPhone with iTunes through the Infinea X, connect the Infinea X to a computer using the Charging Cup, as shown in the figure below. Figure 14: Sync Feature The Infinea X should be in Sync mode. Refer to the iTunes documentation for instruction on syncing your iPod and iPhone. -
Page 25: Troubleshooting
Audio playback not heard from front speakers. • Infinea X front speaker cable is damaged or disconnected. • IOS device is not connected to audio jack. Audio playback not heard from rear speakers. -
Page 26: Troubleshooting-Rfid
Unable to read certain RFID Tags/ • RFID type is not configured. Cards. If you are having problems with your Infinea X which are not addressed by the table above, contact technical support at support@ipcmobile.com. Infinea X User Manual Page 26 of 34... -
Page 27: Cleaning Your Infinea X
CLEANING YOUR INFINEA X Precautions The Infinea X is certified to meet IP54 Ingress Protection Marking per IEC 60529. Per the IP54 rating, the Infinea X is protected against interference with normal operation of the Infinea X sled caused by dust and splashing liquids. -
Page 28: Technical Data
4 programmable color LEDs (green, blue, red and orange) Indicators Audio: • Electromagnetic Buzzer and loudspeaker CERTIFICATIONS General CE, FCC, Apple MFi 1.22m (4 ft.) Drop Rating IP54 rated Infinea X User Manual Page 28 of 34 UM-00001 Version: C... - Page 29 ENVIRONMENT Temperature: 10°C to +40°C (50°F to 104°F) Operating Environment Humidity: 5 to 90% RH Temperature: -20°C to +50°C (-4°F - +122°F) Storage Environment Humidity: 5 to 90% RH Infinea X User Manual Page 29 of 34 UM-00001 Version: C...
- Page 30 4 programmable color LEDs (green, blue, red and orange) Indicators Audio: • Electromagnetic Buzzer and loudspeaker CERTIFICATIONS General CE, FCC, Apple MFi 1.22m (4 ft.) Drop Rating IP54 rated Infinea X User Manual Page 30 of 34 UM-00001 Version: C...
- Page 31 ENVIRONMENT Temperature: 10°C to +40°C (50°F to 104°F) Operating Environment Humidity: 5 to 90% RH Temperature: -20°C to +50°C (-4°F - +122°F) Storage Environment Humidity: 5 to 90% RH Infinea X User Manual Page 31 of 34 UM-00001 Version: C...
-
Page 32: Warranty
WARRANTY Infinite Peripherals does not warrant, and is not responsible for, any damage to the Infinea X (“Product”) or the assembled iOS device as a result of liquid or solid particle intrusion into the Product, or damaged caused by dropping the Product with the assembled iOS device. If a material or workmanship defect arises with regard to any Infinite Peripherals’... -
Page 33: Symbols For Use
Serial Number Part Number Waste Electrical and Electric Equipment Do Not Autoclave Do Not Incinerate Mark of conformity to European Union Directives Complies with part 15 of the FCC rules Infinea X User Manual Page 33 of 34 UM-00001 Version: C... -
Page 34: Federal Communications Commission
End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Infinea X User Manual Page 34 of 34 UM-00001 Version: C...
