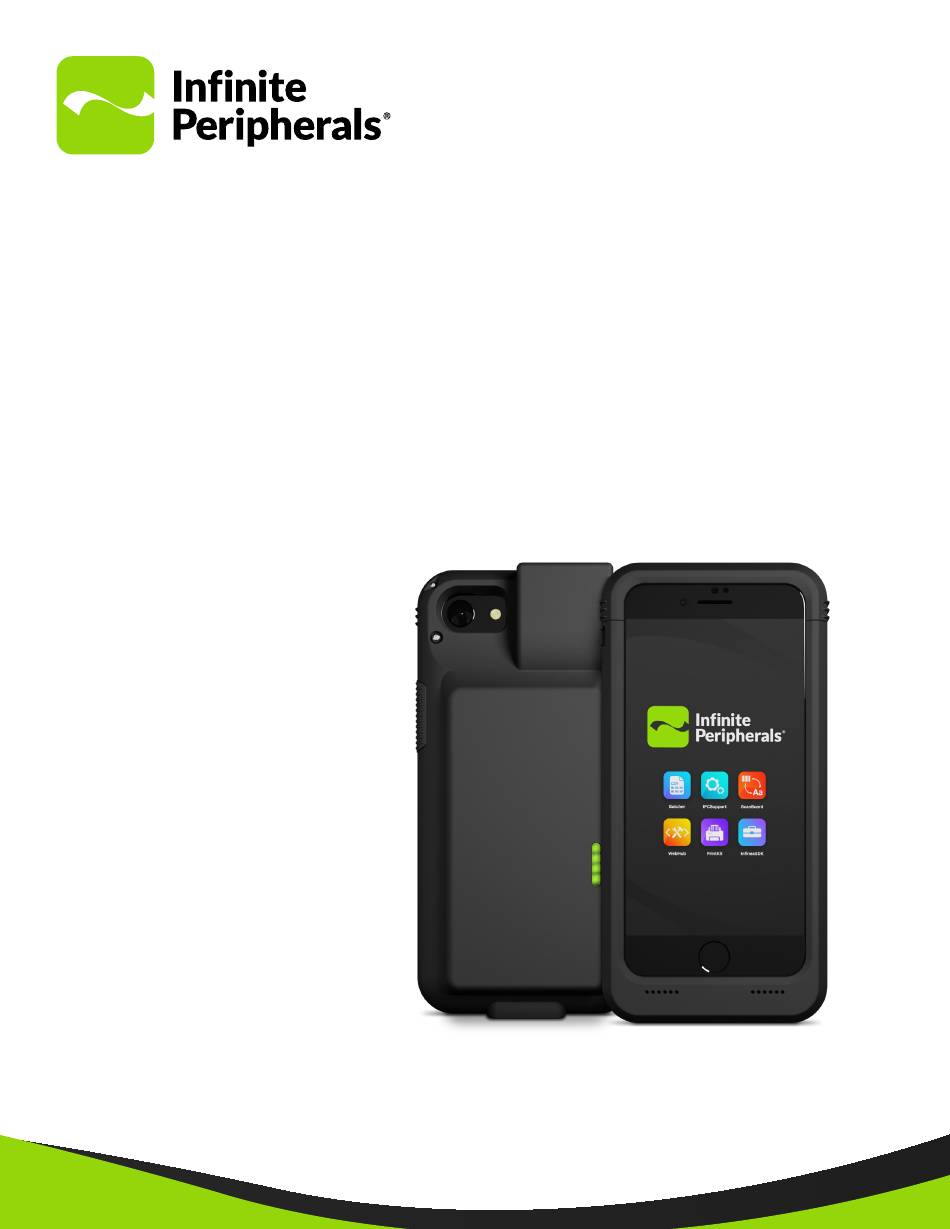

- Page 1 USER MANUAL Linea Pro 7 UHF ® For iPhone 6s / 7 / 8 ®...
-
Page 2: Legal Notice
Please note that the use of this accessory with an iPhone may affect wireless performance. Compatible Devices iOS Compatibility iPhone 6s / 7 /8 Trademarks Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea, Infinea Tab, and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners. -
Page 3: Table Of Contents
USER MANUAL — LINEA PRO 7 UHF Table of Contents Legal Notice Programmable Options Compatible Devices Charging Current Trademarks Set Charging Overview Enable Scan Button Features Scan Mode Accessories Pass-Through Sync Physical Dimensions Idle Time Connectivity Turn on the Linea Pro 7 UHF... -
Page 4: Overview

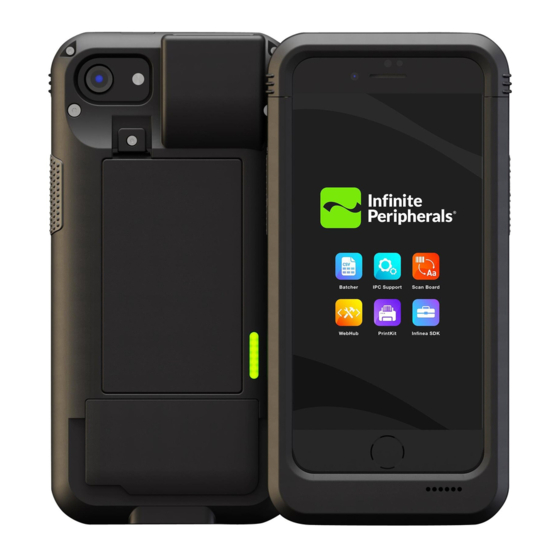

USER MANUAL — LINEA PRO 7 UHF Overview The Linea Pro 7 UHF combines 1D/2D reader and UHF RFID reader functionality into a single device. A high-performance optical imager scans thousands of barcodes on a full charge. Optional high-frequency RFID capabilities is also available. -
Page 5: Physical Dimensions
USER MANUAL — LINEA PRO 7 UHF Technical Specifications Physical Dimensions Compatibility Dimensions (L x W x H) iPhone 6s, 7, 8 76.9mm x 156.7mm x 26.3mm (3.03” x 16.7” x 1.04”) Buttons Weight Two scan buttons 148g (5.22oz) Battery status buttons... -
Page 6: Box Contents
USER MANUAL — LINEA PRO 7 UHF Box Contents • Before using your Linea Pro 7 UHF, remove the unit and any included accessories from the shipping cartoon and verify the contents against the packing list. • Retain all packing materials, invoice, and bill of lading. These may be required to return the device for servicing later, or to process a claim with the shipping carrier. -
Page 7: Product Description
USER MANUAL — LINEA PRO 7 UHF Product Description Battery Status/Fuel Gauge Scan Buttons on Right/Left Sides USB-C Port Manual Reset Button... -
Page 8: Assembling Your Linea Pro 7 Uhf
30 minutes, if fully discharged. In addition, the Linea Pro 7 UHF supports pass-through charging to the iOS device. Both your iOS device and Linea Pro 7 UHF may be charged together using the USB Type-C port or by placing it in a Linea Pro 7 UHF charging dock. -
Page 9: Developing Linea Pro 7 Uhf Apps
Set Charging The Linea Pro 7 UHF can charge the iPhone using its internal battery by enabling the “setCharging” setting. When the Linea Pro 7 UHF battery is above 20%, it will then start to charge the iOS device battery. -
Page 10: Scan Mode
USER MANUAL — LINEA PRO 7 UHF Scan Mode Linea Pro 7 UHF supports the following scan modes: Single Scan Scanning a single barcode by pressing and releasing either Scan button. Multi Scan Scanning multiple barcodes by pressing and holding either Scan button. -
Page 11: Turn On The Linea Pro 7 Uhf
Barcode/UHF Reader The scan engine in the Linea Pro 7 UHF supports one-dimensional (1D) and two-dimensional (2D) barcode symbols. The effective reading distance of the barcode reader varies based on the barcode size. For example, 15-20 cm (5.9-7.9 inches). -
Page 12: Uhf/Rfid Reader
Data is sent from the Linea Pro 7 UHF RFID reader to the iOS device. Servicing the Linea Pro 7 UHF The Linea Pro 7 UHF is designed with a 3.6V 2330mAH battery, which can be replaced. Contact your Infinite Peripherals account representative for details. -
Page 13: Troubleshooting
Unable to scan specific tags or cards • RFID type not enabled. • RFID type not supported. • Refer to Technical Specifications for additional information. Note: If problems persist with your Linea Pro 7 UHF, contact a Mobility Expert at https://ipcmobile.com/devices/. -
Page 14: Warranty
Warranty Infinite Peripherals does not warrant, and is not responsible for, any damage to the Linea Pro 7 UHF (“Product”) or the assembled iOS device as a result of liquid or solid particle intrusion into the Product, or damaged caused by dropping the Product with the assembled iOS device. If a material or workmanship defect arises with regard to any Infinite Peripherals product, and a valid claim is received within the Warranty Period, Infinite Peripherals (at our sole discretion) will repair the Product using new or refurbished parts, or replace the Product with a new or refurbished Product. -
Page 15: Symbols
USER MANUAL — LINEA PRO 7 UHF Symbols Symbol Description Refer to the instructions before using this product Manufacturer Manufacture Date Caution Serial Number Part Number Waste Electrical and Electric Equipment Complies with part 15 of the FCC rules...
