Appendix D – Replacing Flat-Panel Display Bulbs

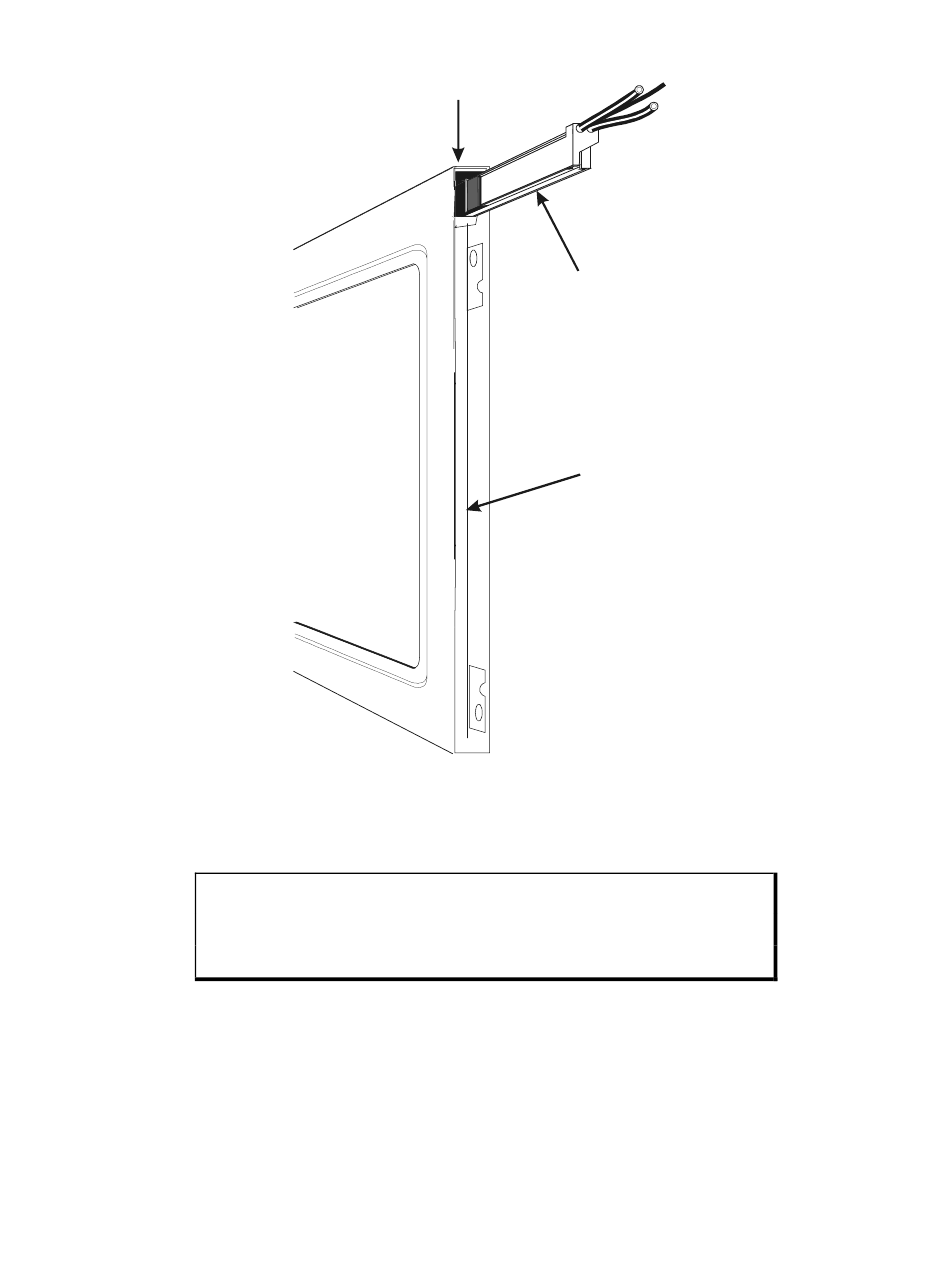

BULB ASSEMBLY
RELEASE CLIP
BULB ASSEMBLY
(PARTIALLY RETRACTED)
DISPLAY
ASSEMBLY
Figure D-4. Model #LQ12S41
13. Insert the new bulb assembly, and push in until the tab locks in place.
Note
Xycom Automation recommends replacing both bulbs at the same
time.
14. Repeat steps 11 and 12 for the second bulb assembly.
15. Reverse steps 1 through 10 to reassemble the unit
75
