3500 Series Flat Panel Industrial PC
Back Panel

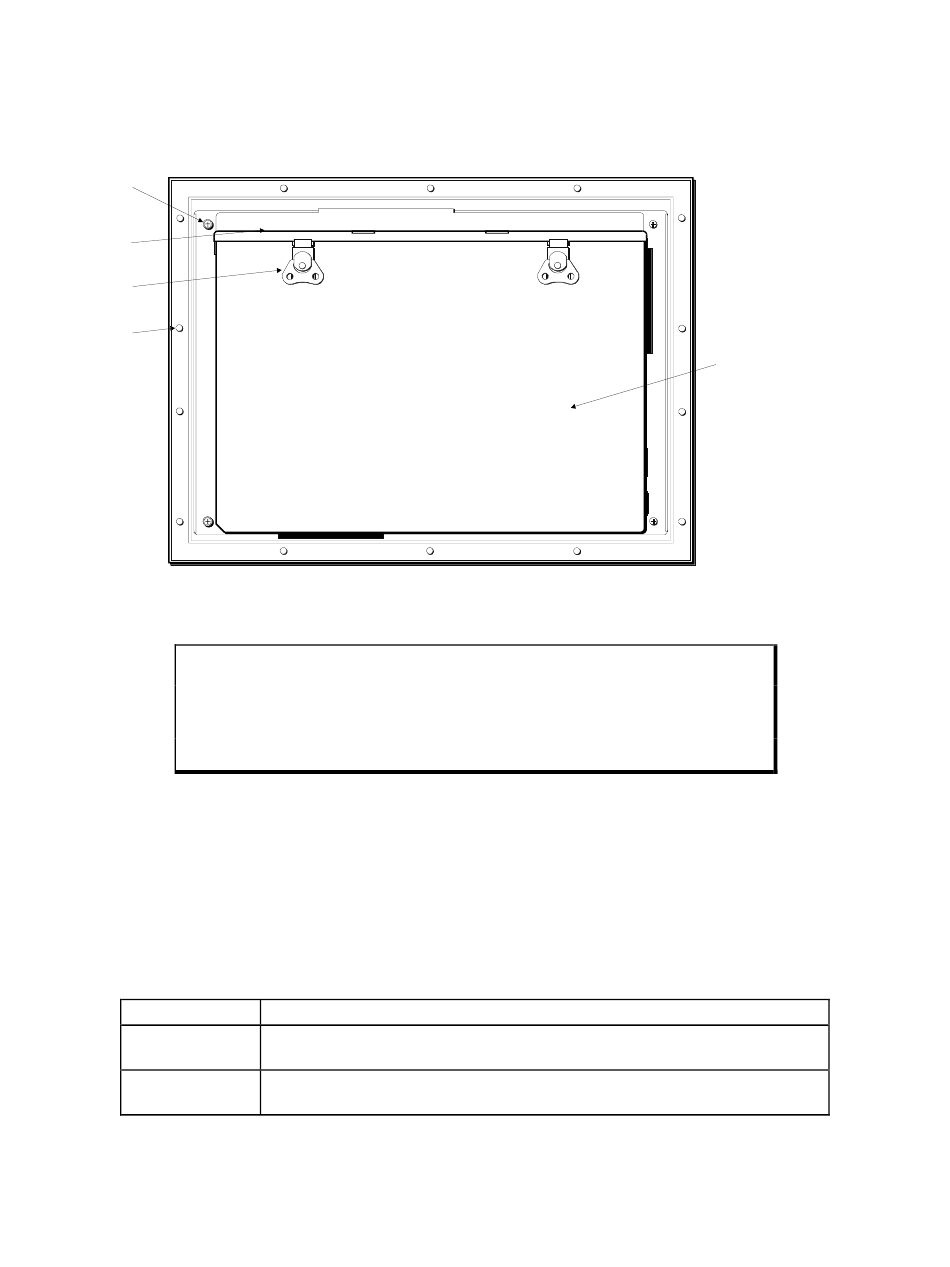

Figure 3-5 illustrates the system's back panel.
SAFETY
RETENTION
SCREW (4)
LID
LID LATCH (2)
MOUNTING
STUD (14)
If your system has a touchscreen, keypad, keypad LED, or mouse cable,
disconnect the cable(s) from the CPU board before removing the back of
the unit from the front bezel.
To remove the lid, lift the two latches along the top of the back panel.
To remove the front panel, use a Phillips-head screwdriver and remove the four screws
located in the top and bottom corners (refer to Figure 3-5).
Bottom Panel
The features on the bottom panel are listed below.
Feature
Product ID La-
bel
Vent and Filter
18
Figure 3-5. Back Panel
Note
Description
The product ID label is located on the back panel. This label contains
the model number and serial number of the unit.
The bottom of the unit contains a vent and filter for circulation. This
aids in the cooling of the internal components.
BACK PANEL
