Chapter Three - Installation

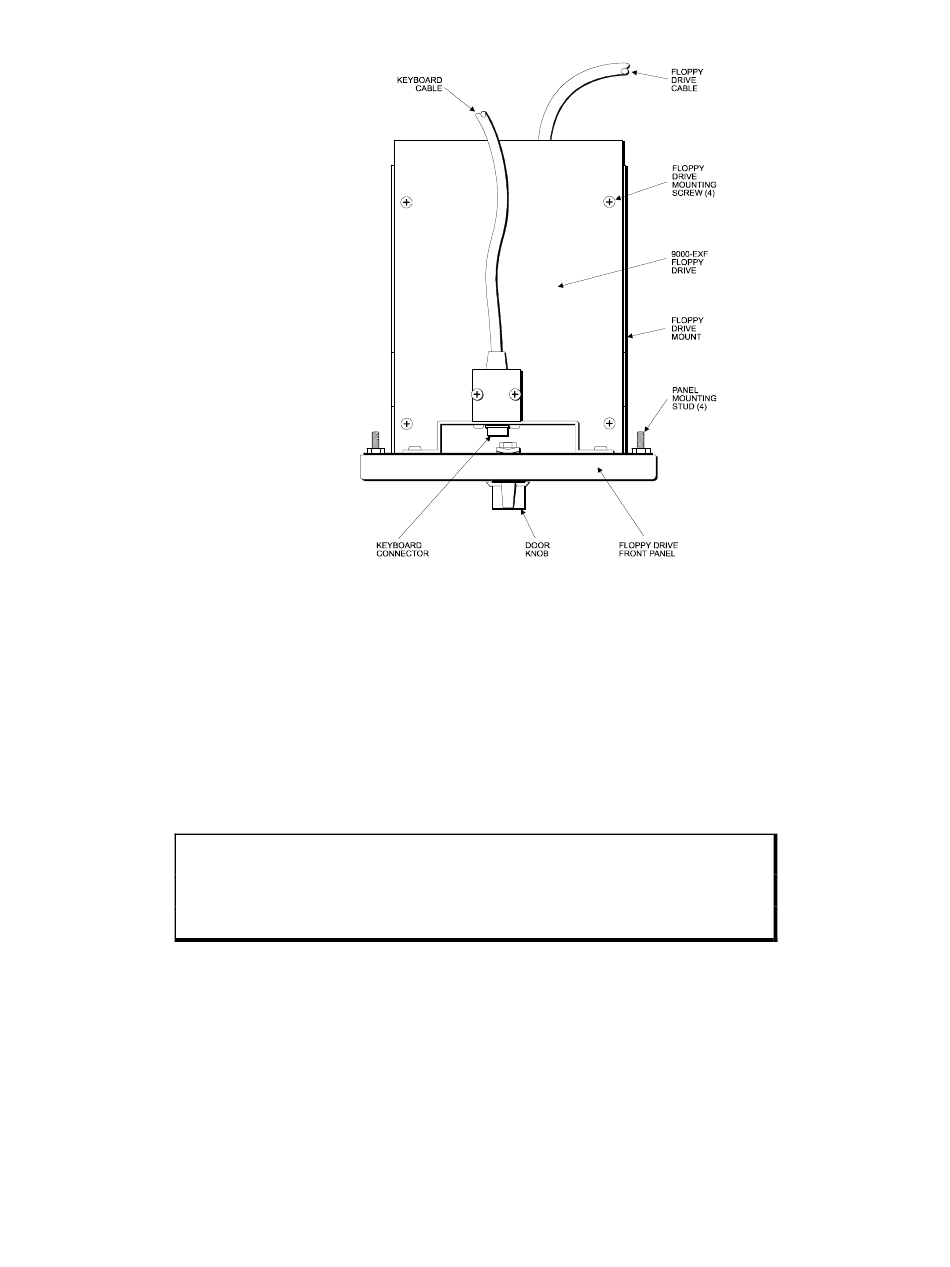

Figure 3-10. Floppy Drive - Front Mounting Option (top view)

Front Access Keyboard and Floppy Connectors

You can access these keyboard and floppy drive connectors with the 9000-FKA kit in
installations that provide a cutout for the front mounted connections, you must install
the 9000-FKA kit. The kit's keyboard cable connects to a PS/2 stacked mini-din lo-
cated on the side of the unit. The floppy drive cable connects to a port mounted in the
internal floppy bay. Since the 3500 series only supports one floppy drive, you cannot
use the external floppy option if the unit has an internal floppy drive. See Figure 3-11
for cutout dimensions.
Note
Make sure the keyboard and floppy drive cables reach the ports on the
unit before making the cutout.
