Xycom Controller
For VNHS with the AHIP6 board: If touch-
screen is factory installed, the touchscreen is set
up on the AUX port, making this port unavail-
able.
If you want to reconfigure the touchscreen to use the COM2
port, perform the following steps:
1. Disconnect the power.
2. Remove the lid.
3. Remove the touchscreen controller card (see Figure 3-18B).
A B
J1
J2
J3
J4
J5
JUMPERS
J7
J8
J9
2
1

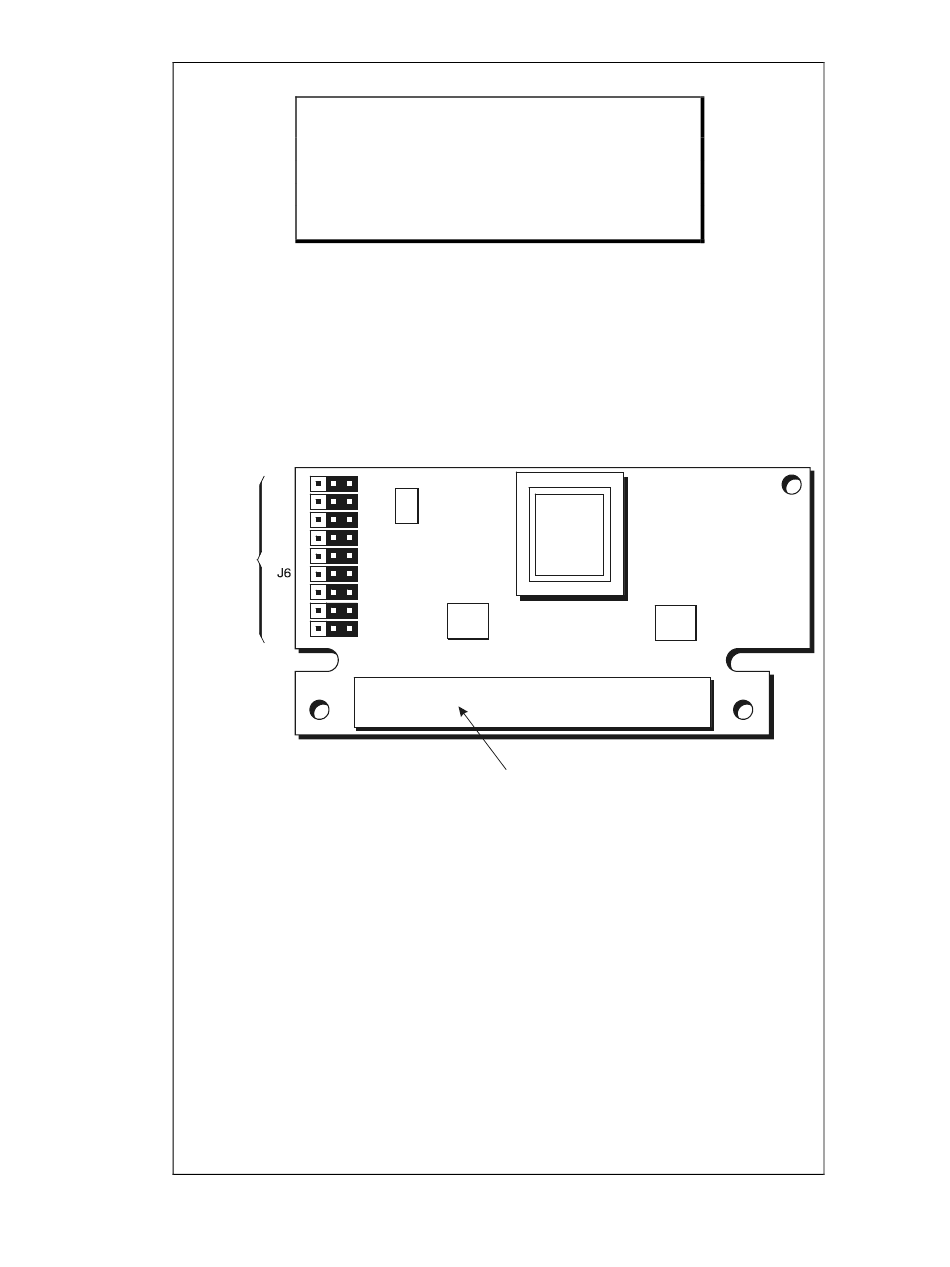

Figure 3-18B. Touchscreen controller card
4. Reconfigure jumpers J1-J9. Position A = COM2. Position B
= PS/2 AUX. (Note: all jumpers must be in the A or B po-
sition).
5. Reinstall the touchscreen controller card.
6. Reboot the computer.
7. Using the touchscreen manual, do the following:
•
•
•
8. Replace the lid.
Note
TOUCH SCREEN
CONTROL CONN.
Uninstall the UPDD Touch driver.
Locate the Touch-Base Serial mode driver on the Xy-
com DOC CD.
Follow the instructions on the readme.txt file for the se-
rial mode UPDD driver.
Chapter Three - Installation
