3500 Series Flat Panel Industrial PC
Mount the floppy drive access door to the filler plate or the panel, using the four mount-
ing nuts as shown in Figure 3-9. Torque the nuts to 35 in/lb. (3.95 Newton Meters).
Figure 3-10 shows an overhead view of the Front Floppy Kit with the floppy drive
mounted into the rack.
Do not attach the drive with a disk installed to avoid corrupting a disk
when using the external floppy drive.
22

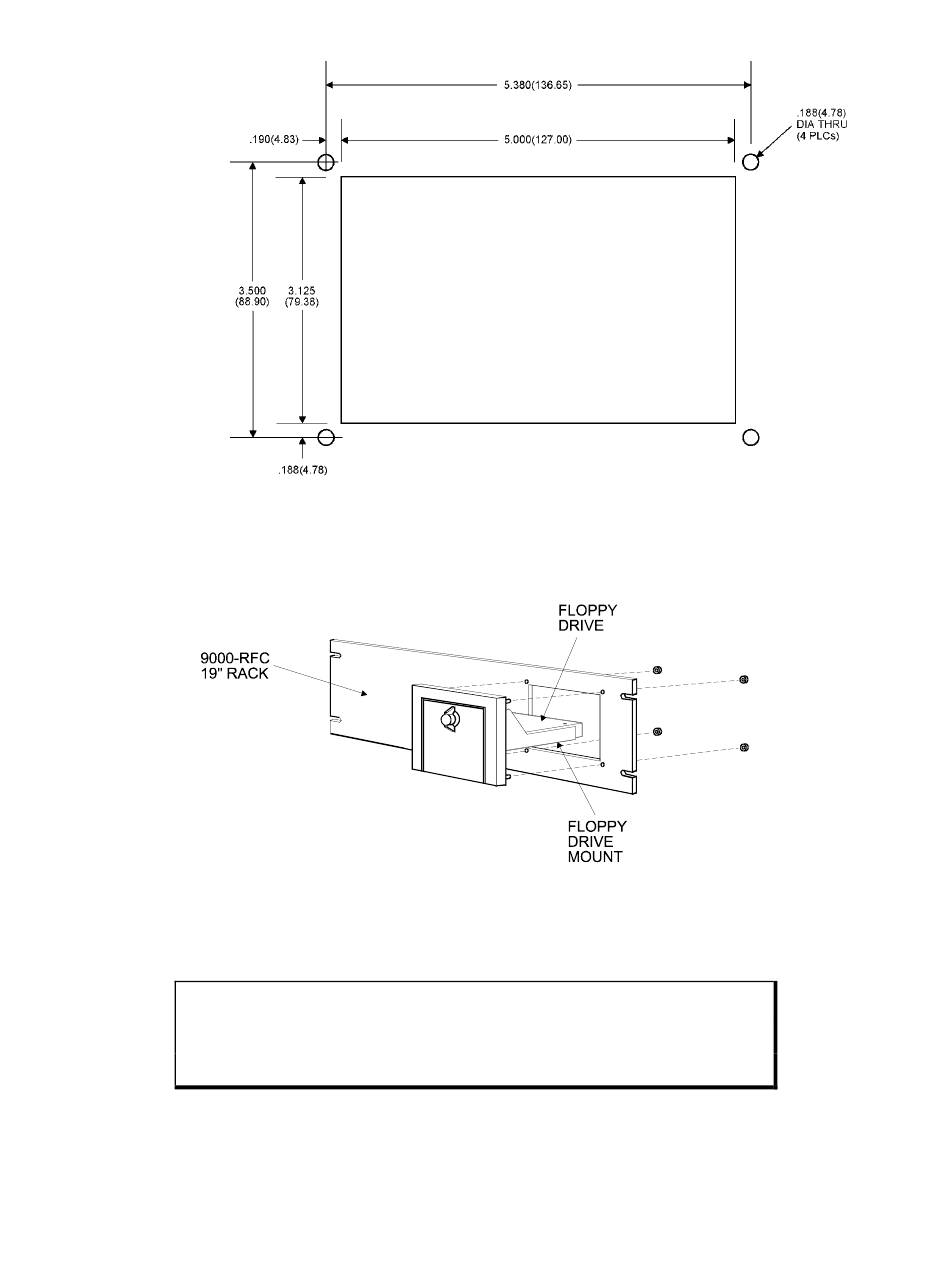

Figure 3-8. Front Mounted Floppy Cutout Dimensions
Figure 3-9. Floppy Drive - Front Mounting Option
Note
