3500 Series Flat Panel Industrial PC
4. Set the unit with the front panel down and loosen the four captive screws holding
the front panel to the display adapter plate.
5. While securely holding the front panel, flip the unit over.
6. Lift off the front panel, and set it aside.
7. Unscrew the four screws that attach the flat panel display to the standoffs.
8. Disconnect the bulb connector from the inverter card.
9. Gently lift the left side of the flat panel display, and unscrew the two screws to
disconnect the data interface connector.
10. Turn the display face up on a protective surface.
11. Referring to Figure D-2, remove the two set screws and slide the bulb assemblies
out.
B U L B AS S E MB L Y S CR E WS (2)
(R emove to free bulb as s embly from dis play)
72

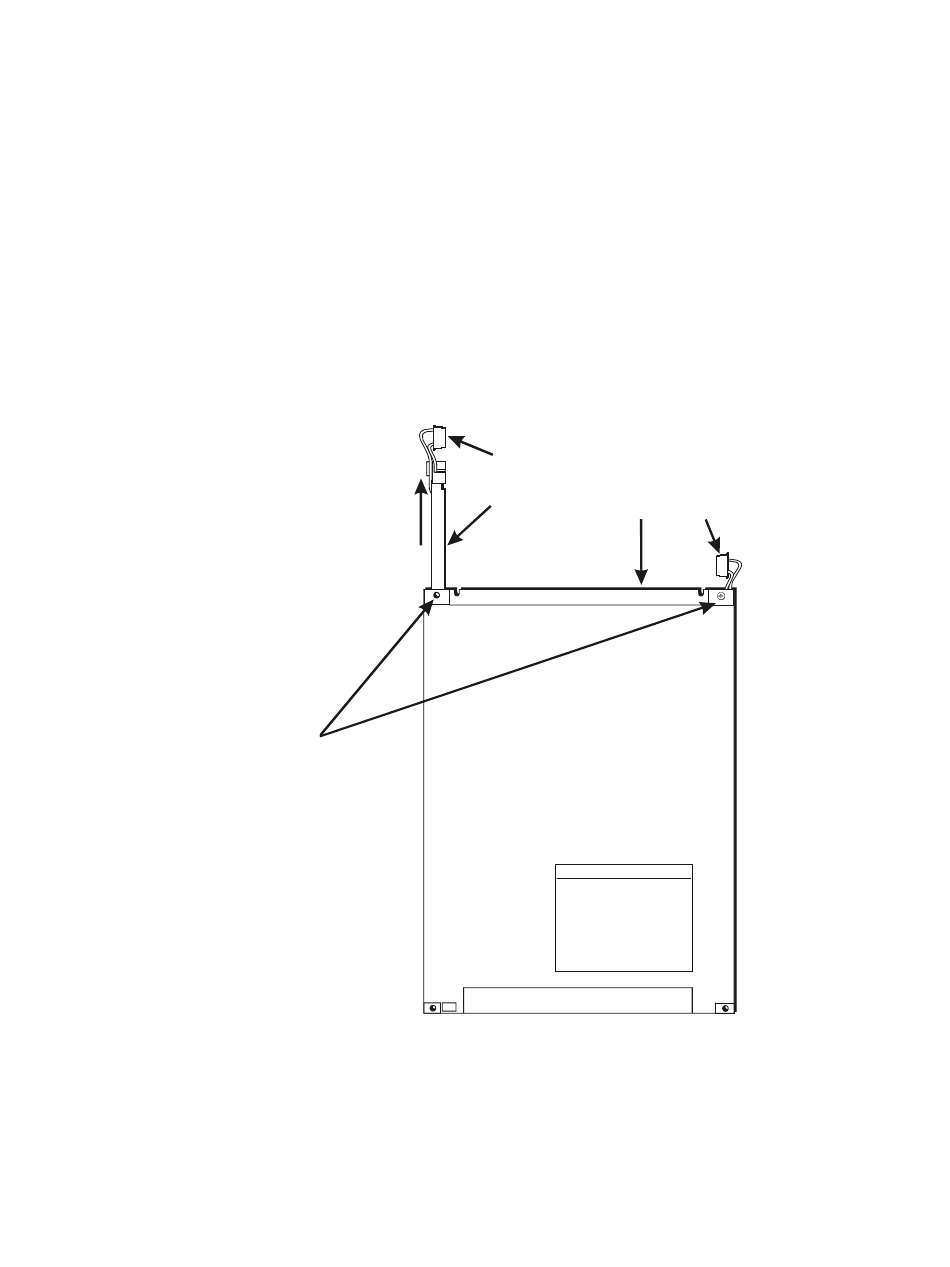

Figure D- 2. Model #LQ150X1DG16- Rear View
B U L B
CONNE CT OR
B U L B
F L AT
AS S E MB L Y
P ANE L
(P artially
DIS P L AY
pulled out)
B U L B
CONNE CT OR
