Advanced Scanner Settings - Socket Bluetooth iPAQ User Manual

A S
DVANCED CANNER
Note: Advanced settings can only be configured for the Bluetooth CHS v2.
1. In SocketScan Settings, click on the CS tab.
2. At the bottom of the CS screen, the Bluetooth CHS battery level will be
indicated by a status bar. Click Advanced.

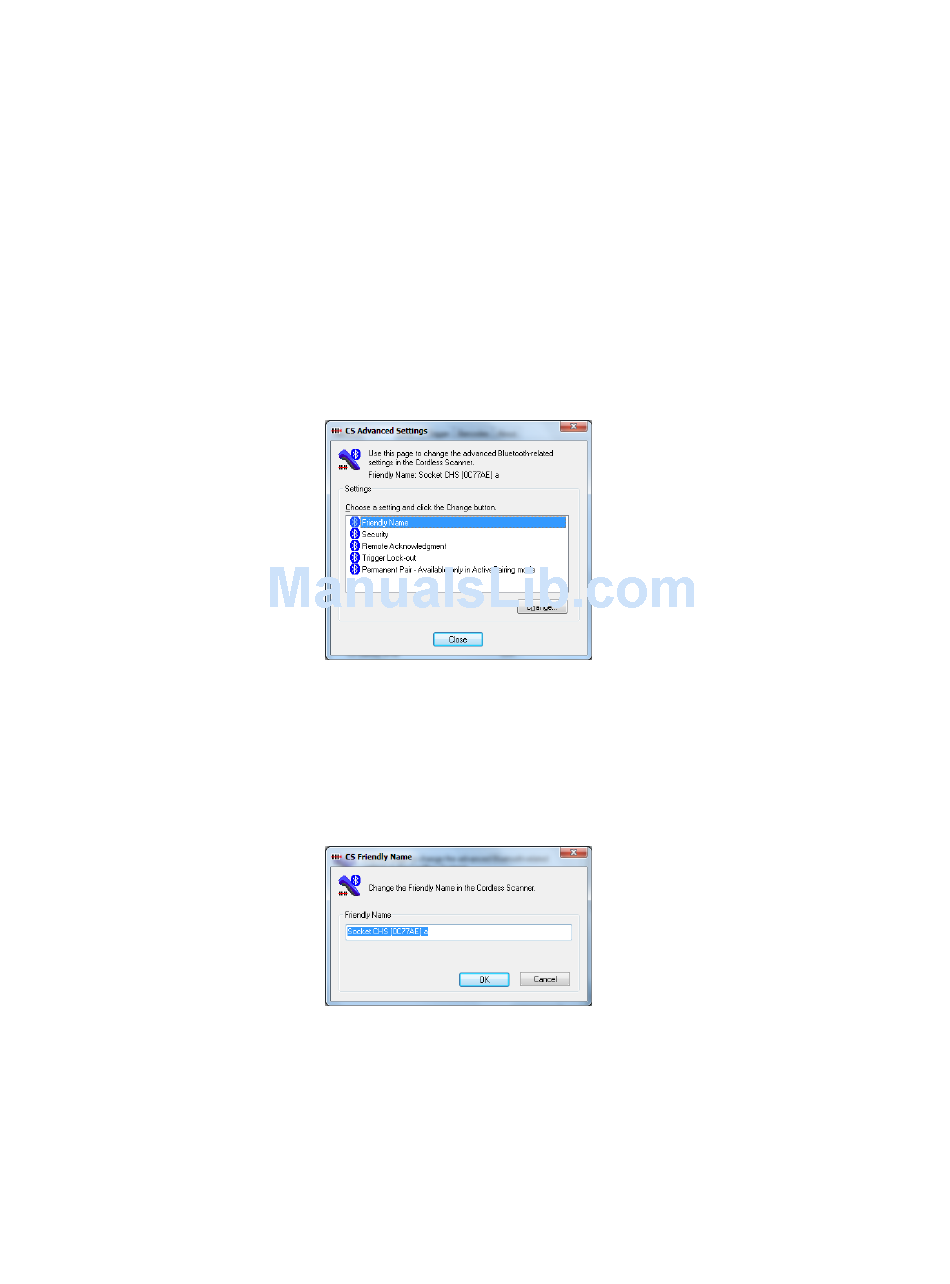

3. The CS Advanced Settings screen will appear, reporting the Bluetooth
friendly name assigned to the Bluetooth CHS.
4. If desired, select a setting and click Change.
5. In the screen that appears, enter any changes and click OK.
• Friendly Name: Enter a new friendly name and click OK.
IMPORTANT! Make sure the friendly name includes the string "CHS" if
you want to also use the Bluetooth CHS with a Windows Mobile
powered device. Otherwise, Connect!Agent software will not be able
to find the Bluetooth CHS.
32
S
ETTINGS
