Quick Start Guide

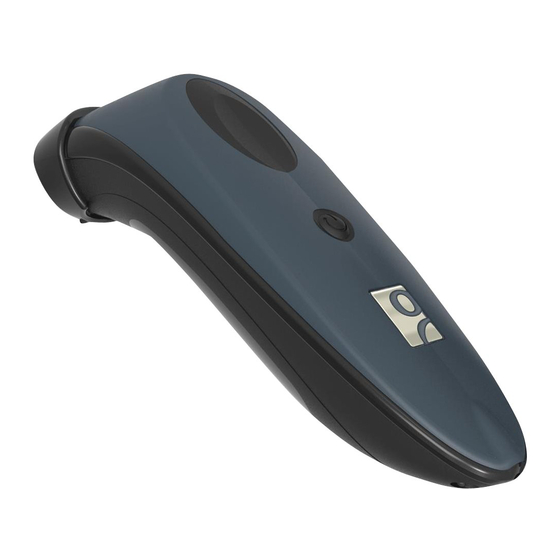

Cordless Hand Scanner
®
with Bluetooth
Wireless Technology
For Windows XP and XP Tablet Edition
Series 7
System Requirements
Your Windows XP computer should satisfy these minimum requirements:
• Windows XP or XP Tablet Edition
• Any of the following Bluetooth stacks*:
− IVT BlueSoleil version 1.6.1.4 (from Socket CF/USB Connection Kits)
− Broadcom (Widcomm)
− Microsoft Windows XP Service Pack 2
− Toshiba Bluetooth stack 3.0 or greater for Windows XP
*Other stacks may be compatible but have not been tested by Socket. Only the Microsoft, Toshiba and
IVT Bluetooth stacks are compatible with the optional Connect!Agent software.
Package Contents
• Socket Cordless Hand Scanner
• AC charging adapter with international plugs
• 2 NiMH rechargeable AAA batteries
• Lanyard with retractable tether
(not available in Europe/Middle East/Africa region)
• Software installation CD
Also pictured: Charging cradle for CHS 7P
(available separately).
Product Registration
We highly recommend that all customers register their Socket products. Registered
users receive the following benefits:
• Priority for technical support
• Special offers for future products and upgrades
• The latest new product information
Register online at:
www.socketmobile.com/support/support/new/
SocketCare™
Socket offers SocketCare service programs for the Cordless Hand Scanner. For more
information, please visit:
www.socketmobile.com/support
