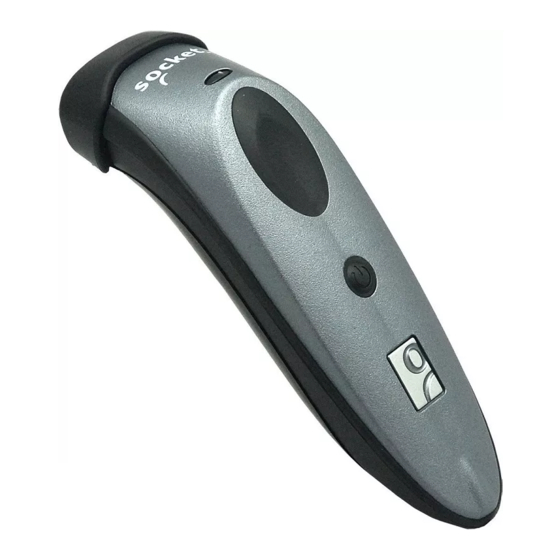

Socket CHS 7Xi Quick Start Manual

Bluetooth cordless hand scanner (chs) 2d models
Hide thumbs Also See for CHS 7Xi:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
This document pertains to the following CHS models:
• 7Xi
• 7XiRx
The part number (P/N) is labeled inside the battery compartment.
© 2010-2013 Socket Mobile, Inc. All rights reserved. Socket, the Socket logo, SocketScan, Socket Bluetooth Cordless Hand Scanner, and Business Mobility Now! are registered
trademarks or trademarks of Socket Mobile, Inc. The Bluetooth word mark and logo are registered trademarks of the Bluetooth SIG, Inc. USA, and any use by Socket Mobile, Inc. is
under license. All other trademarks and trade names contained herein may be those of their respective owners.

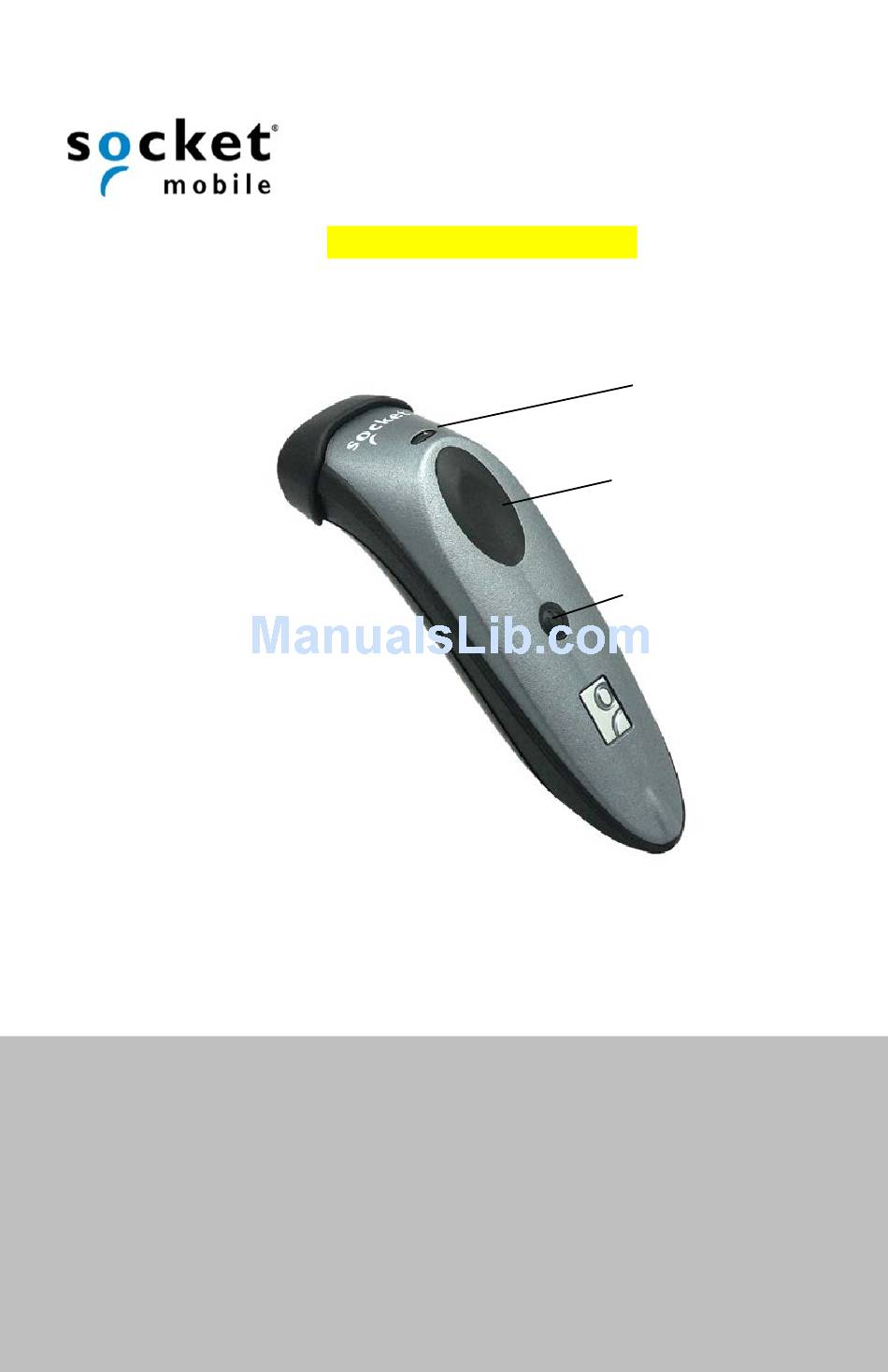

QUICK START GUIDE

®
Bluetooth
2D Models — CHS 7Xi, 7XiRx
SKU# CX2864-1336 (P/N 8550-00059)
SKU# CX2866-1338 (P/N 8550-00060)
Cordless Hand Scanner (CHS)
Trigger button
LED

Power button

(also for iOS Keyboard Pop-up)
Model shown: CHS 7Xi

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHS 7Xi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Socket CHS 7Xi

Summary of Contents for Socket CHS 7Xi

  • Page 1: Quick Start Guide

    © 2010-2013 Socket Mobile, Inc. All rights reserved. Socket, the Socket logo, SocketScan, Socket Bluetooth Cordless Hand Scanner, and Business Mobility Now! are registered trademarks or trademarks of Socket Mobile, Inc. The Bluetooth word mark and logo are registered trademarks of the Bluetooth SIG, Inc. USA, and any use by Socket Mobile, Inc. is...

  • Page 2: Package Contents

    • Phone: +1-510-933-3020 USA/Canada 800-279-1390 Software Development Kit: SocketScan 10 SDK for Apple iOS, Android, BlackBerry and Windows is available to members of the Socket Mobile Developer Program ($19.95/year). Lear more at: http://developer.socketmobile.com/ Thank you for choosing Socket Mobile!

  • Page 3: Scanner Setup

    • Red LED = Charging • Green LED = Fully charged Besides the included AC adapter and USB to DC plug cable, Socket offers optional charging cradles (sold separately). • Cradle for CHS 7Xi: SKU# AC4055-1382 •...

  • Page 4: Basic Functionality

    BASIC FUNCTIONALITY Powering ON: Press and hold down the small power button until the LED turns blue and the CHS beeps twice (low-high). Powering OFF / Disconnecting: Press and hold down the small power button until the CHS beeps twice (high-low). Scanning Barcodes: After connecting the CHS to your device, open an application.
  • Page 5 HID vs. SPP vs. iOS MODE The CHS 7Xi supports three modes, based on different types of Bluetooth connections: • Human Interface Device (HID): Default mode. No software installation is required. • Serial Port Profile (SPP): Highly recommended, allows two-way communications with Android, BlackBerry and Windows.

  • Page 6: Apple Ios

    3. Enable Bluetooth on the Apple device. A Bluetooth device search will begin. 4. In the list of found devices, select Socket 7Xi [xxxxxx]. If prompted, tap Pair. The characters in brackets are the last 6 characters of the Bluetooth Address, which is labeled in the CHS battery compartment.
  • Page 7 3. Enable Bluetooth on the Apple device. A Bluetooth device search will begin. 4. In the list of found devices, select Socket 7Xi [xxxxxx]. If prompted, tap Pair. The characters in brackets are the last 6 characters of the Bluetooth Address, which is labeled in the CHS battery compartment.
  • Page 8 7. In SocketScan 10, touch Menu | Input Method. Select SocketScan 10. Touch Back To pair and connect the CHS and Android device: (required only the first time you connect) 1. In SocketScan 10, touch Menu | Socket EZ Pair. 2. Touch On screen. Touch 2D Scanner.
  • Page 9 6. The PC will automatically try to pair with the CHS. If prompted to allow the pairing, click Yes. If prompted for a passkey, enter 0000 (four zeroes). 7. After the CHS connects, it will beep once. Close Socket EZ Pair. 8. If you have not registered the CHS, a registration screen will appear. If desired, register your CHS.
  • Page 10 Turn on Bluetooth on your PC or PDA and start a device search / add a new device. In the list of found devices, select Socket 7Xi [xxxxxx]. If prompted for a passkey, enter 0000 (four zeroes). If prompted to select services, select Input Device.

  • Page 11: Command Barcodes

    COMMAND BARCODES Scan command barcode(s) to quickly configure the CHS. Make sure the CHS is not connected to a host computer or device before scanning a command barcode! By default, the CHS is in HID mode as a Keyboard device. For a complete set of command barcodes, download the Command Barcodes Sheet: http://www.socketmobile.com/pdf/data-collection/command-barcodes-sheet_7X.pdf Bluetooth Connection Mode...
  • Page 12 Factory Defaults Factory Reset Revert all settings to factory defaults. The CHS powers off after scanning this barcode. Language Settings (only for HID mode) English French German Spanish Apple iOS Keyboard (only for HID mode) The Double Press feature enables you to open the iOS onscreen keyboard after quickly pressing the CHS power button two times.
