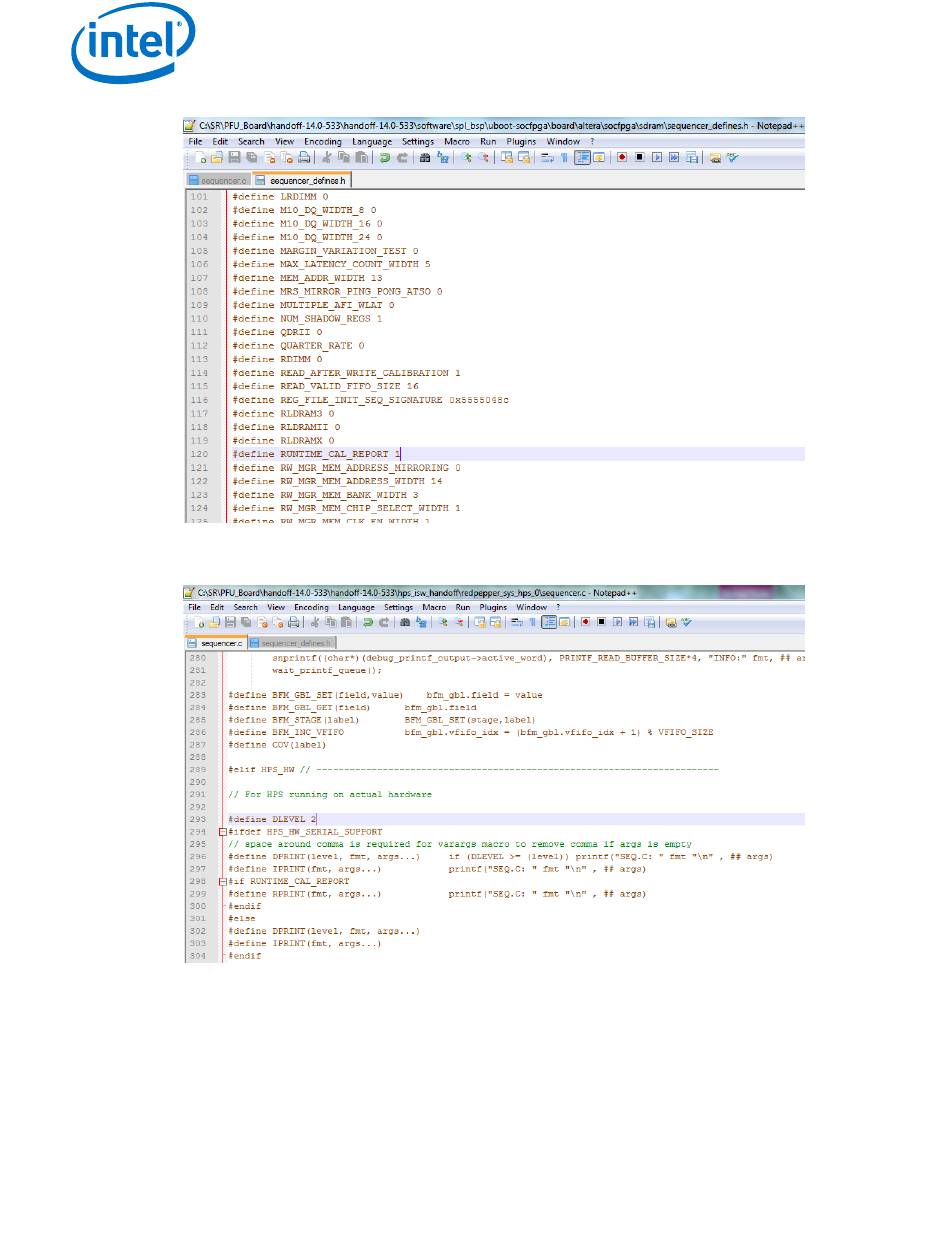

5.4.1.2. Change DLEVEL To Get More Debug Information
5.4.1.3. Enable Example Driver for HPS SDRAM
• Enable with Hardware Diagnostic Option in bsp-editor. Note: Example driver is
only available in Intel Quartus Prime version 14.0 and later.
— PRBS31 Data pattern
— Write to random address => Read from random address
— Can select different coverage by changing parameter in spl.c
