1

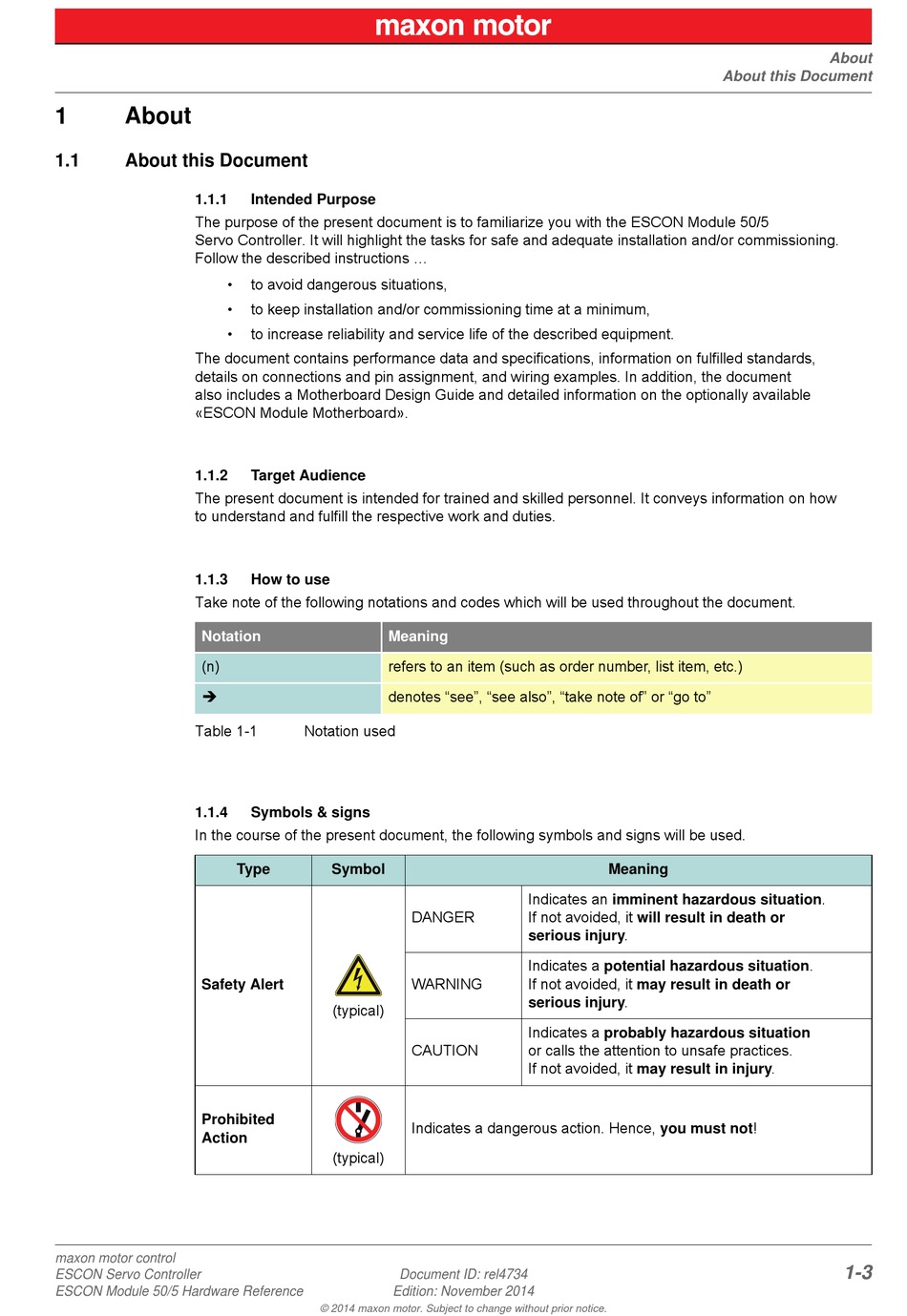

About
1.1
About this Document
1.1.1
The purpose of the present document is to familiarize you with the ESCON Module 50/5
Servo Controller. It will highlight the tasks for safe and adequate installation and/or commissioning.
Follow the described instructions ...
The document contains performance data and specifications, information on fulfilled standards,
details on connections and pin assignment, and wiring examples. In addition, the document
also includes a Motherboard Design Guide and detailed information on the optionally available
«ESCON Module Motherboard».
1.1.2
The present document is intended for trained and skilled personnel. It conveys information on how
to understand and fulfill the respective work and duties.
1.1.3
Take note of the following notations and codes which will be used throughout the document.
Notation
(n)
Table 1-1
1.1.4
In the course of the present document, the following symbols and signs will be used.
Safety Alert
Prohibited
Action
maxon motor control
ESCON Servo Controller
ESCON Module 50/5 Hardware Reference
Intended Purpose
•
to avoid dangerous situations,
•
to keep installation and/or commissioning time at a minimum,
•
to increase reliability and service life of the described equipment.
Target Audience
How to use
Meaning
refers to an item (such as order number, list item, etc.)
denotes "see", "see also", "take note of" or "go to"
Notation used
Symbols & signs
Type
Symbol
(typical)
(typical)
Edition: November 2014
© 2014 maxon motor. Subject to change without prior notice.
Indicates an imminent hazardous situation.
DANGER
If not avoided, it will result in death or
serious injury.
Indicates a potential hazardous situation.
WARNING
If not avoided, it may result in death or
serious injury.
Indicates a probably hazardous situation
CAUTION
or calls the attention to unsafe practices.
If not avoided, it may result in injury.
Indicates a dangerous action. Hence, you must not!
Document ID: rel4734
About this Document
Meaning
About
1-3
