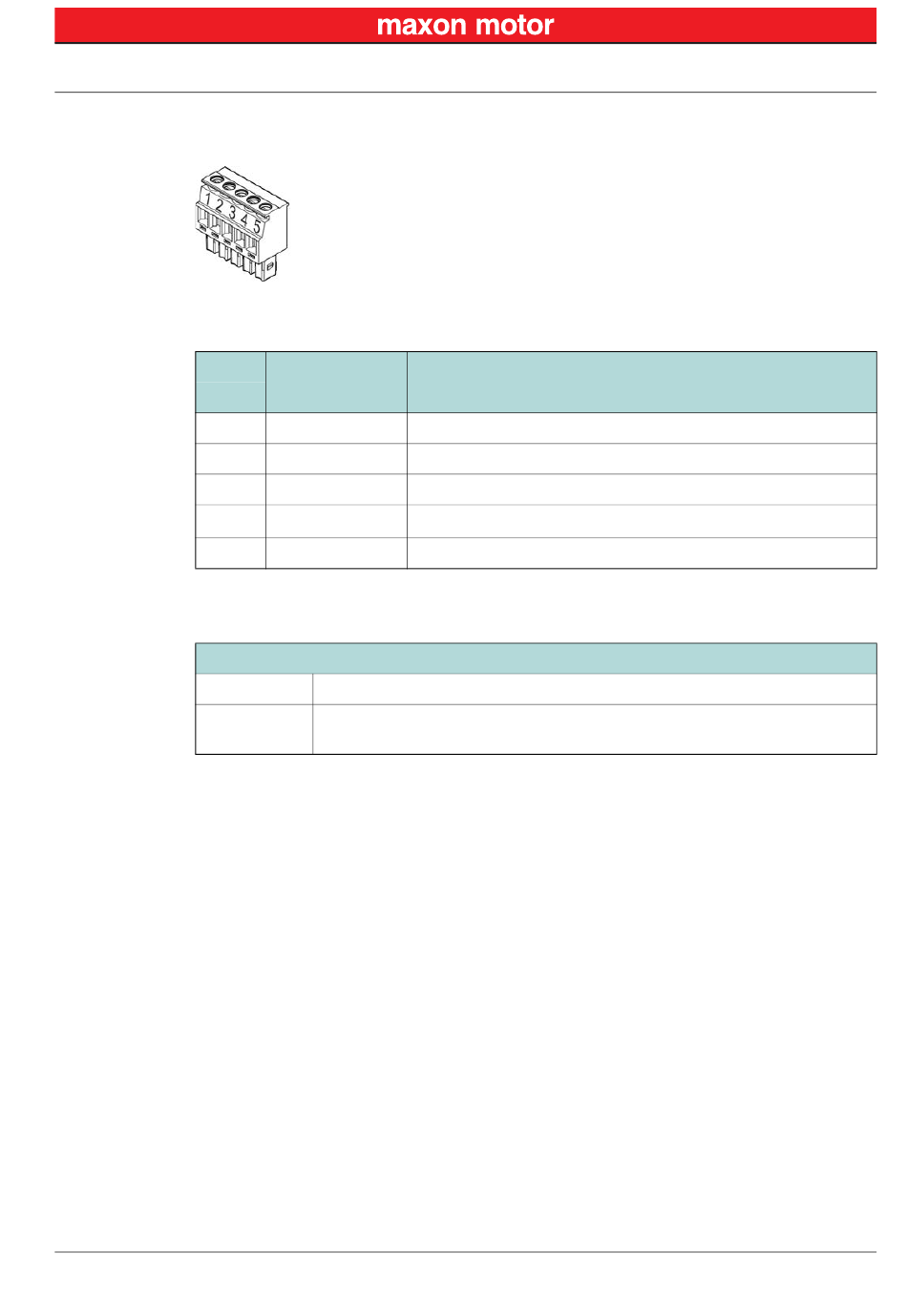

Table 5-19 Escon Module Mobo - Hall Sensor Plug J3 - Pin Assignment; Table 5-20 Escon Module Mobo - Hall Sensor Plug J3 - Specification & Accessories - maxon motor ESCON Module 50/5 Hardware Reference Manual

5.7.2.3
Suitable Hall effect sensors IC use «Schmitt trigger» with open collector output.
Figure 5-31
J3
Pin
Table 5-19
Type
Suitable cables
Table 5-20
maxon motor control
ESCON Servo Controller
ESCON Module 50/5 Hardware Reference
Hall sensor (J3)
ESCON Module MoBo – Hall Sensor Plug J3
Signal
1 Hall sensor 1
2 Hall sensor 2
3 Hall sensor 3
4 +5 VDC
5 GND
ESCON Module MoBo – Hall Sensor Plug J3 – Pin Assignment
Pluggable screw-type terminal block, 5 poles, 3.5 mm pitch
0.14...1.5 mm
0.14...1.5 mm
ESCON Module MoBo – Hall Sensor Plug J3 – Specification & Accessories
Edition: November 2014
© 2014 maxon motor. Subject to change without prior notice.
Hall sensor 1 input
Hall sensor 2 input
Hall sensor 3 input
Hall sensor supply voltage (+5 VDC; I
Ground
Specification / Accessories
multi-core, AWG 28-14
2
single wire, AWG 28-14
2
Document ID: rel4734
Motherboard Design Guide
ESCON Module Motherboard (438779)
Description
30 mA)
≤
L
5-41
