EXTERNAL COMPONENT DESCRIPTION

FRONT PANEL

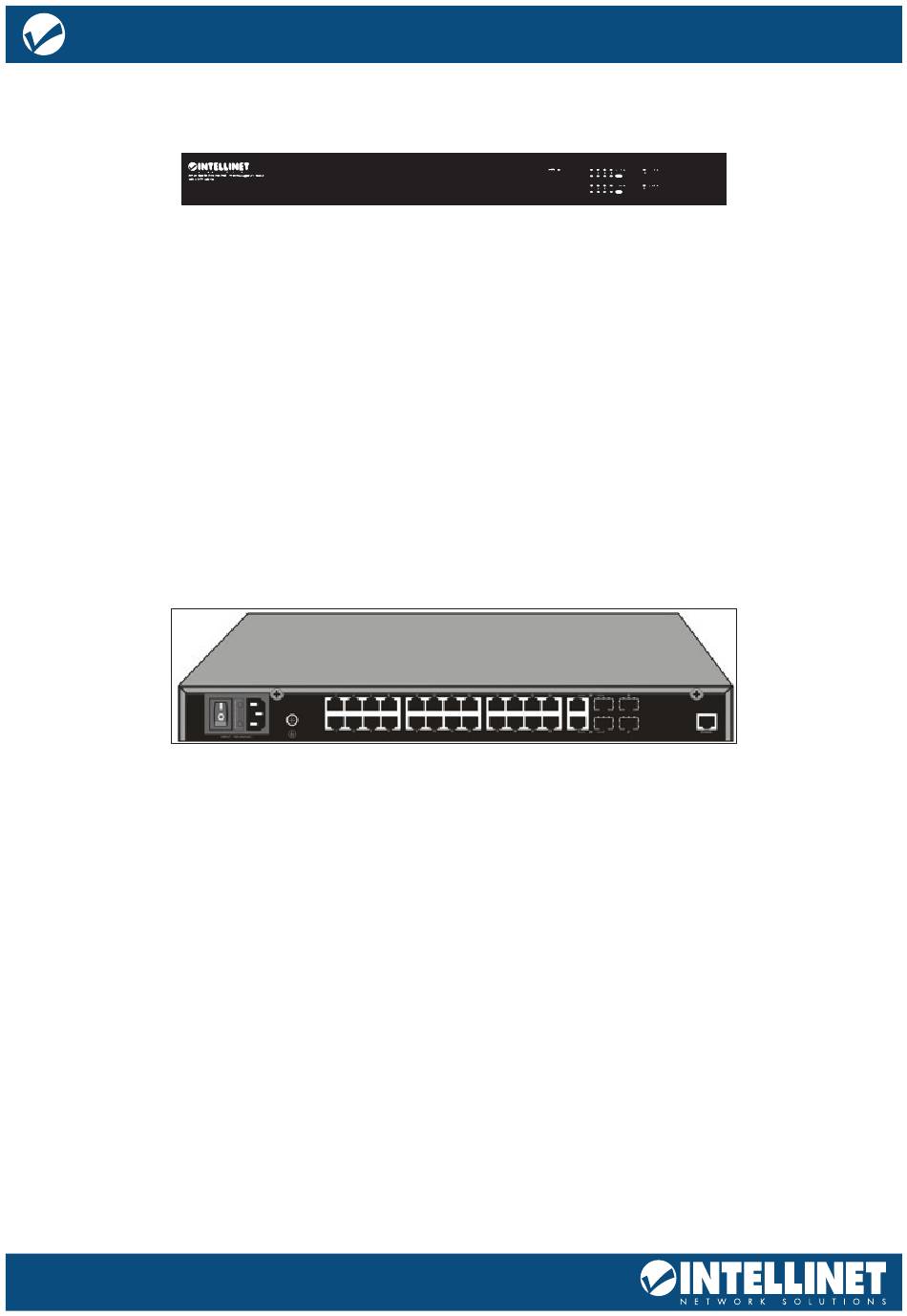

The front panel consists of LEDs that indicate status and connection:
PWR LED: Switch is connected to a power source.
Link/Act LED: Flashes indicate a network link through the corresponding port at the rear of the switch.
Blinking indicates that the port is either sending or receiving data.
PoE LEDs:
• Green: a PoE powered device (PD) is connected and the port is successfully supplying power
• Off: no powered device (PD) is connected
Note: The SFP ports are shared with gigabit RJ45 ports. When an SFP port is used, the RJ45 port cannot
be used.
Warning: The SFP ports should use a UL-listed Optical Transceiver product, Rated Laser Class I. 3.3 VDC (see
Intellinet Solutions parts 545006, 545013, 506724, 545044, 523882).

REAR PANEL

The rear panel of the switch consists of 10/100/1000 Mbps RJ45 ports, SFP ports, one Console port, one Reset
button and a series of LED indicators as shown below.
10/100/1000 Mbps RJ45 ports
Designed to connect to the device with a bandwidth of 10 Mbps, 100 Mbps or 1000 Mbps; each has a
corresponding 10/100/1000 Mbps LED found at the front of the switch.
Combo ports
For installating SFP modules; offers SFP receiver slots, which are shared with the related RJ45 ports.
Console port (Console)
Connects to the serial port of a computer or terminal to monitor and configure the switch.
Power
Used to connect the included AC power cord; it supports AC 100 – 240 V, 50/60 Hz.
Switch
Turns power to the switch on or off
Fuse
Prevents power overloads and short circuits to the equipment (tank containing a spare fuse)
Grounding Terminal
Grounds the switch through the PE cable on the AC cord or with a separate ground wire.
