Gigabit Ethernet PoE+ Web-
Managed A V Switch
User Manual
Models 561433, 561440, 561457

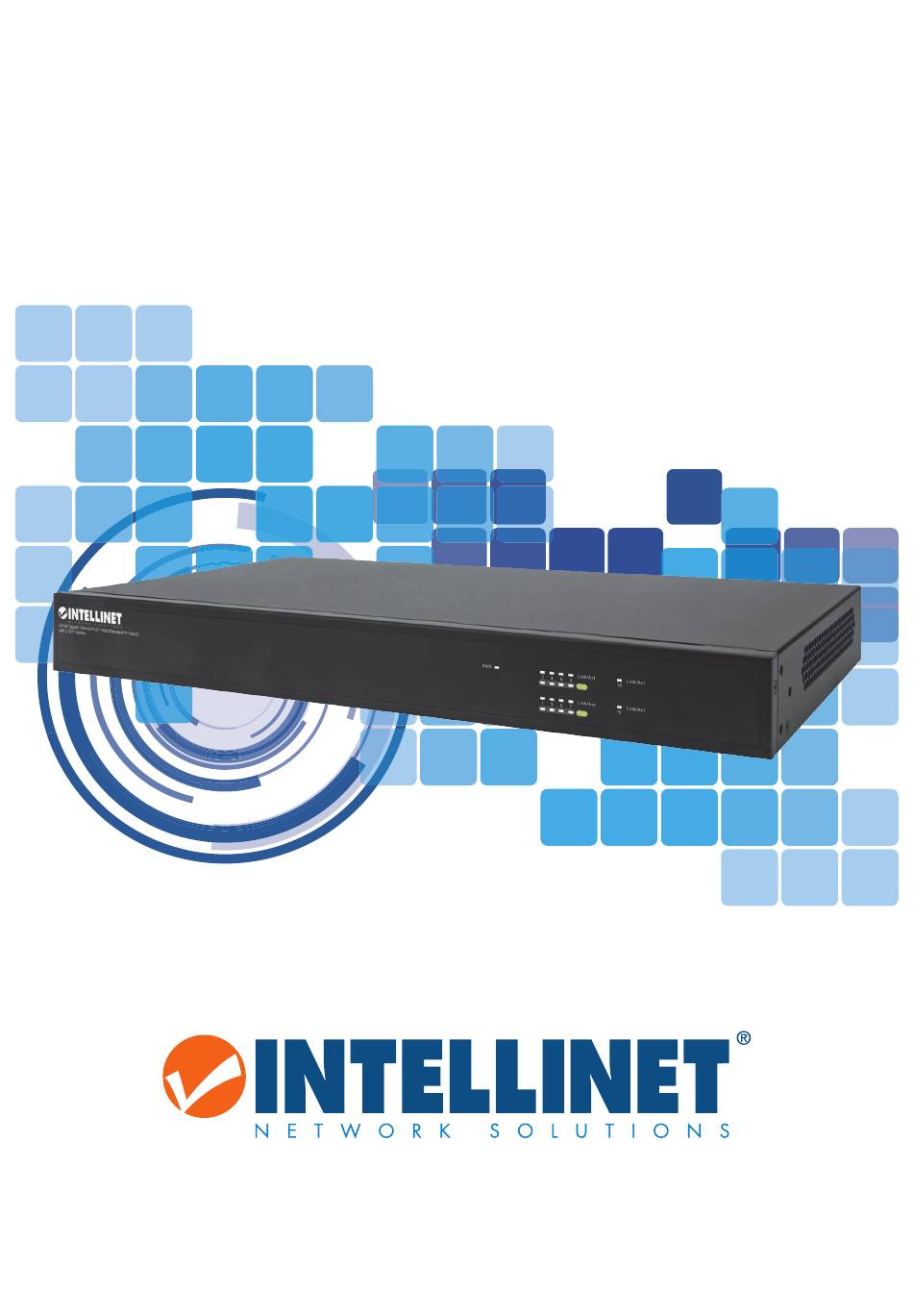

Model shown: 561433
intellinetsolutions.com
INT_561433_40_57_UM_0319_REV_5.03

Advertisement

Table of Contents
loading

Summary of Contents for Intellinet 561433

  • Page 1 Gigabit Ethernet PoE+ Web- Managed A V Switch User Manual Models 561433, 561440, 561457 Model shown: 561433 intellinetsolutions.com INT_561433_40_57_UM_0319_REV_5.03...
  • Page 2: Table Of Contents

    User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch TABLE OF CONTENTS INTRODUCTION ............................4 PRODUCT OVERVIEW ..........................4 FEATURES ..............................4 SPECIFICATIONS .............................5 STANDARDS.............................5 EXTERNAL COMPONENT DESCRIPTION ....................6 FRONT PANEL ............................6 REAR PANEL ............................6 PACKAGE CONTENTS ..........................7 INSTALLING AND CONNECTING THE SWITCH ....................7 DESKTOP INSTALLATION ..........................7 RACKMOUNT INSTALLATION IN 19”...
  • Page 3 Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual ACL CONFIGURATION ..........................20 IP STANDARD ACL CONFIGURATION....................20 IP EXTENDED ACL CONFIGURATION ....................21 MAC IP ACL CONFIGURATION ......................22 MAC IP ACL CONFIGURATION ......................22 MAC ARP ACL CONFIGURATION .......................22 ACL INFORMATION ..........................23 QOS CONFIGURATION..........................23 QOS APPLY CONFIGURATION ......................23 QOS SCHEDULE CONFIGURATION .....................24 IP BASIC CONFIGURATION ........................24...
  • Page 4: Introduction

    • All RJ45 ports with Auto-MDIX and NWay auto-negotiation support • Complies with the IEEE 802.3az (Energy Efficient Ethernet [EEE]) specification • Offers 20 Gbps switch fabric in model 561433 and 36 Gbps switch fabric in models 561440 & 561457 • SNMP Management and Remote Monitoring (RMON) •...
  • Page 5: Specifications

    • IEEE 802.3x (Flow Control for full duplex mode) POWER • Input: 100 – 240 VAC, 50 – 60 Hz • Power consumption: 270 W (models 561433 & 56140), 450 watts (model 561457) ENVIRONMENTAL • Metal housing • Operating temperature: 0 – 40°C (32 – 104°F) •...
  • Page 6: External Component Description

    Warning: The SFP ports should use a UL-listed Optical Transceiver product, Rated Laser Class I. 3.3 VDC (see Intellinet Solutions parts 545006, 545013, 506724, 545044, 523882). REAR PANEL The rear panel of the switch consists of 10/100/1000 Mbps RJ45 ports, SFP ports, one Console port, one Reset button and a series of LED indicators as shown below.
  • Page 7: Package Contents

    Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual PACKAGE CONTENTS Before installing the switch, make sure that the following items are enclosed. If any part is missing or damaged, contact your place of purchase immediately. • Gigabit Ethernet PoE+ Web-Managed AV Switch •...
  • Page 8: Power On The Switch

    User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch POWER ON THE SWITCH Connecting the switch to an outlet using the AC 100-240 V, 50/60 Hz internal high-performance power supply. AC Electrical Outlet Use a single-phase, three-wire receptacle with a neutral outlet or multifunctional professional receptacle. Be sure to connect the metal ground connector to the grounding source on the outlet.
  • Page 9: Web Page Elements

    Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual WEB PAGE ELEMENTS INTERFACE STRUCTURE The switch’s GUI, as shown on the following pages, is composed of three parts: a header featuring the Port Status panel, a left-side Navigation Tree panel with folders and pages, and a larger-area Focus Page that shows the contents of the page you’ve selected from the panel.
  • Page 10: Status Field

    User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch STATUS FIELD A State field will display on the far-right of some Focus Pages, which gives the status of the line displayed. All displayed status fields are Read-Only. Once information has been entered, click Apply, and the line will reflect the status.
  • Page 11: User Management

    Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual USER MANAGEMENT The following image shows the User Management page, where you can add multiple switch users, set user names and passwords, change the admin and other passwords, and manage users. Switch SAFE MANAGEMENT The following image shows how to connect to the interface of the switch through the web GUI, TELNET and SNMP functions.
  • Page 12: Configuration File

    User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch CONFIGURATION FILE This the current “Running Configuration” of the switch created from the previous menu option. Switch PORT CONFIGURATION/SHOW The following image shows the Port Configuration/Show page. Through this page, users can enable or disable ports, set the port speed or view the basic information of all ports.
  • Page 13: Broadcast Storm Control

    Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual FLOW CONTROL IEEE 802.3x Flow Control is the process of managing the rate of data transmission between two nodes (i.e., the switch and a connected network client) to prevent a fast sender from overwhelming a slow receiver. It provides a mechanism for the receiver to control the transmission speed, so that the receiving node is not overwhelmed with data from the transmitting node.
  • Page 14: Port Speed Limits

    User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch PORT SPEED LIMITS This feature allows you to limit the data rates for a particular port on the Switch. When the data rate exceeds user-configured values, the switch drops packets immediately. Rate limiting is configured for two types of transmissions, which are ingress and egress.
  • Page 15: File Upload

    Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual FILE UPLOAD The following image shows that you can restore the settings from the configuration in the previous menu option and upload it here. Switch SYSTEM REBOOT The following image shows that you can reboot the switch from this section. PORT TRUNKING CONFIGURATION (A.K.A.
  • Page 16: Port Mirror Configuration

    User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch Switch PORT MIRROR CONFIGURATION Port mirroring is the ability of a network switch to send a copy of network packets seen on a switch port or ports to a network-monitoring device connected to another switch port (i.e., a computer equipped with a packet sniffer utility).
  • Page 17: Mac Binding Automatic Conversion

    Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual Switch MAC BINDING AUTOMATIC CONVERSION The following image shows the MAC Auto Bind configuration page. This page allows users to let the switch automatically bind a MAC address to a port upon its first use. Switch MAC FILTER CONFIGURATION The following image shows the MAC Filter Configuration page, where users can manually map a port and a...
  • Page 18: Mac Filtering Automatic Conversion

    2. Tagged VLAN packets arriving at the access port are dropped by the switch. 3. As far as the Intellinet switch is concerned, any port that isn’t defined as a trunk or hybrid port is considered an access port.
  • Page 19: Vlan Information

    Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual VLAN INFORMATION The following image shows the current VLAN configuration. Switch STATIC VLAN CONFIGURATION The following image shows the Static VLAN Configuration page, which allows users to create VLANs. To create a new VLAN, manually insert the VLAN ID number into the VID field and click apply. VLAN IDs can range between 2 to 4094.
  • Page 20: Snmp Community Configuration

    User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch SNMP COMMUNITY CONFIGURATION Simple Network Management Protocol (SNMP) is an OSI Layer 7 (Application Layer) designed specifically for managing and monitoring network devices. SNMP enables network management stations to read and modify the settings of gateways, routers, switches and other network devices.
  • Page 21: Ip Extended Acl Configuration

    Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual specify individual users or groups permitted or denied to specific traffic objects, such as a process or a program. Each accessible traffic object contains an identifier to its ACL. The privileges determine whether there are specific traffic object access rights.
  • Page 22: Mac Ip Acl Configuration

    User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch MAC IP ACL CONFIGURATION The following image shows the MAC IP ACL configuration page. An IP MAC group can be configured via IP packet source and destination MAC address or source and destination IP address. Switch MAC IP ACL CONFIGURATION The following image shows the MAC IP ACL configuration page.
  • Page 23: Acl Information

    Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual ACL INFORMATION The following image shows the ACL information page, which displays the current ACL rules configured. Switch QOS CONFIGURATION QOS APPLY CONFIGURATION Quality of Service (QoS) is an advanced traffic prioritization feature that allows you to establish control over network traffic.
  • Page 24: Qos Schedule Configuration

    User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch QOS SCHEDULE CONFIGURATION The following image shows a QoS Schedule configuration page. Switch IP BASIC CONFIGURATION IP ADDRESS CONFIGURATION FOR VLAN INTERFACES The following image shows a VLAN interface configuration page. From this screen, it is possible to: •...
  • Page 25: Host Static Routing Configuration

    Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual When a user configures a static ARP entry, the IP address and MAC address is needed (the MAC address must be a unicast MAC address). Switch HOST STATIC ROUTING CONFIGURATION The following image shows the host static route configuration page. From this screen it is possible to add and delete static route hosts.
  • Page 26: 802.1X Configuration

    User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch The following image shows the RADIUS Configuration page. From this screen it is possible to: • Set the RADIUS server’s IP address first. • Add an optional RADIUS server IP address. • Set the Authentication UDP port, the default value is 1812. •...
  • Page 27: 802.1X Port Configuration

    Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual Switch 802.1X PORT CONFIGURATION The following image shows the 802.1x Port Configuration page. From this screen it is possible to: • View 802.1x port configuration. • Set the state of the port to N/A, Auto, Force Authorization or Force Unauthorized state. (Generally N/A or Auto are used).
  • Page 28: Spanning Tree Protocol Configuration

    User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch SPANNING TREE PROTOCOL CONFIGURATION MSTP GLOBAL CONFIGURATION The Spanning Tree Protocol can be used to detect and disable network loops and to provide backup links between switches, bridges or routers. This allows the switch to interact with other bridging devices in your network to ensure that only one route exists between any two stations on the network.
  • Page 29 Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual The communication between switches via BPDUs results in the following: • One switch is elected as the root switch • The shortest distance to the root switch is calculated for each switch •...
  • Page 30: Mstp Port Configuration

    User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch The switch allows for two levels of operation: the switch level and the port level. The switch level forms a spanning tree consisting of links between one or more switches. The port level constructs a spanning tree consisting of groups of one or more ports.
  • Page 31: Mstp Configuration Information

    Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual Switch MSTP CONFIGURATION INFORMATION The following image shows the MSTP configuration information page, through which you can view some MSTP related information. Switch IGMP SNOOPING CONFIGURATION IGMP SNOOPING CONFIGURATION The Internet Group Management Protocol (IGMP) lets hosts and routers share information about multicast group memberships.
  • Page 32: Igmp Snooping Information

    User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch The following image shows the IGMP Snooping configuration page, through which you can start this function. Switch IGMP SNOOPING INFORMATION The following image shows the IGMP Snooping information page, which allows users to view some information about IGMP Snooping.
  • Page 33: Gmrp Ports Configuration

    Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual received GMRP traffic to constrain multicasts at Layer 2 in the host’s VLAN. In all cases, you can use IGMP snooping to constrain multicasts at Layer 2 without the need to install or configure software on hosts. When a host wants to join an IP multicast group, it sends an IGMP join message, which spawns a GMRP join message.
  • Page 34: Gmrp State Machine

    User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch GMRP STATE MACHINE The following image shows the GMRP state machine page. Users can view the GMRP state machine information here. Switch EAPS CONFIGURATION Ethernet Automatic Protection Switching (EAPS) is used to create a fault tolerant topology by configuring a primary and secondary path for each VLAN.
  • Page 35: Eaps Information

    Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual Switch EAPS INFORMATION The following image shows an EAPS information page, through which users can view some EAPS related information. Switch RMON CONFIGURATION Remote Monitoring (RMON) is a standard monitoring specification that enables various network monitors and console systems to exchange network-monitoring data.
  • Page 36: Rmon Statistics Group Configuration

    User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch RMON STATISTICS GROUP CONFIGURATION The following image shows the RMON statistics group configuration page. Select a port from the drop-down list to view/configure the RMON statistics group configuration for this port. When not configured, the index number is 0. Fill in the index number (range 1 to 100); the owner is optional. The statistics table shows the port statistics after successful configuration.
  • Page 37: Rmon Event Group Configuration

    Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual o The alarm value is read-only and shows the sampled value when the alarm was last issued. The rising threshold shows a number at which the alarm is triggered. This value ranges between 0 and 2147483647. o The falling threshold, a number at which the alarm is reset.
  • Page 38: Cluster Configuration

    User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch CLUSTER CONFIGURATION Neighbor Discovery Protocol (NDP) is an important protocol in IPv6. NDP is based on ICMPv6 and is used to identify the relationships between different neighboring devices in an IPv6 network. Many important functions of IPv6 such as resolving MAC address of an IPv6 Address (in IPv4, ARP is used for this), Router Discovery etc., are now performed using Neighbor Discovery Protocol (NDP).
  • Page 39: Ntdp Configuration

    Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual NTDP CONFIGURATION The following image shows the NTDP configuration page. The information that can be set includes: • Selecting the port (for port selection, select the port as required and enable the port NDP function) •...
  • Page 40: Log Management

    User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch LOG MANAGEMENT LOG INFORMATION The following image shows the Log Information page. Users can enable and view various log information through this page. Configurable options are as follows: • Critical: outputs critical level information •...
  • Page 41: Poe Power Control

    Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual POE POWER CONTROL POE PORT CONFIGURATION The following image shows the PoE Port Configuration page, which allows users to enable or disable PoE on each port and view the status of PoE on a per port basis (mW, mA and Voltage). This page also lets users view the total power consumption and see the type and class of PoE on a per port basis.
  • Page 42: Additional Information

    DEUTSCHLAND: intellinetnetwork.de EN MÉXICO: intellinetsolutions.mx EN MÉXICO: Póliza de Garantía Intellinet Network Solutions — Datos del importador y responsable ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P. 54730, México. • Tel. (55)1500-4500 La presente garantía cubre los siguientes productos contra cualquier defecto de fabricación en sus...
  • Page 43 cuentan con reparaciones, ni refacciones, ya que su garantía es de cambio físico. 3. La garantía cubre exclusivamente aquellas partes, equipos o sub-ensambles que hayan sido instaladas de fábrica y no incluye en ningún caso el equipo adicional o cualesquiera que hayan sido adicionados al mismo por el usuario o distribuidor.
  • Page 44 All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Intellinet Network Solutions is a trademark of IC Intracom, registered in the U.S. and other countries.
