Gigabit Ethernet PoE+ Web-Managed AV Switch User Manual

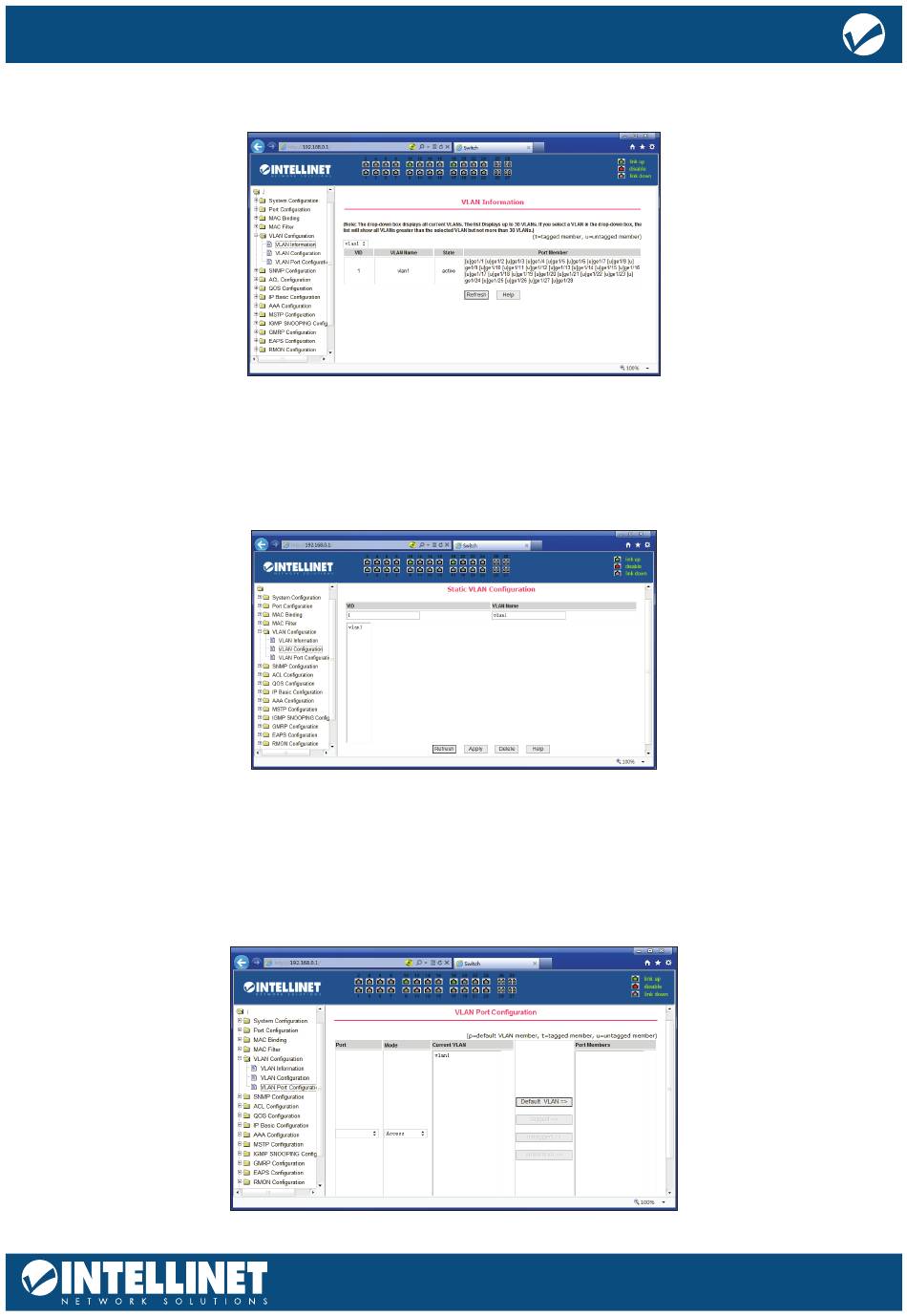

VLAN INFORMATION

The following image shows the current VLAN configuration.
Switch

STATIC VLAN CONFIGURATION

The following image shows the Static VLAN Configuration page, which allows users to create VLANs.
To create a new VLAN, manually insert the VLAN ID number into the VID field and click apply. VLAN IDs can
range between 2 to 4094. To delete a VLAN, click on the appropriate entry and press delete. As the default
setting, VLAN1 cannot be removed.
Switch

VLAN PORT CONFIGURATION

The following image shows the VLAN Port Configuration page, which consists of four sections: Port, Mode,
Current VLAN, and Port Members. "Port" refers to one of the ports on the switch. "Mode" refers to one of
three settings: Access, Trunk and Hybrid ports (described above in more detail). "Current VLAN" refers to the
current configured VLANs. "Port Members" refers to the ports assigned to the VLANs, and members listed
here can be tagged, untagged or removed.
Switch
