User Manual Gigabit Ethernet PoE+ Web-Managed AV Switch
Switch

PORT MIRROR CONFIGURATION

Port mirroring is the ability of a network switch to send a copy of network packets seen on a switch port or
ports to a network-monitoring device connected to another switch port (i.e., a computer equipped with a
packet sniffer utility).

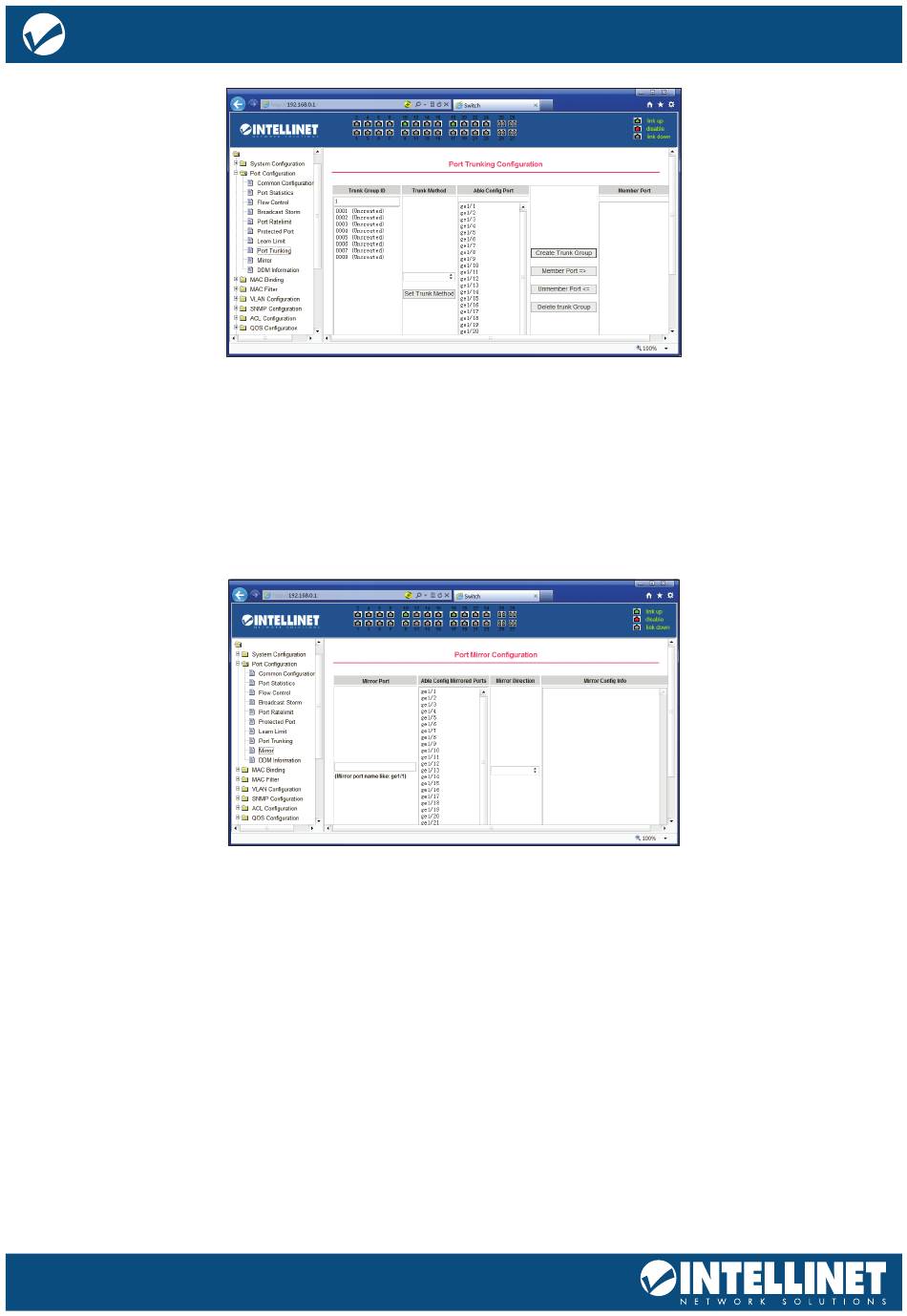

The following image shows the Port Mirroring Configuration page, which allows the activity of one port to be
duplicated to another. We can choose to duplicate the data being received, transmitted, or both or not
at all.
Switch

MAC BINDING

MAC BIND CONFIGURATION

This is a powerful authentication function that ensures the correctness of hardware (MAC address), software/
user (IP address), and location (Connected port) for devices connected to the network. This feature ensures
they are all from legal sources to prevent the data leakage from hackers faking the legal network devices.
The following image shows the MAC binding configuration page, where users can manually bind a MAC
address to a specified port.
