Gigabit Ethernet PoE+ Web-Managed AV Switch

PACKAGE CONTENTS

Before installing the switch, make sure that the following items are enclosed. If any part is missing or
damaged, contact your place of purchase immediately.
• Gigabit Ethernet PoE+ Web-Managed AV Switch
• AC power cord
• Rubber feet (4)
• Console cable
• Mounting brackets
• User Manual

INSTALLING AND CONNECTING THE SWITCH

The following steps will help prevent damage to the device and maintain proper security:
• Place the switch on a stable surface or desktop to minimize the chances of it falling.
• Make sure the switch works in the proper AC input range and matches the voltage labeled on
the switch.
• To prevent electrocution, do not open the switch's chassis, even if it fails to receive power.
• Make sure that there is proper heat dissipation from and adequate ventilation around the switch.
• Make sure the surface on which the switch is placed can support the weight of the switch and
its accessories.

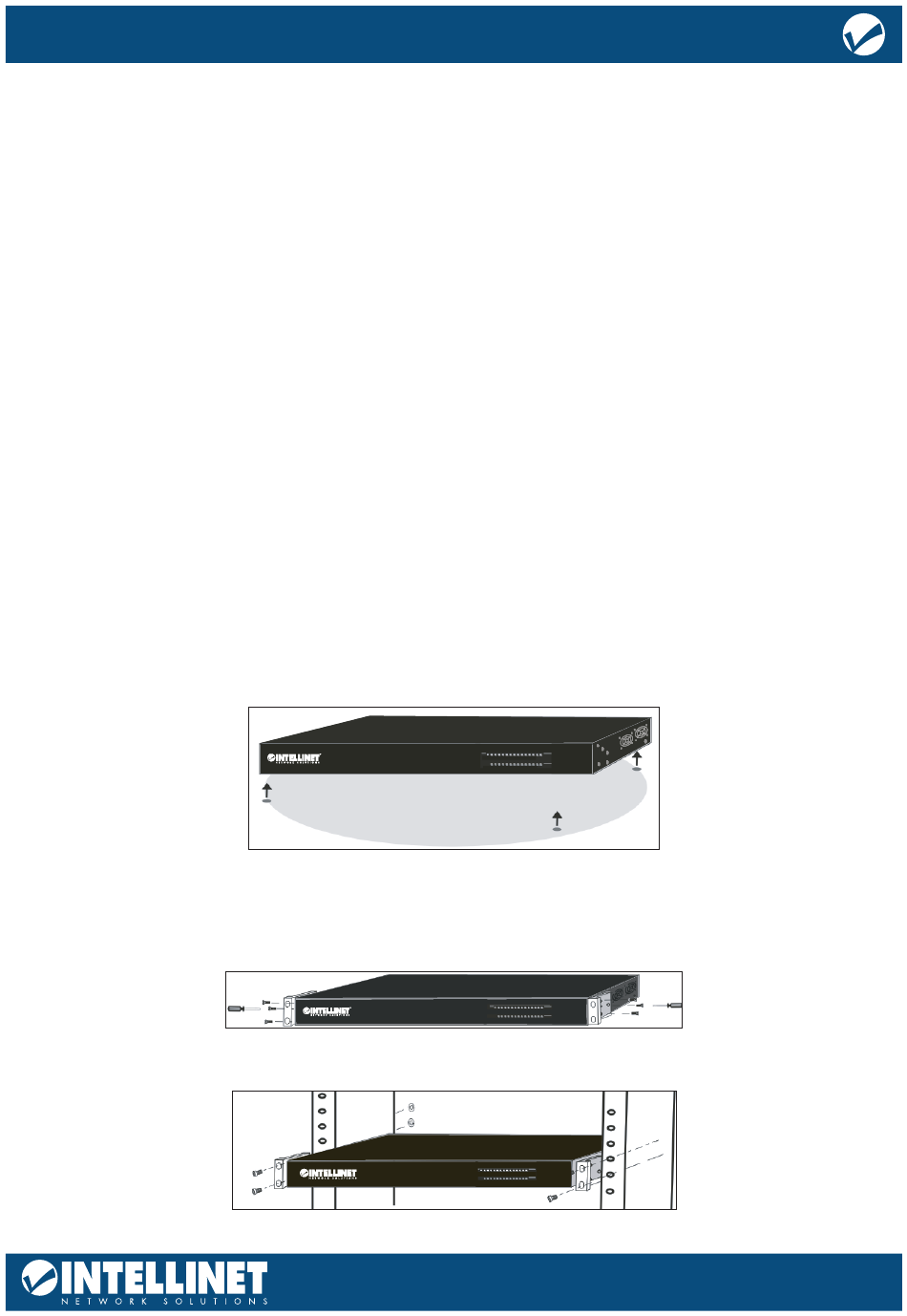

DESKTOP INSTALLATION

Attach the enclosed rubber feet to the bottom corners of the switch to minimize vibration. Allow adequate
space for ventilation between the device and the objects around it.

RACKMOUNT INSTALLATION IN 19" CABINET

You can mount the switch in an EIA standard-sized, 19-inch rack. To do so, attach the mounting brackets on
the switch's side panels (one on each side) and secure them with the screws provided.
Then, use the screws provided with the equipment rack to mount the switch on the rack and tighten it.
Desktop Installation
