SNMP COMMUNITY CONFIGURATION

Simple Network Management Protocol (SNMP) is an OSI Layer 7 (Application Layer) designed specifically for
managing and monitoring network devices. SNMP enables network management stations to read and modify
the settings of gateways, routers, switches and other network devices. Use SNMP to configure system features
for proper operation, monitor performance and detect potential problems in the switch, switch group or
network.

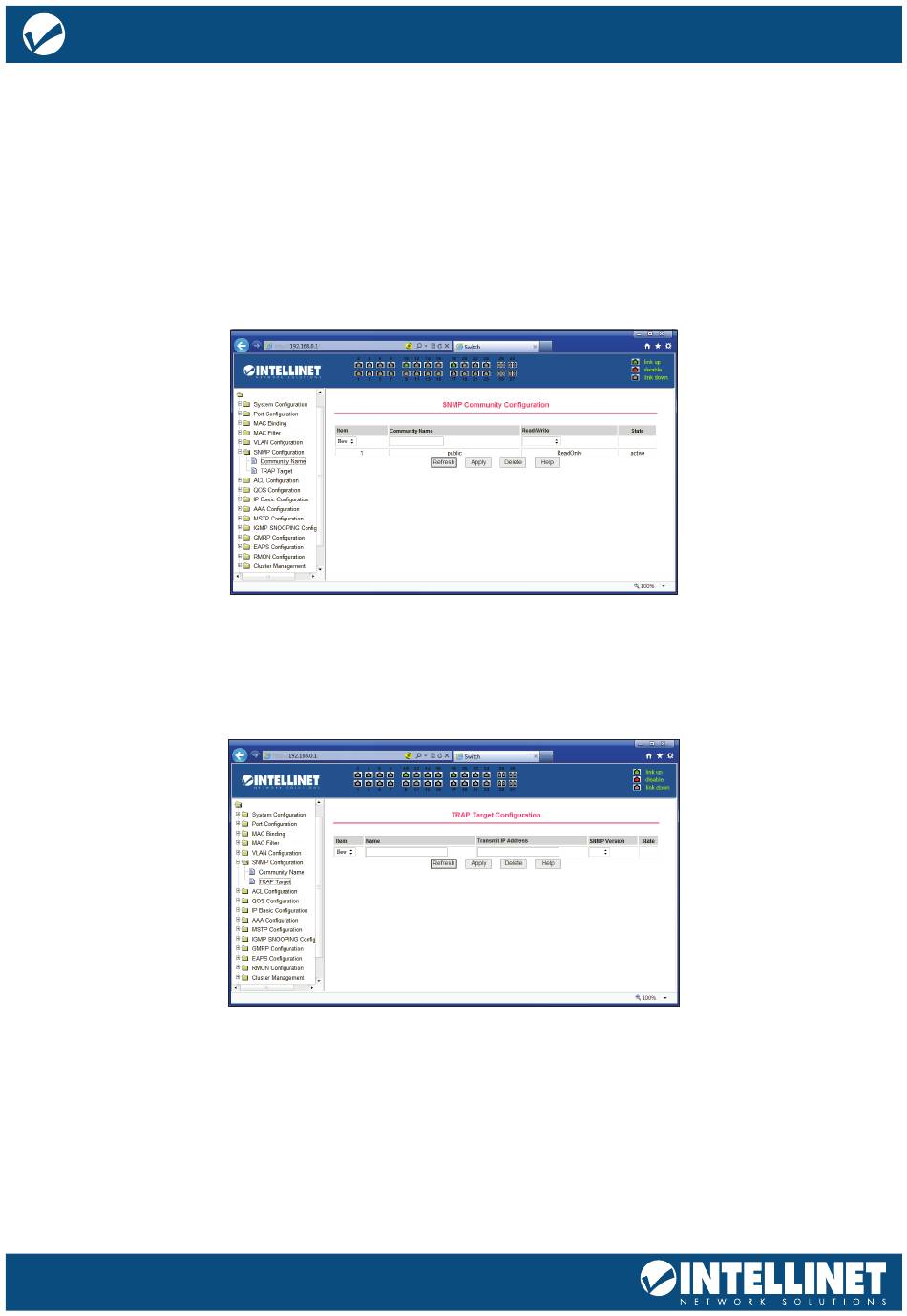

The following image shows the SNMP community configuration page, which allows users to view the
configured communities and their properties or add new communities and assign properties. A total of 8
entries can be configured.

TRAP TARGET CONFIGURATION

The following image shows the TRAP target configuration page, allowing users to configure workstations/
network clients that can receive TRAP messages. Users can create a custom name for the target at its IP
address and the version of SNMP required.

ACL CONFIGURATION

IP STANDARD ACL CONFIGURATION

ACE is an acronym for Access Control Entry. It describes access permission associated with a particular ACE ID.
There are three ACE frame types (Ethernet Type, ARP and IPv4) and two ACE actions (permit and deny). The
ACE also contains many detailed, different parameter options that are available for individual application.
ACL is an acronym for Access Control List. It is the list table of ACEs, containing access control entries that
20
