WEB PAGE ELEMENTS

INTERFACE STRUCTURE

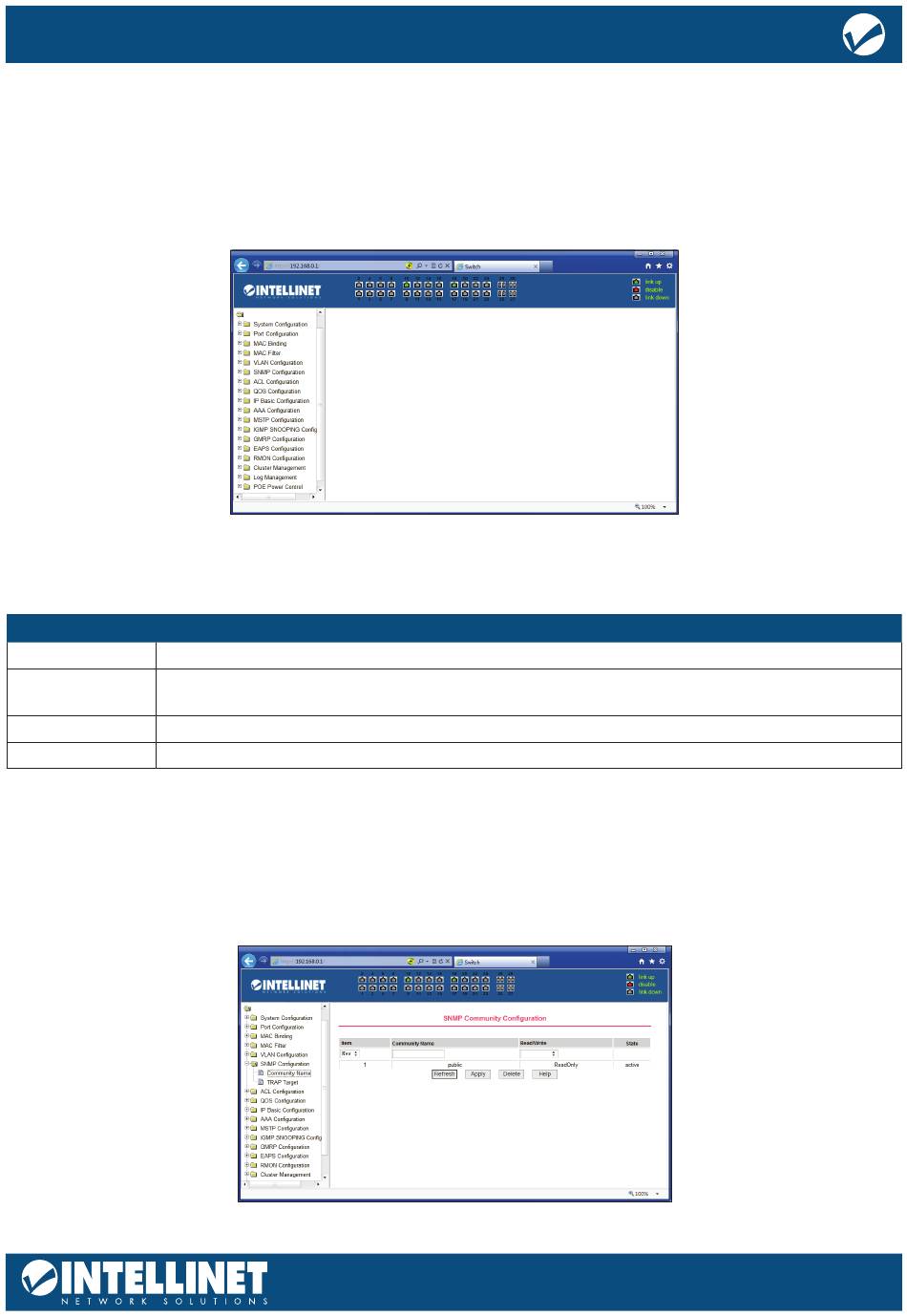

The switch's GUI, as shown on the following pages, is composed of three parts: a header featuring the Port
Status panel, a left-side Navigation Tree panel with folders and pages, and a larger-area Focus Page that
shows the contents of the page you've selected from the panel. Find the page you want to manage using the
Navigation Tree.

COMMON FUNCTIONS

Each page features some commonly used buttons. The function of each is described below:
Button Effect
Refresh Updates all fields on the page
Apply Updates into the memory what is entereded into the editable fields. Because the Web server checks
for errors, no error-checking occurs before the user selects this button.
Delete Deletes the current record
Help Opens online help pages

ENTRY FIELDS

To add a new line, select "New" from the drop-down menu, enter new information, and then click Apply.
To edit an existing line, select the appropriate line number of the drop-down menu first, make your edits,
and then click Apply. The change is then recorded and displayed in the table. To delete a row, select the line
number from the entry field's drop-down menu, then press the delete key. The line will disappear from the
table.
