ACL INFORMATION

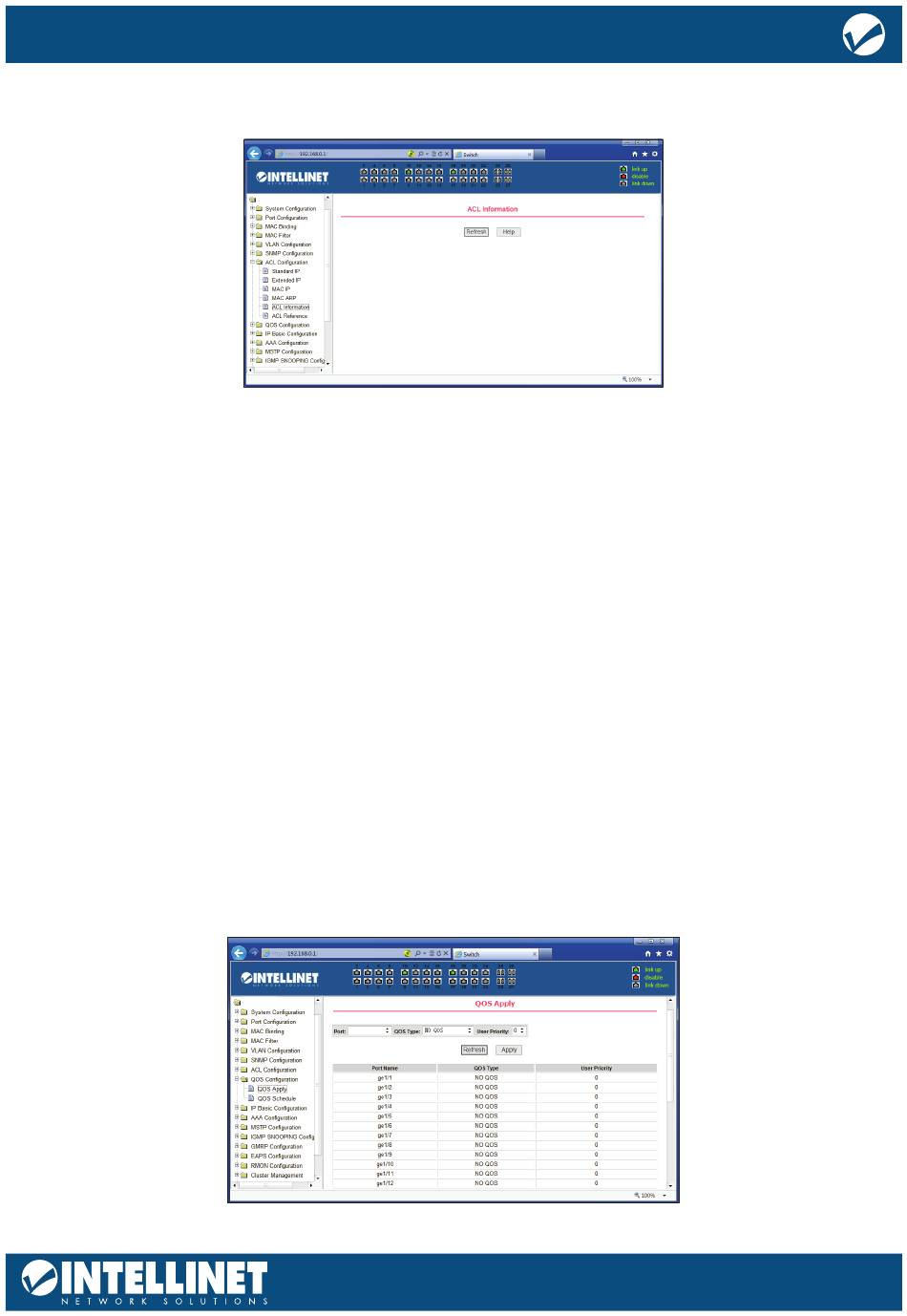

The following image shows the ACL information page, which displays the current ACL rules configured.

QOS CONFIGURATION

QOS APPLY CONFIGURATION

Quality of Service (QoS) is an advanced traffic prioritization feature that allows you to establish control over
network traffic. QoS enables the assigning of various grades of network service to different types of traffic
such as multi-media, video, protocol-specific, time critical and file-backup traffic. QoS reduces bandwidth
limitations, delay, loss and jitter. It also provides increased reliability for delivery of data and allows for the
prioritization certain applications across your network. Define exactly how you want the switch to treat
selected applications and types of traffic. Use QoS on your system to control a wide variety of network
traffic by:
• Classifying traffic based on packet attributes.
• Assigning priorities to traffic (e.g., to set higher priorities to time-critical or business-critical applications).
• Applying security policy through traffic filtering.
• Providing predictable throughput for multimedia applications such as video
conferencing or Voice over IP by minimizing delay and jitter.
• Improving performance for specific types of traffic and preserving
performance as the amount of traffic grows.
• Reducing the need to constantly add bandwidth to the network.
• Managing network congestion.
The following image shows a QoS Apply configuration page.
