QOS SCHEDULE CONFIGURATION

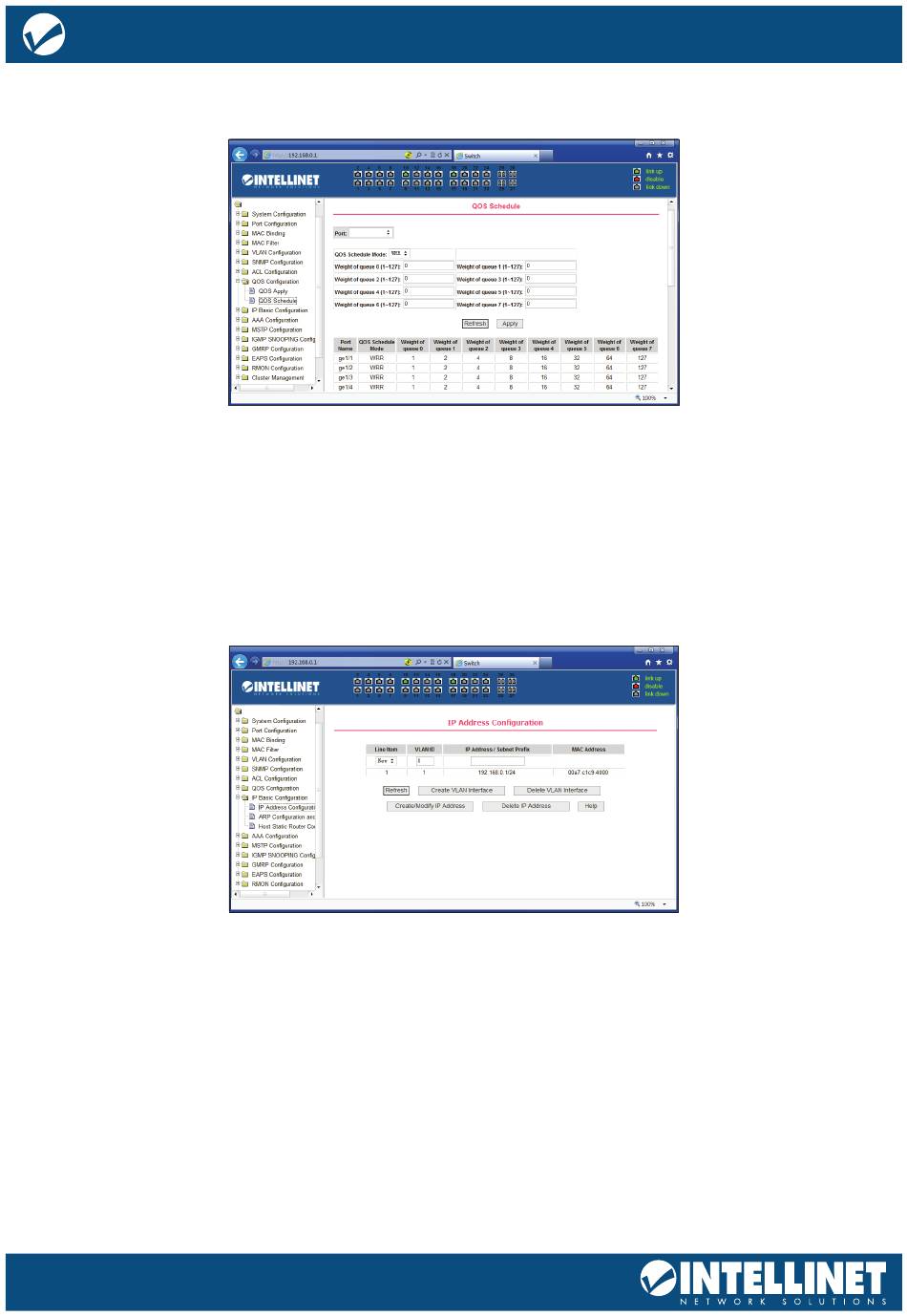

The following image shows a QoS Schedule configuration page.

IP BASIC CONFIGURATION

IP ADDRESS CONFIGURATION FOR VLAN INTERFACES

The following image shows a VLAN interface configuration page. From this screen, it is possible to:
• Create VLAN interfaces,
• Delete VLAN interfaces,
• Configure/modify the interface IP address,
• Remove the interface IP address and view interface information.
The default configuration includes VLAN1, which cannot be deleted.

ARP CONFIGURATION AND DISPLAY

ARP is the acronym for Address Resolution Protocol. It is an internet protocol that gets the MAC address of a
host or node and creates a local database or table that maps the MAC address to the host's IP address. ARP
needs the IP address because the IP must have the address of a destination host before it can direct data to it.
The following image shows the ARP Configuration and Display page, from this screen it is possible to:
• Display all of the information contained in the switch ARP table.
• Configure static ARP entries,
• Delete ARP entries,
• Configure a dynamic ARP table entry as a static ARP table entry.
