Intellinet 561969 User Manual

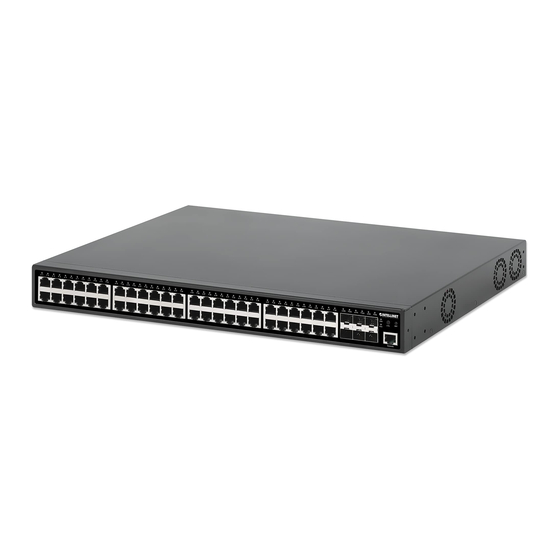

54-port l2+ fully managed poe+ switch with 48 gigabit ports and 6 sfp+ uplinks
Hide thumbs Also See for 561969:
Table of Contents

Advertisement

Quick Links

Download this manual
54-Port L2+ Fully Managed PoE+ Switch with 48
Gigabit Ports and 6 SFP+ Uplinks
User Manual
Model 561969
intellinet-network.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 561969 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intellinet 561969

Summary of Contents for Intellinet 561969

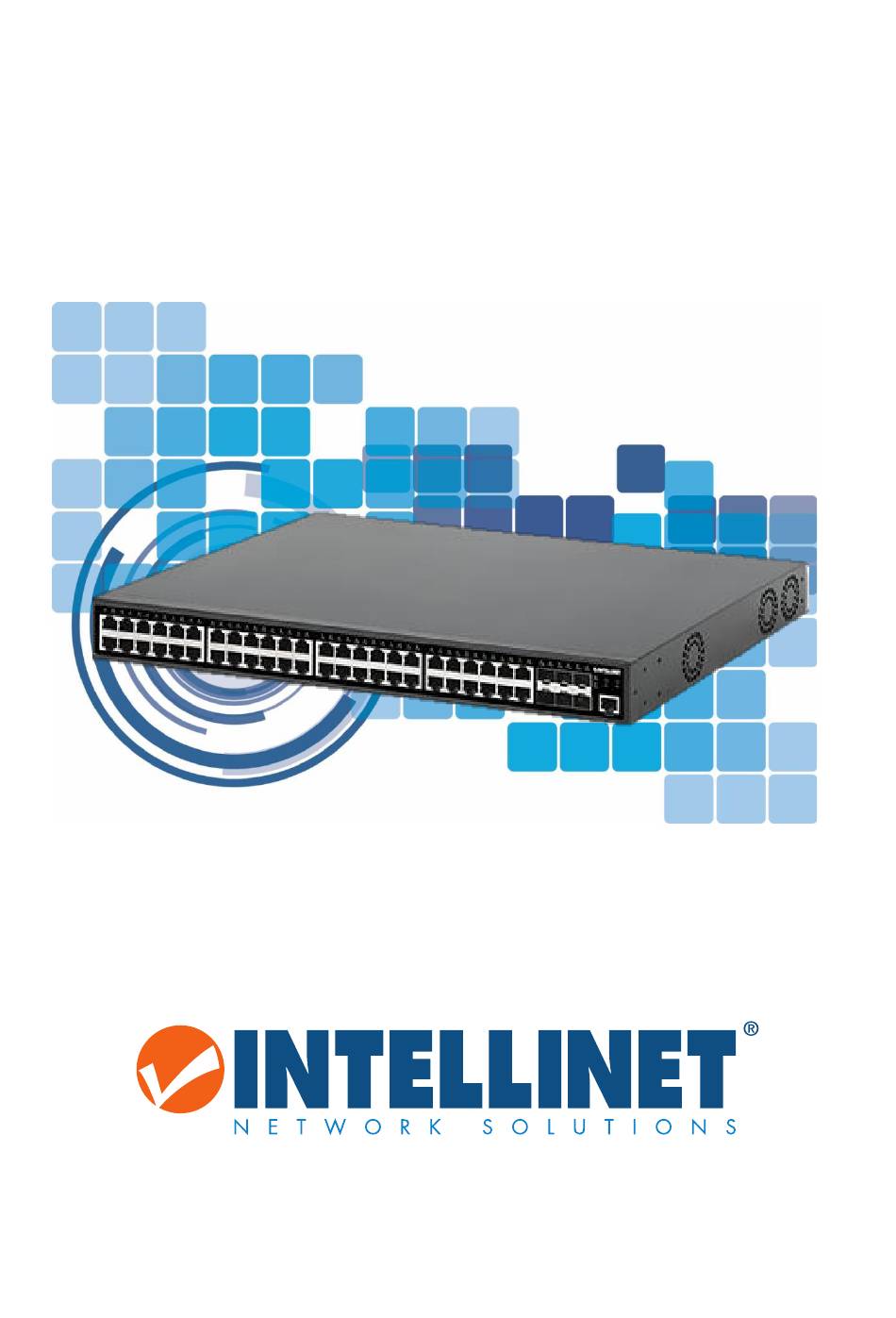

  • Page 1 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual Model 561969 intellinet-network.com...

  • Page 2: Table Of Contents

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual Table of Contents PRODUCT INTRODUCTION ..........................4 RODUCT VERVIEW ..............................4 EATURES ......................5 XTERNAL OMPONENT ESCRIPTION 1.3.1 ..............................5 RONT ANEL 1.3.2 ..............................6 ANEL ..........................
  • Page 3 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.3.3 ..............................43 EARNING ..........................44 ECURITY PPLICATION 4.4.1 ..........................44 ROADCAST TORM ONTROL 4.4.2 ..............................45 ANGE 4.4.3 ACL ................................46 4.4.4 ..............................50 ONTROL .........................

  • Page 4: Product Introduction

    1 Product Introduction Thank you for purchasing the Intellinet Network Solutions 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks. Before you install and use this product, please read this manual carefully to benefit from the full set of features that are available.

  • Page 5: External Component Description

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 1.3 External Component Description 1.3.1 Front Panel The front panel of the Switch consists of 1 x Reset, 1 x Mode, 1 x Console port, 48 x 10/100/1000 Mbps adaptive Ethernet ports, 6 x 1000/10000 Mbps SFP+ ports, and a series of LED indicators.

  • Page 6: Rear Panel

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 10/100/1000 Mbps PoE RJ45 ports (1 – 48): Designed to connect to the device with a bandwidth of 10 Mbps, 100 Mbps or 1000 Mbps. Each has a corresponding Link/Act/Speed indicator.

  • Page 7: Installing And Connecting The Switch

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 2 Installing and Connecting the Switch This section describes how to install your Switch and make connections to it. Review the following topics and perform the procedures in the order being presented.

  • Page 8: Power On The Switch

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 2.1.3 Power on the Switch The Switch is powered on by the 100 – 240 VAC 50/60 Hz internal high-performance power supply. Follow these steps to connect: AC Electrical Outlet: It is recommended to use a single-phase three-wire receptacle with neutral outlet.

  • Page 9: Logging Into The Switch

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 3 Logging into the Switch 3.1 Switch to End Node Use standard Cat5/5e (minimum) Ethernet cable (UTP/STP) to connect the Switch to end nodes as described below. Switch ports will automatically adjust to the characteristics (MDI/MDI-X, speed, duplex) of the device to which is connected.
  • Page 10 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual Figure 7- Login Windows 5. Enter the Username and Password (the factory default Username is admin and the Password is the same as the serial number found on the bottom of the switch), and then click Login to log into the Switch configuration window .

  • Page 11: Web Configuration Guide

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4 Web Configuration Guide The Switch configuration interface consists of three main areas: the status bar at the top, the left function menu bar, and the main configuration window.

  • Page 12: General Setup

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.1.1 General Setup To view basic information of the Switch, such as System description, the number of ports, etc., or to modify the System name, System contact and System location, select Basic Setup>General Setup in the navigation bar. 【Parameters &...

  • Page 13: Ip Setup

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.1.2 IP Setup To add VLAN interfaces and configure VLAN interfaces, select Basic Setup>IP Setup in the navigation bar. 【Parameters & Descriptions】 Parameter Description Interface VLAN-interface or superVLAN-interface;...

  • Page 14: Port Setup

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.1.3 Port Setup To configure the related parameters of port, select Basic Setup>Port Setup in the navigation bar. 【Parameters & Descriptions】 Parameter Description Port Port number.
  • Page 15 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual description is port 1. 3. Click Apply.

  • Page 16: User Setup

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.1.4 User Setup To change the login password of the switch or add a new user, select Basic Setup>User Setup, in the navigation bar. 【Parameters &...

  • Page 17: Dhcp

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.1.5 DHCP To configure settings for DHCP, including DHCP Pool Setup, DHCP Group Setup, DHCP Client, DHCP Snooping, DHCP Option82, DHCP Relay and DHCP Option60, select Basic Setup>DHCP in the navigation bar. 4.1.5.1 DHCP Pool Setup To create, edit or delete a DHCP Pool address setup, select Basic Setup>DHCP>DHCP Pool Setup in the navigation bar.
  • Page 18 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.1.5.2 DHCP Group Setup To reference the interface configuration on the DHCP server and view groups and clients to obtain address information, select Basic Setup>DHCP >DHCP Group Setup in the navigation bar. 【Parameters &...
  • Page 19 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.1.5.3 DHCP Client To set client binding and binding entries related to DHCP Clients, select Basic Setup>DHCP >DHCP Client in the navigation bar. 【Parameters & Descriptions】 Parameter Description DHCP Client Bind...
  • Page 20 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.1.5.4 DHCP Snooping To set the mode, enable DHCP Snooping, enable fast deletion, and provide the IP address of the DHCP server, select Basic Setup>DHCP >DHCP Snooping in the navigation bar. 【Parameters &...
  • Page 21 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.1.5.5 DHCP Option82 To review and configure settings related to DHCP Option82, such as to set the mode, enable DHCP option82, enable Device ID and set formats, select Basic Setup>DHCP >DHCP Option82 in the navigation bar. 【Parameters &...
  • Page 22 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.1.5.6 DHCP Relay To configure DHCP Relay globally and on ports, and set the maximum number of the hidden mode, select Basic Setup>DHCP >DHCP Relay in the navigation bar. 【Parameters &...
  • Page 23 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.1.5.7 DHCP Option60 To configure settings related to DHCP Option60, including the application Interface Name, Action, Matching mode, Gateway Address, Server, and Server Reply, select Basic Setup>DHCP >DHCP Option60 in the navigation bar. 【Parameters &...

  • Page 24: L2 Layer Application

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.2 L2 Layer Application Choose L2 Layer Application, and the following page appears. There are configuration web pages for VLAN, MAC Address Forwarding, Port Isolation, ERPS Protocol, LLDP Protocol, Static Multicast, Multicast, Link Aggregation and Anti Dos Attack.

  • Page 25: Vlan

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.2.1 VLAN To configure settings related to VLANs, including VLAN Status, VLAN Port, and IP Subnet VLAN, select L2 Layer Application>VLAN in the navigation bar. 【Information】...
  • Page 26 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.2.1.1 VLAN Status To set the VLAN List and add VID, select L2 Layer Application>VLAN>VLAN Status in the navigation bar. 【Parameters & Descriptions】 Parameter Description VLAN Status View all VLANs configured in the device.
  • Page 27 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.2.1.2 VLAN Port To set a VLAN port, select L2 Layer Application>VLAN>VLAN Port in the navigation bar. 【Parameters & Descriptions】 Parameter Description PVID The PVID of the port can be modified; the default port PVID is "1". AcceptFrameTypes Choose the following kinds: All, Tagged only and Untagged only.

  • Page 28: Mac Address Forwarding

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.2.1.3 IP Subnet VLAN To set the IP subnet VLAN priority, IP address/mask, VLAN, and priority, select L2 Layer Application>VLAN>IP Subnet VLAN in the navigation bar. 【Parameters &...
  • Page 29 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 【Parameters & Descriptions】 Parameter Description Types are: Static MAC, Dynamic MAC, Blackhole MAC, MAC Type Permanent MAC. 【Instructions】 Blackhole MAC: If a PC's MAC address is configured on a switch to be a blackhole MAC, then the PC's packets will be discarded by the switch and not forwarded to the network.

  • Page 30: Port Isolation

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.2.3 Port Isolation To set and delete the forwarding port, select L2 Layer Application>Port Isolation in the navigation bar. 【Parameters & Descriptions】 Parameter Description From Port, To Port Select the configured port range.

  • Page 31: Erps Protocol

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.2.4 ERPS Protocol To configure Global ERPS status, select L2 Layer Application>ERPS Protocol in the navigation bar. 【Parameters & Descriptions】 Parameter Description Global ERPS status Enable or Disable the ERPS function globally.

  • Page 32: Lldp Protocol

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.2.5 LLDP Protocol To enable or disable Global LLDP, Trap, set Hello-time or Hold-time, choose port(s), or choose the Mode and management address, select L2 Layer Application>LLDP Protocol in the navigation bar. 【Parameters &...

  • Page 33: Static Multicast

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.2.6 Static Multicast To set the MAC address, VLAN number, and port number, select L2 Layer Application>Static Multicast in the navigation bar. 【Parameters & Descriptions】 Parameter Description MAC Address...

  • Page 34: Multicast

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.2.7 Multicast To configure an IGMP Snooping Profile and IGMP Snooping, select L2 Layer Application>Multicast in the navigation bar. 4.2.7.1 IGMP Snooping Profile To set the Profile ID, set a configuration restriction, provide a configuration description, or set an input format, select L2 Layer Application>Multicast>IGMP Snooping Profile in the navigation bar.
  • Page 35 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.2.7.2 IGMP Snooping To enable the function, the querier or IGMP route port forwarding, or to configure other settings such as host timeout, Enable VLAN, Fast Leave, Multicast VLAN, Maximum Group Limit, and Filter Setting ID, select L2 Layer Application>Multicast>IGMP Snooping in the navigation bar.

  • Page 36: Link Aggregation

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.2.8 Link Aggregation For settings related to LACP and Link Aggregation Setup, select L2 Layer Application>Link Aggregation in the navigation bar. 4.2.8.1 LACP To set the system priority, load balancing policy, aggregation group number, and aggregation group mode, select L2 Layer Application>Link Aggregation>LACP in the navigation bar.
  • Page 37 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.2.8.2 Link Aggregation Setup To set the aggregation group ID, Port LACP mode, and port priority, select L2 Layer Application>Link Aggregation>Link Aggregation Setup in the navigation bar. 【Parameters &...

  • Page 38: Anti Dos Attack

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.2.9 Anti Dos Attack To set the maximum load length of ICMPv4, the maximum load length of ICMPv6, the minimum fragment size detection of iPv6, and minimum TCP header length of the first fragment of a TCP packet, select L2 Layer Application>Anti Dos Attack in the navigation bar.

  • Page 39: L3 Layer Application

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.3 L3 Layer Application Choose L3 Layer Application, and the following page appears. There are Static Route, RIP Setup and Arp Learning configuration web pages. 4.3.1 Static Route To set the destination IP address, IP mask, and next hop, select L3 Layer Application>Static Route in the navigation bar.

  • Page 40: Rip Setup

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.3.2 RIP Setup To set RIP Global Setup and RIP Interface Setup, select L3 Layer Application>RIP Setup.
  • Page 41 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.3.2.1 RIP Global Setup To configure RIP Mode, IP Address, Default Metric of Redistribute Routes, Metric, Aggregate Address, Static Route, Distance, Routing Table Update Timer, Routing Information Timeout Timer, Garbage Collection Timer, and so on, select L3 Layer Application>RIP Setup>RIP Global Setup in the navigation bar.
  • Page 42 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.3.2.2 RIP Interface Setup To configure RIP Interface Setup, select L3 Layer Application>RIP Setup>RIP Interface Setup in the navigation bar. 【Parameters & Descriptions】 Parameter Description MD5 Key ID Setting MD5 Key ID, ranges from 0 to 255.

  • Page 43: Arp Learning

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.3.3 Arp Learning To set the aging time, IP address, MAC address, VLAN, and Port, select L3 Layer Application>Arp Learning. 【Parameters & Descriptions】 Parameter Description Age Time The aging time, ranges from 3 to 2880 minutes.

  • Page 44: Security Application

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.4 Security Application Choose Security Application, and the following page appears. There are Broadcast Storm Control, Time Range, ACL and CoS Control configuration web pages. 4.4.1 Broadcast Storm Control To set values for broadcast, multicast, and unicast, select Security Application>Broadcast Storm Control in the navigation bar.

  • Page 45: Time Range

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.4.2 Time Range To set the time range name, time type, start period, and end period, select Security Application>Time Range in the navigation bar. 【Parameters &...

  • Page 46: Acl

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.4.3 ACL To set IP ACL, MAC ACL, Hybrid ACL and Policy Rule, select Security Application>ACL in the navigation bar. 4.4.3.1 IP ACL To set an IP name, Subitem, a Time Range, Active, IPv4/v6, IP Protocol, and DSCP/Tos, select Security Application>ACL>IP ACL in the navigation bar.
  • Page 47 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.4.3.2 MAC ACL To set the Name, Subitem, Time range, Active, Source MAC address, Destination MAC address, Priority, VLAN, and Ethernet Type, select Security Application>ACL>MAC ACL in the navigation bar. 【Parameters &...
  • Page 48 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.4.3.3 Hybrid ACL To set a Name, Subitem, Time Range, Active, IPv4/v6, Source MAC address, Destination MAC Address, Priority, and VLAN, select Security Application>ACL>Hybrid ACL in the navigation bar. 【Parameters &...
  • Page 49 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.4.3.4 Policy Rule To set Global/Port, IP-ACL, MAC-ACL, Hybrid-ACL, Active, DSCP, Priority, Redirect, Mirror, Rate Limit, Insert VLAN, and rewrite VLAN, select Security Application>ACL>Policy Rule in the navigation bar. 【Parameters &...

  • Page 50: Cos Control

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.4.4 CoS Control To set CoS MAP, DSCP MAP, Port MAP, and Queue Method, select Security Application>CoS Control in the navigation bar. 4.4.4.1 CoS MAP To set groups, priorities, queue types, and so on, select Security Application>CoS Control>CoS MAP in the navigation bar.
  • Page 51 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.4.4.2 DSCP MAP To set the DSCP status, Group, DSCP Value, and Queue Type, select Security Application>CoS Control>DSCP MAP in the navigation bar. 【Parameters & Descriptions】 Parameter Description DSCP Status...
  • Page 52 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.4.4.4 Queuing Method To set groups and modes, select Security Application>CoS Control>Queuing Method in the navigation bar. 【Parameters & Descriptions】 Parameter Description Mode There are five modes: SP, WRR, SP+WRR, WFQ, and SP+WFQ.

  • Page 53: Network Management

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.5 Network Management Choose Network Management, and the following page appears. There are Bandwidth Control, Mirroring, Remote Login and Http Status configuration web pages. 4.5.1 Bandwidth Control To set the port, Ingress Rate, and Egress Rate, select Network Management>Bandwidth Control in the navigation bar.

  • Page 54: Mirroring

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.5.2 Mirroring To set the mirror group, destination port, and direction, select Network Management>Mirroring in the navigation bar. 【Parameters & Descriptions】 Parameter Description Group Select mirror group.

  • Page 55: Remote Login

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.5.3 Remote Login To set the remote Settings and the maximum number of users, select Network Management>Remote Login in the navigation bar. 【Parameters & Descriptions】 Parameter Description Select whether to enable remote Settings (after Telnet is enabled...

  • Page 56: Device Management

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.6 Device Management Choose Device Management, and the following page appears. There are Management & Maintenance, Diagnostic, Syslog, Alarm, PoE Setup, PDM, MTU Setup, SLF, SNMP and RMON configuration web pages. 4.6.1 Management &...

  • Page 57: Diagnostic

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.6.2 Diagnostic In the navigation bar, select Device Management>Diagnostic. Click the display button to display the system log; click the Clear button to clear system logs. 4.6.3 Syslog To enable the log function and the log function of the corresponding module globally, and to set the log server address and log level, select Device Management>Syslog in the navigation bar.

  • Page 58: Alarm

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.6.4 Alarm To set a CPU alarm, Busy and Unbusy thresholds, Activation, traffic overload and normal traffic thresholds, select Device Management>Alarm in the navigation bar. 【Parameters &...

  • Page 59: Poe Setup

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.6.5 PoE Setup To set relevant parameters for PoE, select Device Management>PoE Setup in the navigation bar. 【Parameters & Descriptions】 Parameter Description Power Limit The PoE power supply of a switch can be limited.

  • Page 60: Pdm (Powered Device Monitor)

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.6.6 PDM (Powered Device Monitor) To set relevant parameters for the PDM function, select Device Management>PDM in the navigation bar. 【Parameters & Descriptions】 Parameter Description PDM Enable Enable or Disable the PDM for a port.

  • Page 61: Mtu Setup

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.6.7 MTU Setup To set relevant parameters for MTU, select Device Management>MTU Setup in the navigation bar. 【Parameters & Descriptions】 Parameter Description MTU Config Set MTU value, range is from 1522 to 12288.

  • Page 62: Snmp

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.6.9 SNMP To set global SNMP, SNMP community, SNMP host, SNMP group, and SNMP user, select Device Management>SNMP in the navigation bar. 4.6.9.1 SNMP Enable To enable or disable the function, set the switch system name, administrator information, switch location, maximum packet length, local engine ID, remote engine ID, remote host IP address, and remote udp port, select Device Management>SNMP>SNMP Enable in the navigation bar.
  • Page 63 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.6.9.2 SNMP Community To set the community name, read/write permission, and activation, select Device Management>SNMP>SNMP Community in the navigation bar. 【Parameters & Descriptions】 Parameter Description Community character string, equivalent to the communication Community...
  • Page 64 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.6.9.4 SNMP Group To set the group name, security level, device context, notification view name, read access view name, and write access view name, select Device Management>SNMP>SNMP Group in the navigation bar. 【Parameters &...

  • Page 65: Rmon

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.6.10 RMON To set statistics group, history group, event group, and alarm group, select Device Management>RMON in the navigation bar. 4.6.10.1 Statistics Group To set ports, statistics groups, owners, and so on, select Device Management>RMON>Statistics Group in the navigation bar.
  • Page 66 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.6.10.2 History Group To set ports, history groups, number of records, sampling intervals, owners, and so on, select Device Management>RMON>History Group in the navigation bar. 【Parameters &...
  • Page 67 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.6.10.3 Event Group To set Event Groups, Descriptions, Event Types, Owners, and so on, select Device Management>RMON>Event Group in the navigation bar. 【Parameters & Descriptions】 Parameter Description Event Group...
  • Page 68 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.6.10.4 Alarm Group To set an Alarm Group, Object ID, Sampling Interval, Sampling Type, Rise Threshold, Rise Event Group, Fall Threshold, Fall Event Group, and Owner, select Device Management>RMON>Alarm Group in the navigation bar. 【Parameters &...

  • Page 69: Spanning Tree Protocol

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.7 Spanning Tree Protocol Choose Spanning Tree Protocol, and the following page appears. There are STP Status, MSTP and STP Status configuration web pages. 4.7.1 STP Status To set the generated tree mode and global spanning tree state, select Spanning Tree Protocol>STP Status in the navigation bar.

  • Page 70: Mstp

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.7.2 MSTP To set MSTP global, MSTP instance, MSTP port, MSTP instance port, and MSTP guard, select Spanning Tree Protocol>MSTP in the navigation bar. 4.7.2.1 MSTP Global To set the sending period, maximum aging time, forwarding delay, timeout factor, maximum hop count, area modification level, and area name, select Spanning Tree Protocol>MSTP>MSTP Global in the navigation bar.
  • Page 71 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.7.2.2 MSTP Instance To set the instance ID, bridge priority, and VLAN list, select Spanning Tree Protocol>MSTP>MSTP Instance in the navigation bar. 【Parameters & Descriptions】 Parameter Description Instance...
  • Page 72 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.7.2.4 MSTP Instance Port To set the instance number, port priority, internal path cost, etc., select Spanning Tree Protocol>MSTP>MSTP Instance Port in the navigation bar. 【Parameters &...
  • Page 73 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.7.2.5 MSTP Guard To set BPDU filtering, BPDU protection, loop protection, and root protection for a port, select Spanning Tree Protocol>MSTP>MSTP Guard in the navigation bar. 【Parameters &...

  • Page 74: Stp/Rstp

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.7.3 STP/RSTP To set the bridging priority, sending period, maximum aging time, forwarding delay, timeout factor, enable/disable, priority, path cost, link type, and boundary status, select Spanning Tree Protocol>STP/RSTP in the navigation bar. 【Parameters &...

  • Page 75: System Management

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.8 System Management Choose System Management, and the following page appears. There are Ping and CPU Statistics configuration web pages. 4.8.1 Ping To set the Ping type, destination address, number of packets, and timeout period, select System Management>Ping in the navigation bar.

  • Page 76: Cpu Statistics

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 4.8.2 CPU Statistics To check the CPU idle rate to learn the data packets, broadcast, multicast, unicast, and byte information of each port, select System Management>CPU Statistics in the navigation bar. 【Parameters &...

  • Page 77: Appendix: Technical Specifications

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 5 Appendix: Technical Specifications Hardware Specifications IEEE 802.3i, IEEE 802.3u, IEEE 802.3az, IEEE 802.3af, IEEE 802.3ae, Standards and Protocols IEEE 802.3at, IEEE 802.3z, IEEE 802.3x 10Base-T: UTP category 3, 4, 5 cable (maximum 100 m) 100Base-Tx: UTP category 5, 5e cable (maximum 100 m) Network Media...
  • Page 78 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual Software Specification L2 Function L3 Function Security Policy • Ethernet Set • IP interface • count • STP/RSTP/MSTP • ARP proxy • ACL • Storm-suppression •...

  • Page 79: Additional Information

    54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual 6 Additional Information 6.1 WASTE ELECTRICAL & ELECTRONIC EQUIPMENT DISPOSAL OF ELECTRIC AND ELECTRONIC EQUIPMENT (Applicable In the E.U. and Other European Countries With Separate Collection Systems) ENGLISH: This symbol on the product or its les déchets d’équipements électriques et packaging means that this product...

  • Page 80: Warranty

    Go to Intellinet-network.com EN MÉXICO: Póliza de Garantía Intellinet Network Solutions — Datos del importador y responsable ante el consumidor • IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P.
  • Page 81 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks User Manual ENGLISH : This device complies with the requirements of CE 2014/30/EU (UKCA Electromagnetic Compatibility Regulations 2016) and / or 2014/35/EU (UKCA Electrical Equipment [Safety] Regulations 2016). The Declaration of Conformity for is available DEUTSCH : Dieses Gerät enspricht der CE 2014/30/EU und / oder 2014/35/EU.
