NTDP CONFIGURATION

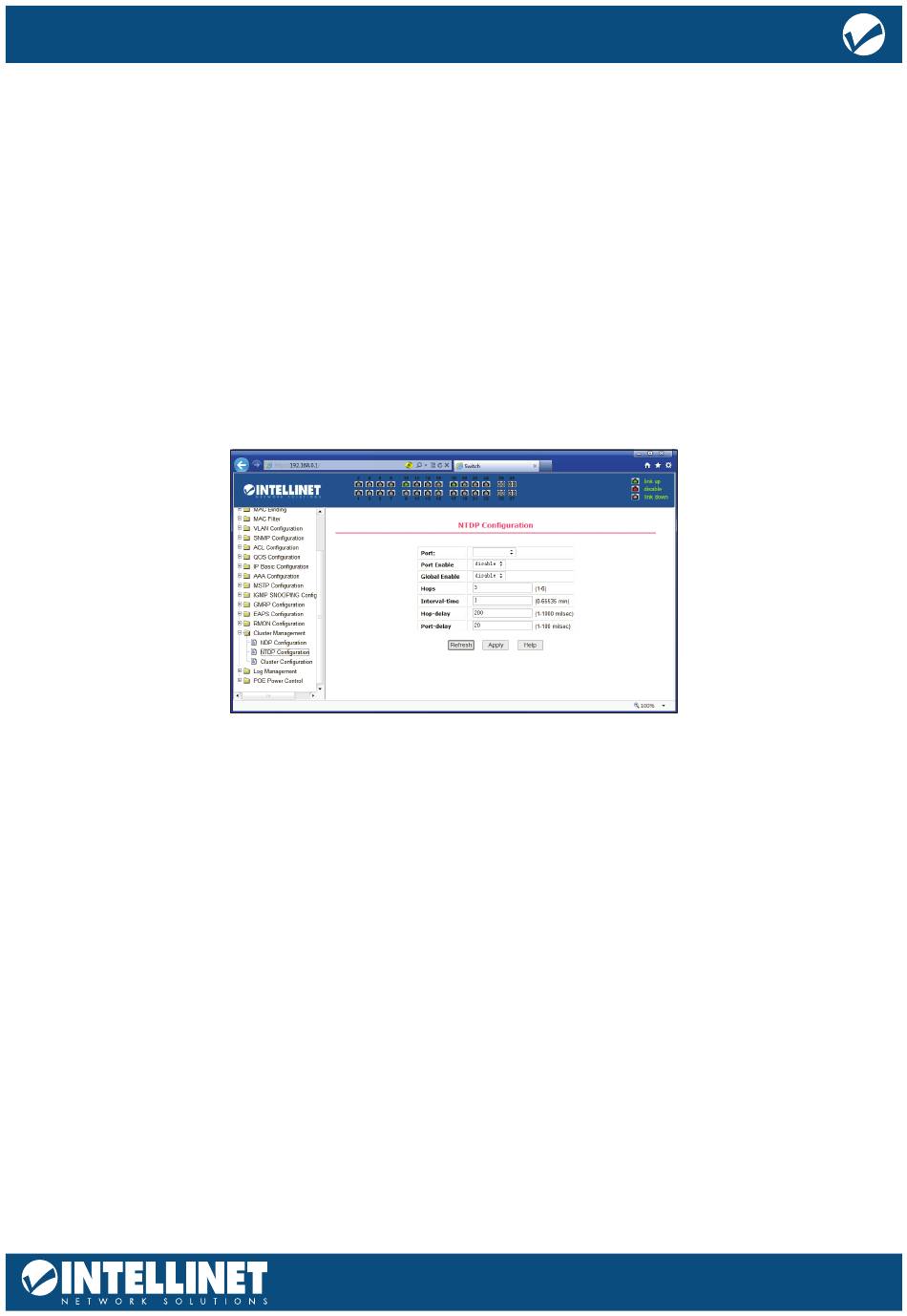

The following image shows the NTDP configuration page.
The information that can be set includes:
• Selecting the port (for port selection, select the port as required and enable the port NDP function)
• Enabling the NTDP function of the port (both global and port NDP must be enabled)
• Enabling the global NTDP function (both global and port NDP must be enabled)
• Entering the range of the topology collection (range is 1 – 6; the default is 3)
• Entering the time interval of collecting the regular topology (range
is 0 – 65535 minutes; the default is 1 minute)
• Entering the delay time of the first port forwarding the packet (range
is 1 – 1000 milliseconds; the default is 200 milliseconds)
• Entering the forwarding of the packet by other ports (range is 1
– 100 milliseconds; the default is 20 milliseconds)

CLUSTER CONFIGURATION

The following image shows the cluster configuration page. The information that can be set includes:
• Enabling the cluster function
• Configuring the management VLAN (range is 1 – 4094; the default is vlan1)
• Entering the address pool of the cluster (range of IP addresses is 0.0.0.0
– 255.255.255.255; range of the mask length is 0 – 32)
• Entering the interval for sending handshake packets (range is 1 – 255 seconds; the default is 10 seconds)
• Entering the effective retention time of the device (range is 1 – 255 seconds; the default is 60 seconds)
• Entering the name of the cluster (self-explanatory)
• Entering the way to join the cluster (manual or automatically)
After a cluster is established, member devices and candidate devices can be viewed in the cluster member
table. You can delete member devices or add candidate devices to member devices according to roles.
