User Manual

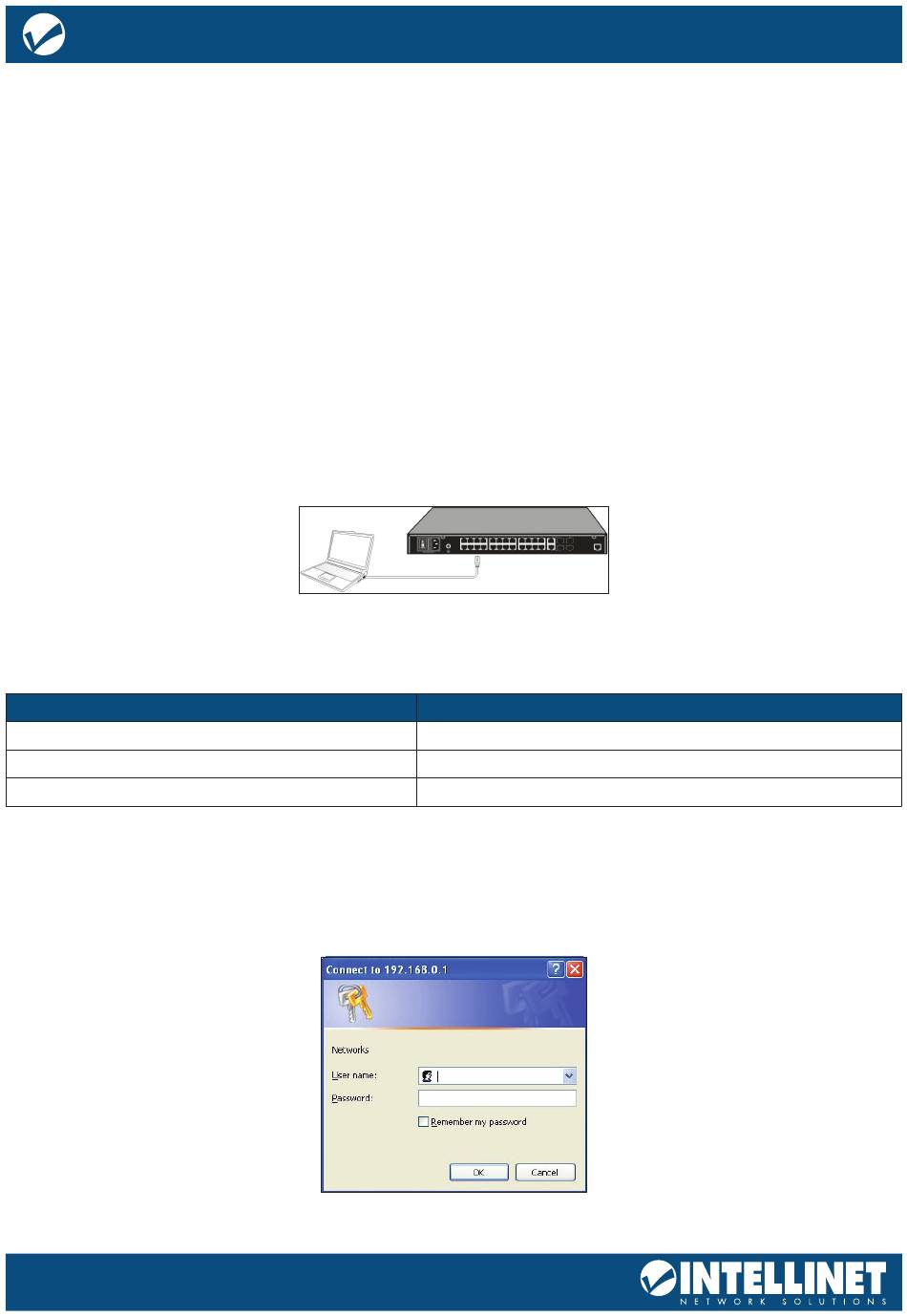

POWER ON THE SWITCH

Connecting the switch to an outlet using the AC 100-240 V, 50/60 Hz internal high-performance
power supply.
AC Electrical Outlet
Use a single-phase, three-wire receptacle with a neutral outlet or multifunctional professional receptacle. Be
sure to connect the metal ground connector to the grounding source on the outlet.
AC Power Cord Connection
Connect the AC power connector on the back panel of the switch to an external receptacle with the included
power cord, and then check that the power indicator is ON. When it is ON, the corresponding LED lights.

CONNECTION TO THE SWITCH

CONNECTING TO A COMPUTER

Use standard network cable to connect the switch to end nodes as described below. Switch ports will
automatically adjust to the characteristics (MDI/MDI-X, speed, duplex) of the device they are connected to.
The LNK/ACT/Speed LEDs for each port are illuminated when the link is available.

HOW TO LOG IN TO THE SWITCH

This switch provides Web-based management, This section describes how to configure the switch. The
default settings of the switch are shown below.
Parameter
Default IP address
Default Username
Default Password
Log on to the configuration window of the switch through following steps:
1. Connect the switch with the computer NIC interface.
2. Power on the switch.
3. Check whether the IP address of the computer is within this network segment: 192.168.0.xxx ("xxx"
range is 2-254); for example, 192.168.0.100.
Open the browser, and go to the URL http://192.168.0.1 to access the switch login window, as shown below.
8
Gigabit Ethernet PoE+ Web-Managed AV Switch
Default Value
192.168.0.1
admin
Switch serial number — find in label on switch underside
