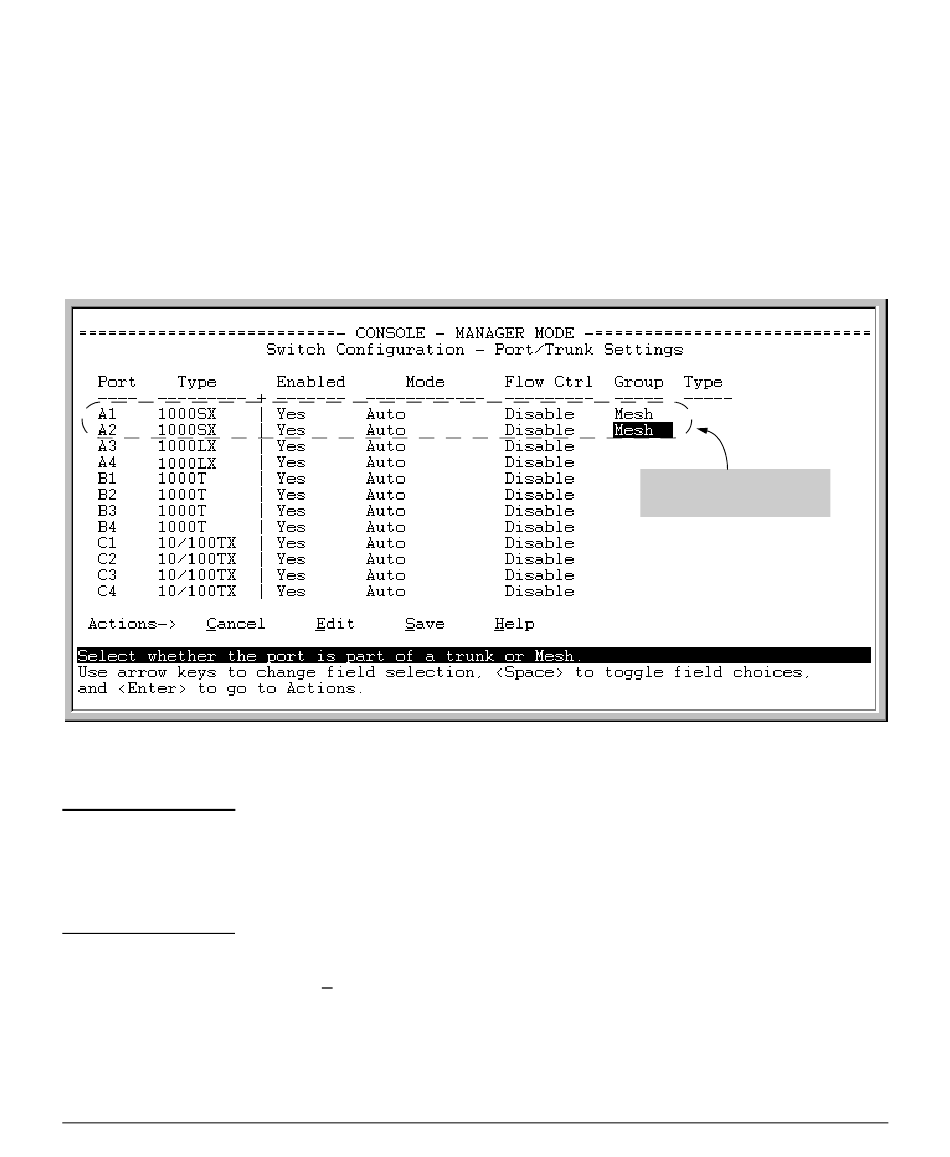

Figure 4-7. Example of Mesh Group Assignments for Several Ports
N o t e s
3. In the Group column, move the cursor to the port you want to assign to
the switch mesh.
Press [M] to choose Mesh for the selected port.
4.
Use the up-arrow or down-arrow key to select the next port you want to
5.
include in your mesh domain, then press
were adding ports A1 and A2 to your mesh domain, the screen would
appear similar to figure 4-7:
6. Repeat step 5 for all ports you want in the mesh domain.
For meshed ports, leave the Type setting blank. (Meshed ports do not accept
a Type setting.)
All meshed ports in the switch automatically belong to the same mesh domain.
(See figure 4-2 on page 4-3.)
When you finish assigning ports to the switch mesh, press [Enter], then [S]
7.
(for Save). You will then see the following screen.
Switch Meshing
Configuring Switch Meshing
again. For example, if you
[M]
Ports A1 and A2 configured
for meshing.
