Assembly Instructions

1

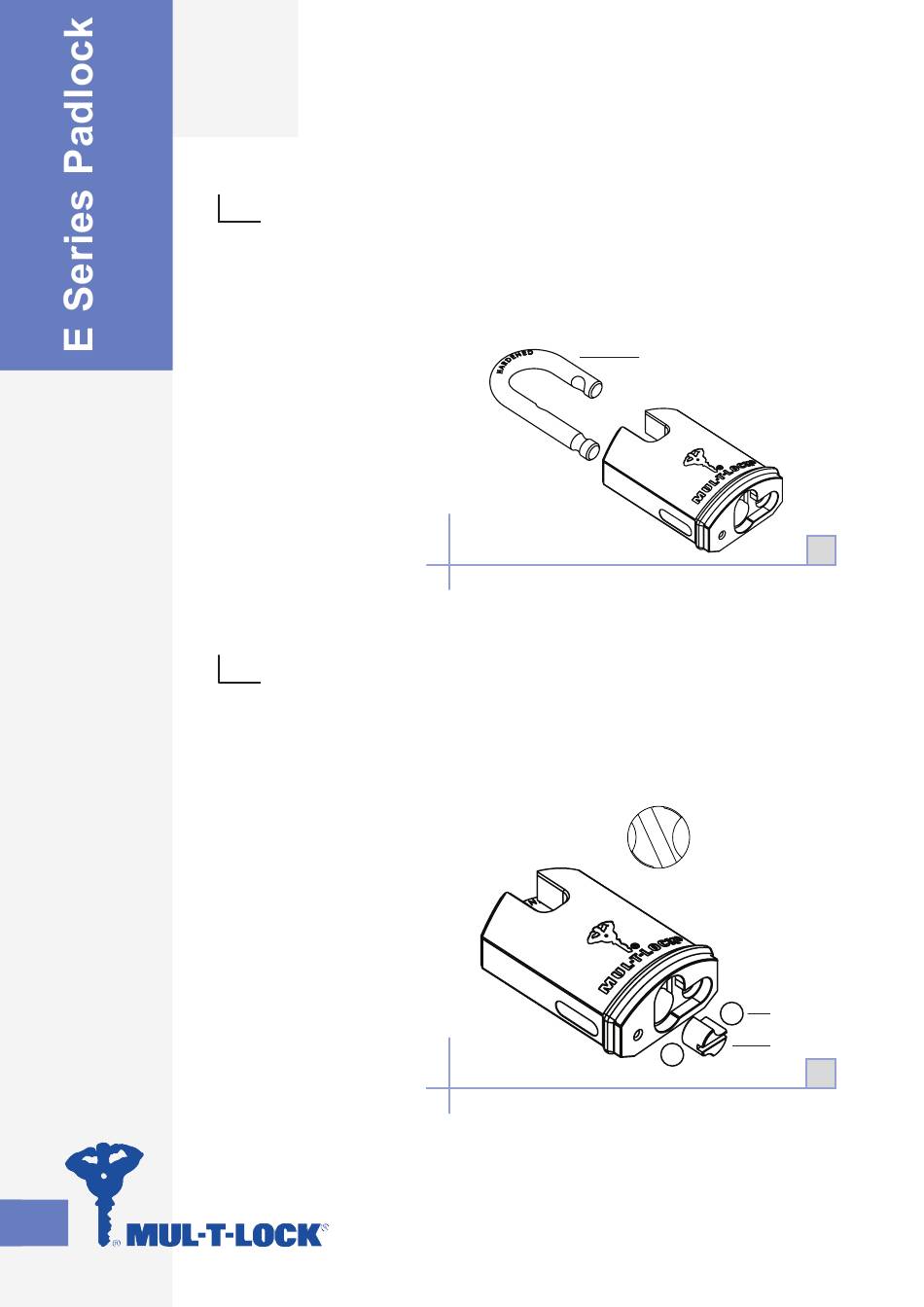

Insert shackle (2) in the position as illustrated.
NOTE: Pay special attention to shackle
position (height and rotation)!
2
Insert two ball bearings (9).
Insert activator cam (3) in shown position.
NOTE: Activator cam (3) is not symmetrical.
See diagram 3-A.
Protected shackle / Assembly Instructions
2
1
3-A
Smaller
groove
toward the
longer leg of
the shackle
9
3
2
